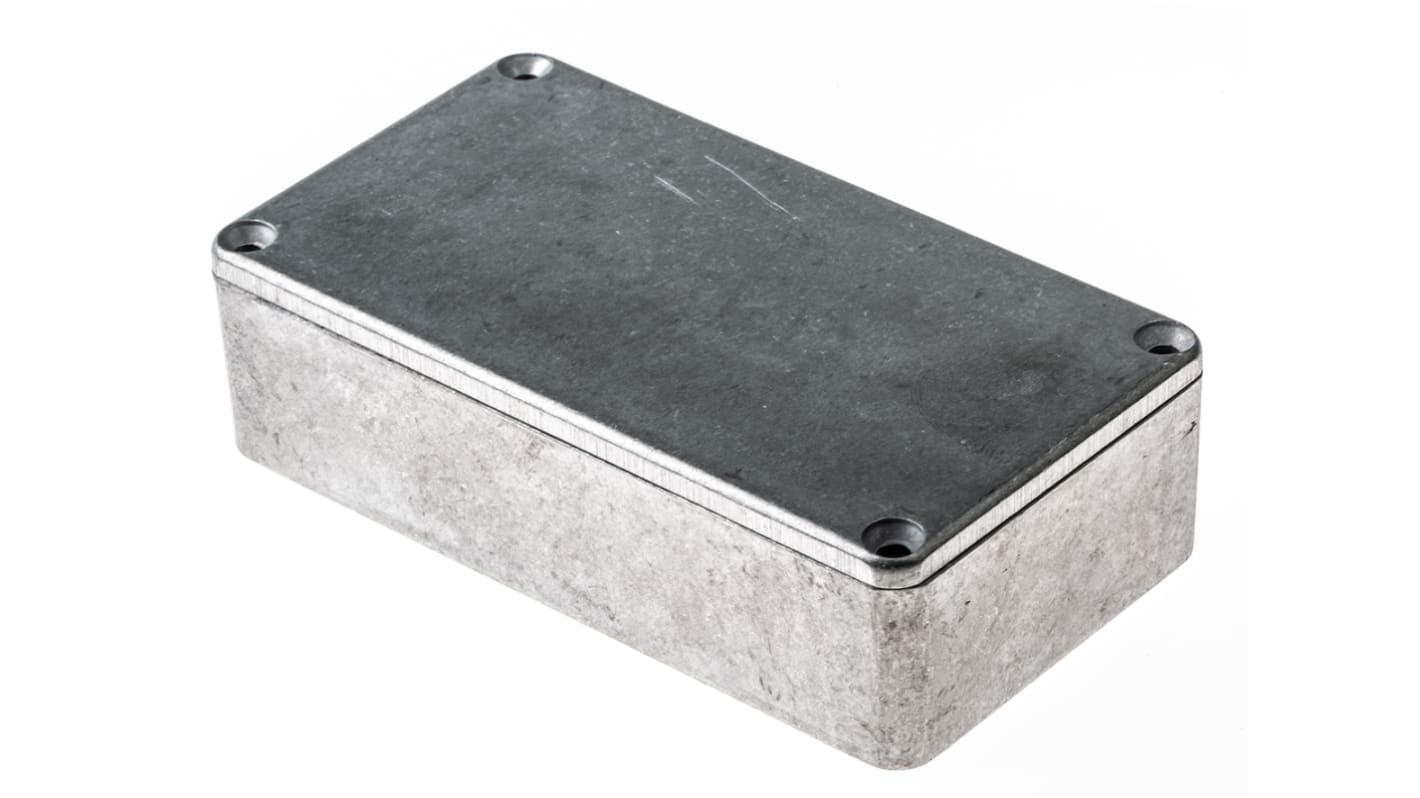

Hammond 1590 Aluminium Enclosure, IP54, 112.4 x 60.5 x 31mm

  • RS Stock No. 343-9524
  • Mfr. Part No. 1590B
  • Manufacturer Hammond
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

IP54 Diecast Enclosures

The Hammond 1590 series is a rugged diecast aluminium alloy enclosure suitable for electronic instruments which is tough, yet easy to machine. It has a lap joint construction which provides IP54 protection against dust and splashing water and also provides improved EMI/RFI shielding. The enclosure, also known as a Stomp Box, is available in a rectangular, trapezoidal or octagonal design.

Features and Benefits:

• Rugged, diecast aluminium alloy, tough yet easy to machine
• Lap joint construction provides IP54 protection against dust and splashing water also provides improved EMI/RFI shielding
• Vibra finished for a smooth surface with no sharp edges
• Four or six, depending on size of enclosure, 6-32 x 1/2 in. stainless steel machine screws secure lid into factory tapped holes
• Low side wall draft angle (2° or less) for easy PC board mounting

FAQ:

What does IP rating means?

The IP rating is used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc) and moisture. For more information please, visit SOLUTIONS section at the top of the page or click on Selection Guide of an Enclosures.

What is supplied?

• An enclosure with a lid • Color matched screws

Note

Dimensions do not include the lid and exclude flanges (add 4mm to height for the lid)

Specifications
Attribute Value
Body Material Die Cast Aluminium
External Length 112.4 mm
External Height 31 mm
External Width 60.5 mm
External Dimensions 112.4 x 60.5 x 31mm
IP Rating IP54
Lid Colour Unpainted
Series 1590
3 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 39.68
units
Per unit
1 - 14
MYR39.68
15 - 49
MYR38.86
50 - 99
MYR38.45
100 +
MYR38.05
