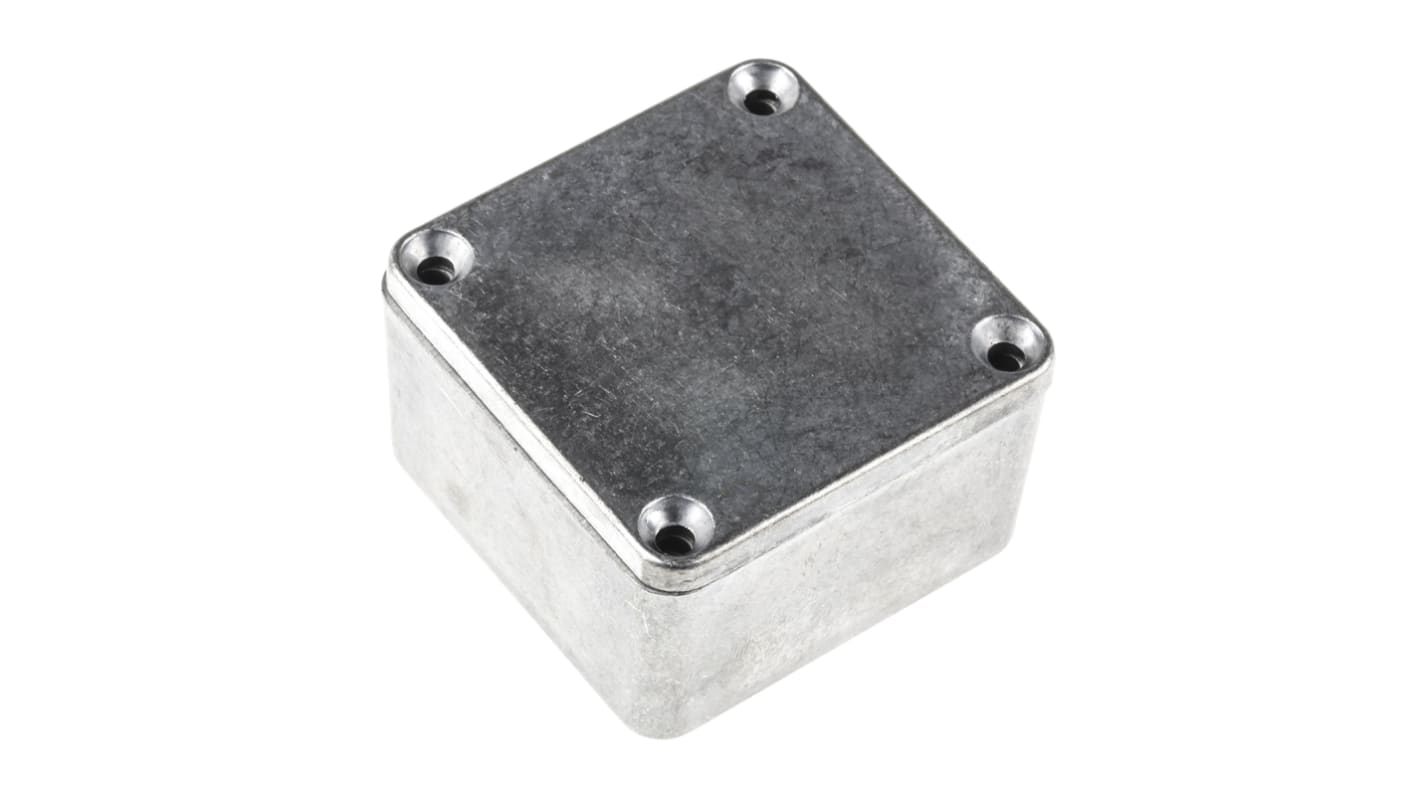

Hammond 1590 Series Natural Die Cast Aluminium Enclosure, IP54, Natural Lid, 50.5 x 50.5 x 31mm
- RS Stock No.:
- 343-9495
- Mfr. Part No.:
- 1590LB
- Manufacturer:
- Hammond
145 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR35.04
| Units | Per Unit |
| 1 - 49 | MYR35.04 |
| 50 - 99 | MYR34.30 |
| 100 + | MYR33.26 |
- RS Stock No.:
- 343-9495
- Mfr. Part No.:
- 1590LB
- Manufacturer:
- Hammond
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CA
Product Details
Hammond Enclosure, 51 (L) x 51 (W) x 31mm (H), Shielded, Screw-On Lid - 1590 Series - 1590LB
Working in challenging conditions? Safely store your board-mounted system in this enclosure from Hammond. It provides IP54-rated protection, blocking out dust and splashed water to cut back on damage caused by corrosion. AS it measures up at just 51 (L) x 51 (W) x 31mm (H), the box slips neatly into busy setups. Ribless inner walls mean cutting connector entry ports for your components is no trouble. As the enclosure shields against high EMI levels, there's no need to worry about electrical noise causing disturbance.
Features & Benefits
• Screw-on lid can be removed quickly if you need regular access to your equipment
• Pre-tapped screw holes on the cover minimise preparation time and speed up installation
• Made from resilient die-cast aluminium that resists corrosion to stay strong in moist settings
• Non-transparent lid covers sensitive devices to cut the risk of tampering
• Pre-tapped screw holes on the cover minimise preparation time and speed up installation
• Made from resilient die-cast aluminium that resists corrosion to stay strong in moist settings
• Non-transparent lid covers sensitive devices to cut the risk of tampering
Applications
• Woodworking
• Server management
• Aerospace industry
• Server management
• Aerospace industry
Do I need to do any finishing work on this unit before installing it?
No, this enclosure comes pre-finished with smooth edges, so it's ready to slot into your system straight away.
Specifications
Attribute | Value |
|---|---|
| Body Material | Die Cast Aluminium |
| External Length | 50.5 mm |
| External Height | 31 mm |
| External Width | 50.5 mm |
| External Dimensions | 50.5 x 50.5 x 31mm |
| Range | 1590 |
| IP Rating | IP54 |
| Colour | Natural |
| Lid Colour | Natural |
| Flanged | No |
| Shielded | Yes |
| Series | 1590 |
| Number Of Knockouts | 0 |
| Weight | 66g |
| Transparent Door | No |
| Explosion Proof | No |
