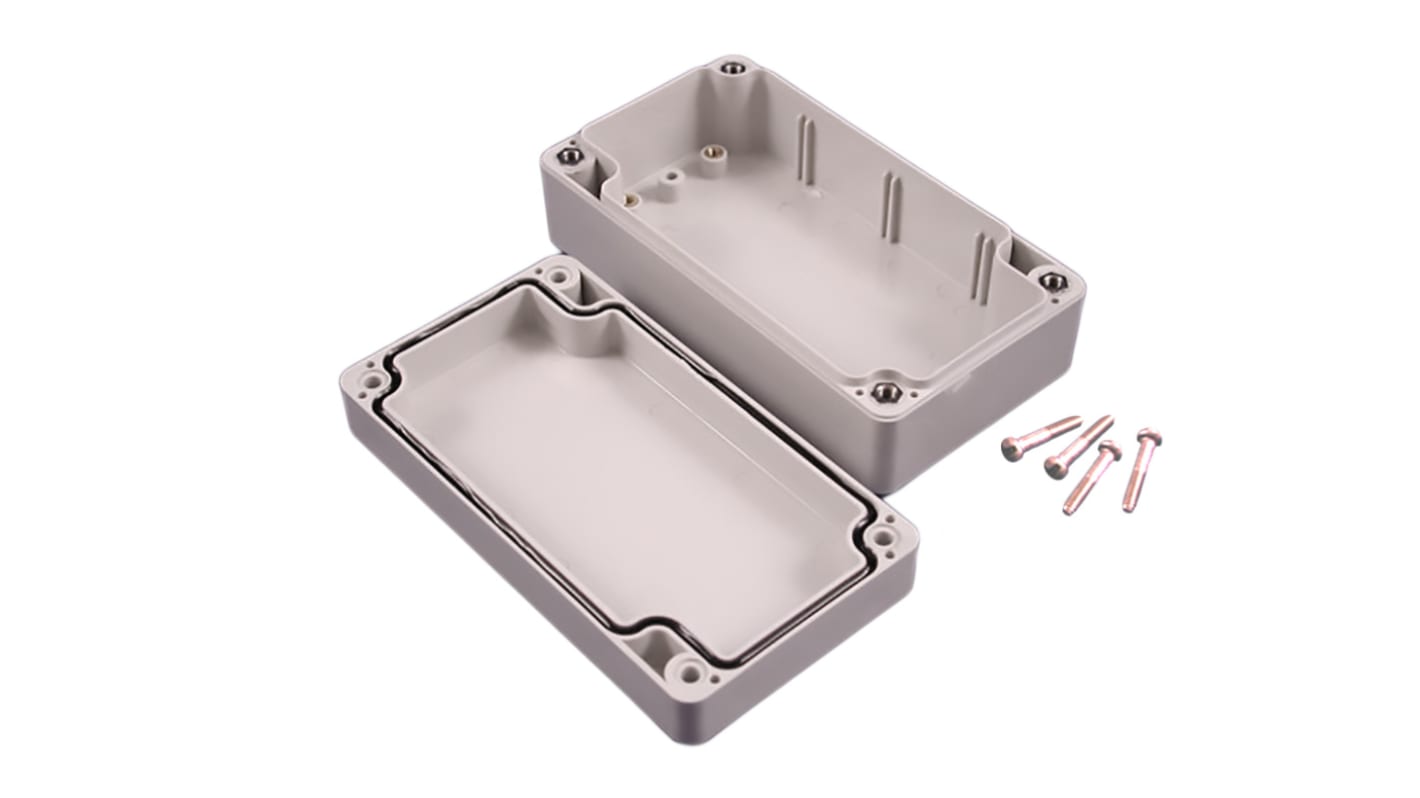

Hammond 1554 Series Light Grey, Clear Polycarbonate, ABS Enclosure, IP66, IP68 88.9 mm, 200.7 mm, 119.4 mm
- RS Stock No.:
- 230-6482
- Mfr. Part No.:
- 1554U2GYCL
- Manufacturer:
- Hammond
Bulk discount available
Subtotal (1 unit)*
MYR141.62
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 - 4 | MYR141.62 |
| 5 - 9 | MYR136.65 |
| 10 - 14 | MYR129.58 |
| 15 - 19 | MYR122.50 |
| 20 + | MYR115.40 |
*price indicative
- RS Stock No.:
- 230-6482
- Mfr. Part No.:
- 1554U2GYCL
- Manufacturer:
- Hammond
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Product Type | Enclosure | |
| Body Material | Polycarbonate, ABS | |
| External Height | 88.9mm | |
| External Length | 200.7mm | |
| External Width | 119.4mm | |
| IP Rating | IP66, IP68 | |
| Colour | Light Grey, Clear | |
| Hazardous Area Certification | cUL, UL | |
| Series | 1554 | |
| Internal Mount Type | DIN Rail | |
| Standards/Approvals | UL94V-0, UL94-HB, UL94-5VA | |
| Transparent Door | Yes | |
| Gasket Material | Silicone | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Product Type Enclosure | ||
Body Material Polycarbonate, ABS | ||
External Height 88.9mm | ||
External Length 200.7mm | ||
External Width 119.4mm | ||
IP Rating IP66, IP68 | ||
Colour Light Grey, Clear | ||
Hazardous Area Certification cUL, UL | ||
Series 1554 | ||
Internal Mount Type DIN Rail | ||
Standards/Approvals UL94V-0, UL94-HB, UL94-5VA | ||
Transparent Door Yes | ||
Gasket Material Silicone | ||
- COO (Country of Origin):
- CA
The Hammond 1554 series watertight PC enclosure, clear lid of PCB or DIN mounting enclosures provide the user with a robust product which can be used in a variety of applications. Ingress of oil, dust & water is significantly reduced thanks to a "Tongue & Groove" two piece casketed lid affixing method. Lid is secured with included M4 stainless steel machine screws which are threaded into corrosion resistant bushings for repetitive assembly & disassembly
Ideally suited for mounting printed circuit boards or DIN rail mounted components (see photo features below for details)
ABS Versions are molded from general purpose material which carries a flammability rating of UL94-HB.For indoor use
Enclosure colour is a light grey (RAL 7035)
Casketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust and water
Replaceable gasket is one piece made from high temperature, U.L. listed silicone. Supplied loose inside the enclosure (not pre-installed)
Polycarb versions are designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 ratings which meet and exceed IP ratings up to and including IP68.(Except 1554/55 V size which is 4,4X only)
ABS Plastic versions are designed to meet IP67
