RS PRO Light Grey ABS, Polycarbonate Enclosure, IP68, Flanged, 105 x 70 x 40mm

  • RS Stock No. 192-0727
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PL
Product Details

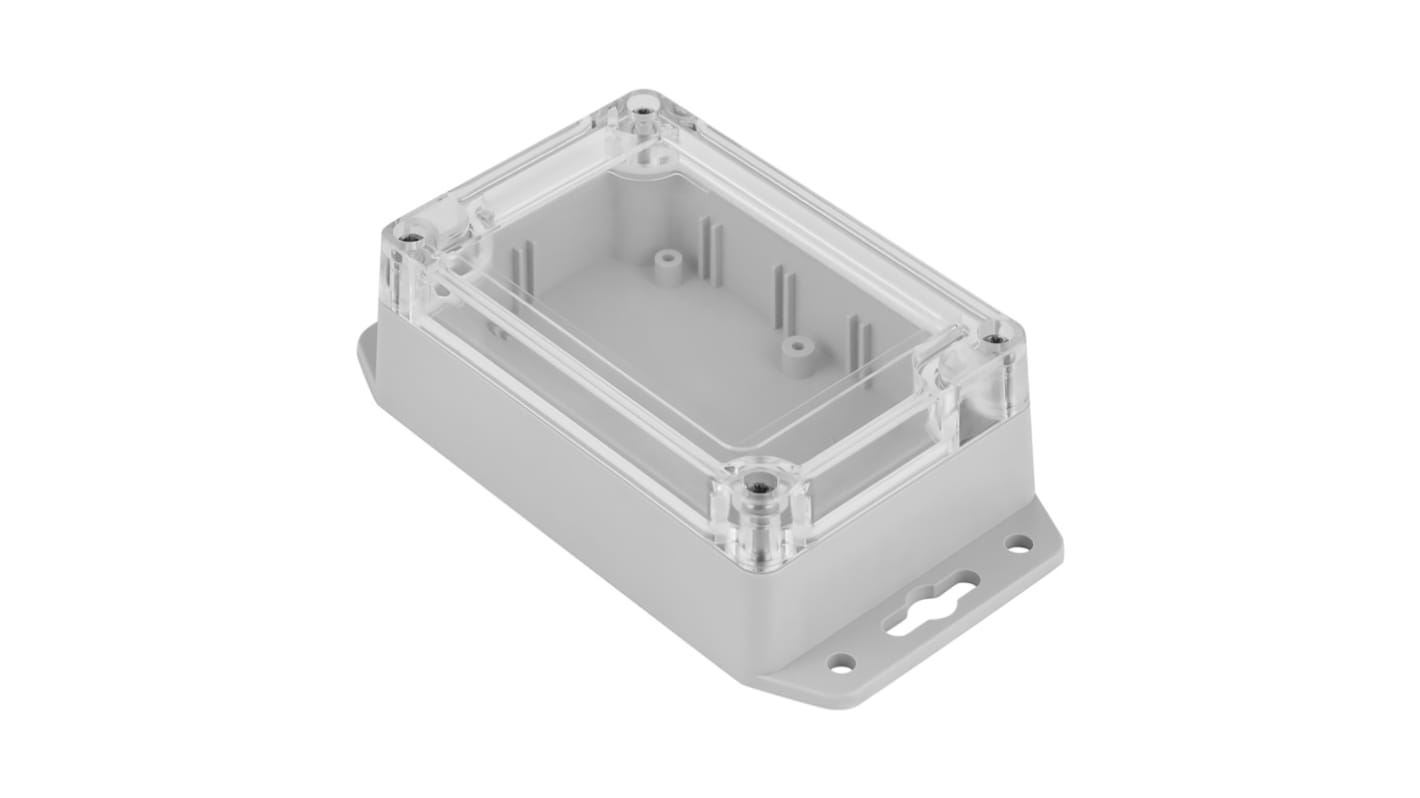

RS PRO Hermetically Sealed Enclosure with Clear Lid for Wall Mounting, IP68, IK07

Introducing mountable hermetically sealed general purpose enclosures from our own brand RS PRO, a range of enclosures ideal for housing and protecting internal electrical parts and components. The base of this general purpose protective enclosure is manufactured from ABS plastic, with a lid manufactured from PC (Polycarbonate), offering excellent durability, electrical insulation and shock absorbance.

This two part durable enclosure offers an IP68 rating ensuring protection from water and dust ingress, whilst IK07 protection provides enhanced shock absorbent properties. The lid can be securely attached to the base via thread brass inserts, ensuring easy and reliable assembly. The transparent lid also allows you to view internal components without having to open the enclosure, making it ideal for troubleshooting. This compact yet versatile enclosure also features mounting tabs, allowing you to install the enclosure to a wall or other surface.

Features and benefits

• Manufactured using Polycarbonate and ABS, offering excellent electrical insulation and shock absorbance
• Neutral light grey colour base, ideal for general purpose use in a range of environments
• Transparent lid, perfect for viewing internal components without having to open the enclosure
• IP68 rating offering protection from water and dust ingress
• IK07 protection offering protection from excessive shock
• Threaded brass inserts for secure and reliable assembly
• Wall mount tabs allowing you to secure the enclosure to a wall or surface

Application

General purpose enclosures are a type of protective casing ideal for housing electrical parts and components. They are manufactured from a range of materials including aluminium and plastic and are available in a variety of sizes depending on the application required. ABS general purpose enclosures are commonly used in applications including:

• Remote control systems
• Radio instrumentation
• Keypads
• Display boards
• Entry system controls

FAQs

What is included?

This durable enclosure from RS PRO is supplied with:

• ABS base
• Polycarbonate lid
• Four screws
• Silicon gasket

What is an IP rating?

IP (Ingress Protection) levels refer to the level of protection materials such as an electrical enclosure has against solids such as dust, debris and liquids. The first digit identifies the level of protection from a physical intrusion whereas the second digit identifies the level of protection from water and other liquids. A lower IP rating (such as IP54 offers protection from limited dust ingress whereas a high IP rating such as IP78 can offer complete dust proof protection plus a continuous level of protection underwater.

This enclosure features an IP68 rating, offering protection from dust ingress and water.

If I modify the enclosure will the IP rating remain the same?

Any modifications made to the enclosure will subsequently reduce the IP protective level.

Can this enclosure be used outdoors?

Although this enclosure offers protection from water, it is not recommended for use outdoors.

Specifications
Attribute Value
Body Material ABS, Polycarbonate
External Length 131.3 mm
External Height 40 mm
External Width 71.3 mm
External Dimensions 105 x 70 x 40mm
IP Rating IP68
Colour Grey
Lid Colour Transparent
Flanged Yes
IK Rating IK07
Gasket Material Silicone
12 Within 4 working day(s) (Global stock)
46 Within 4 working day(s) (Global stock)
Price Each
MYR 48.56
units
Per unit
1 +
MYR48.56
