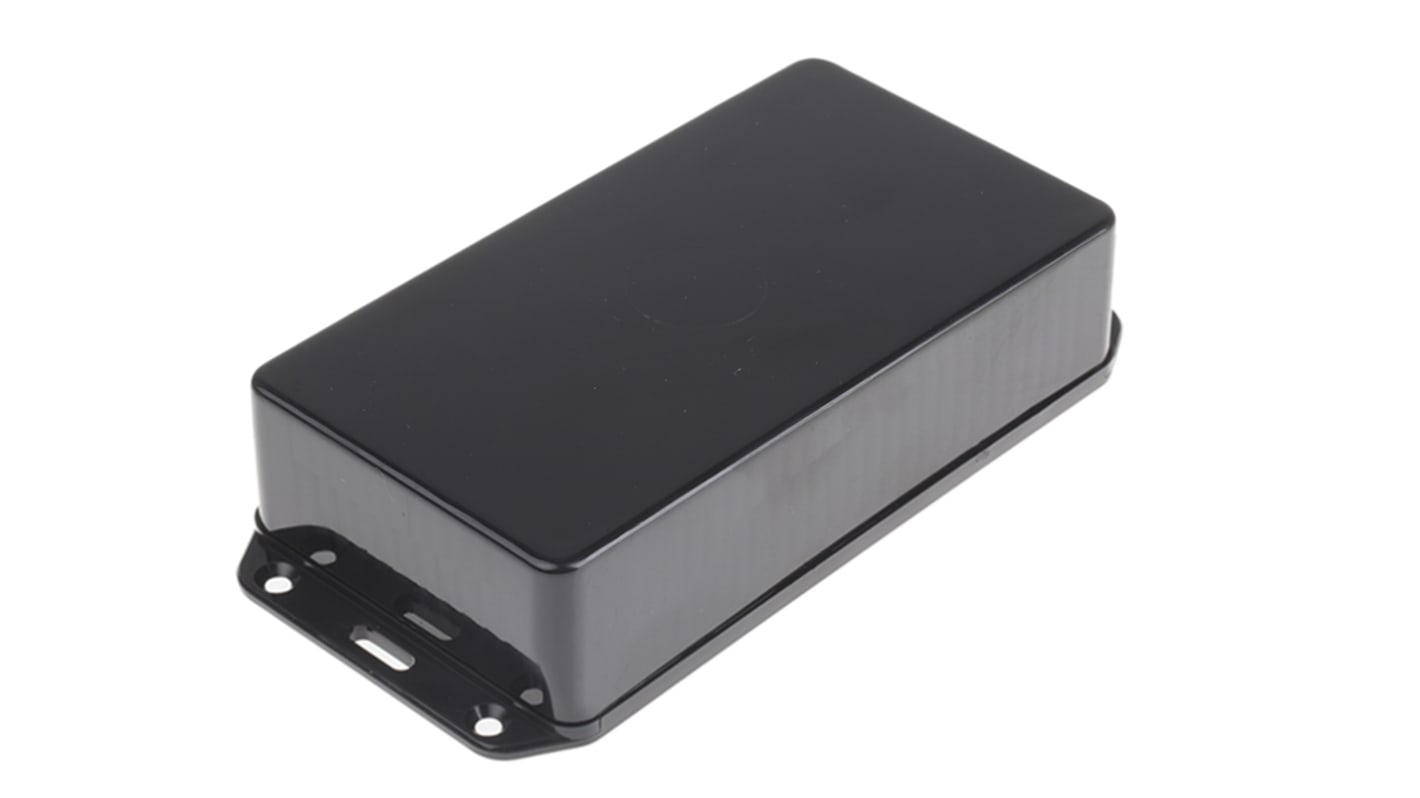

RS PRO Black ABS Enclosure, IP65, Flanged, Black Lid, 167.14 x 84.14 x 31mm
- RS Stock No.:
- 153-3701
- Manufacturer:
- RS PRO
Temporarily out of stock - back order for despatch 19/06/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR57.11
| Units | Per Unit |
| 1 - 14 | MYR57.11 |
| 15 - 74 | MYR55.50 |
| 75 + | MYR45.68 |
- RS Stock No.:
- 153-3701
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
RS PRO Black ABS Enclosure
Get the very best in enclosures with the RS PRO black series. Our enclosures are made from high-impact ABS with protection from dust and water ingress. Upon inspection, the enclosure has a flanged lid mounted by four M3 machine screws, plastic standoffs in the lid for PCB mounting and a polished finish.
Inside you will find integral mounting guides to accept 1.6 mm PCBs and a
PCB adaptor can be used when horizontal mounting is required. During operation, these enclosures are resistant to temperatures of up to 80°C and come with an IP54 rating
Inside you will find integral mounting guides to accept 1.6 mm PCBs and a
PCB adaptor can be used when horizontal mounting is required. During operation, these enclosures are resistant to temperatures of up to 80°C and come with an IP54 rating
Why would you choose this enclosure?
The RS PRO black ABS enclosure series is perfect for applications that require surface mounting and protection. They provide extra security once mounted by restricting access to the screws in the lid.
Features and Benefits
- Lid and base high-impact ABS
- Lid mounted by M3 machine screws
- Black polished finish
- Excellent properties for machining
- Integral mounting guides to accept 1.6mm PCBs
- Plastic standoffs in the lid
- Operating temperature: Up to 80°C
- IP Rating: IP54
RS PRO Black ABS Enclosure Variant - Available Separately
The most common applications include:
- Installation terminals
- Electronic components
- Mechanical engineering
- Food industry
- Chemical industry
- Industrial and manufacturing environments
What’s included?
- Base and Lid of the Enclosure
- 4x M3 Machine Screws for assembly
FAQs
Can the enclosure be used outside?
This enclosure has an IP54 rating so only protected from water spray, so this product is not recommended for outside use.
If the gasket accessory is used, the IP rating increases to IP65 which can protect against water ingress, making it more suitable for use outside.
This enclosure has an IP54 rating so only protected from water spray, so this product is not recommended for outside use.
If the gasket accessory is used, the IP rating increases to IP65 which can protect against water ingress, making it more suitable for use outside.
Specifications
Attribute | Value |
|---|---|
| Body Material | ABS |
| External Length | 167.1 mm |
| External Height | 31 mm |
| External Width | 84.1 mm |
| External Dimensions | 167.14 x 84.14 x 31mm |
| IP Rating | IP65 |
| Colour | Black |
| Lid Colour | Black |
| Flanged | Yes |
