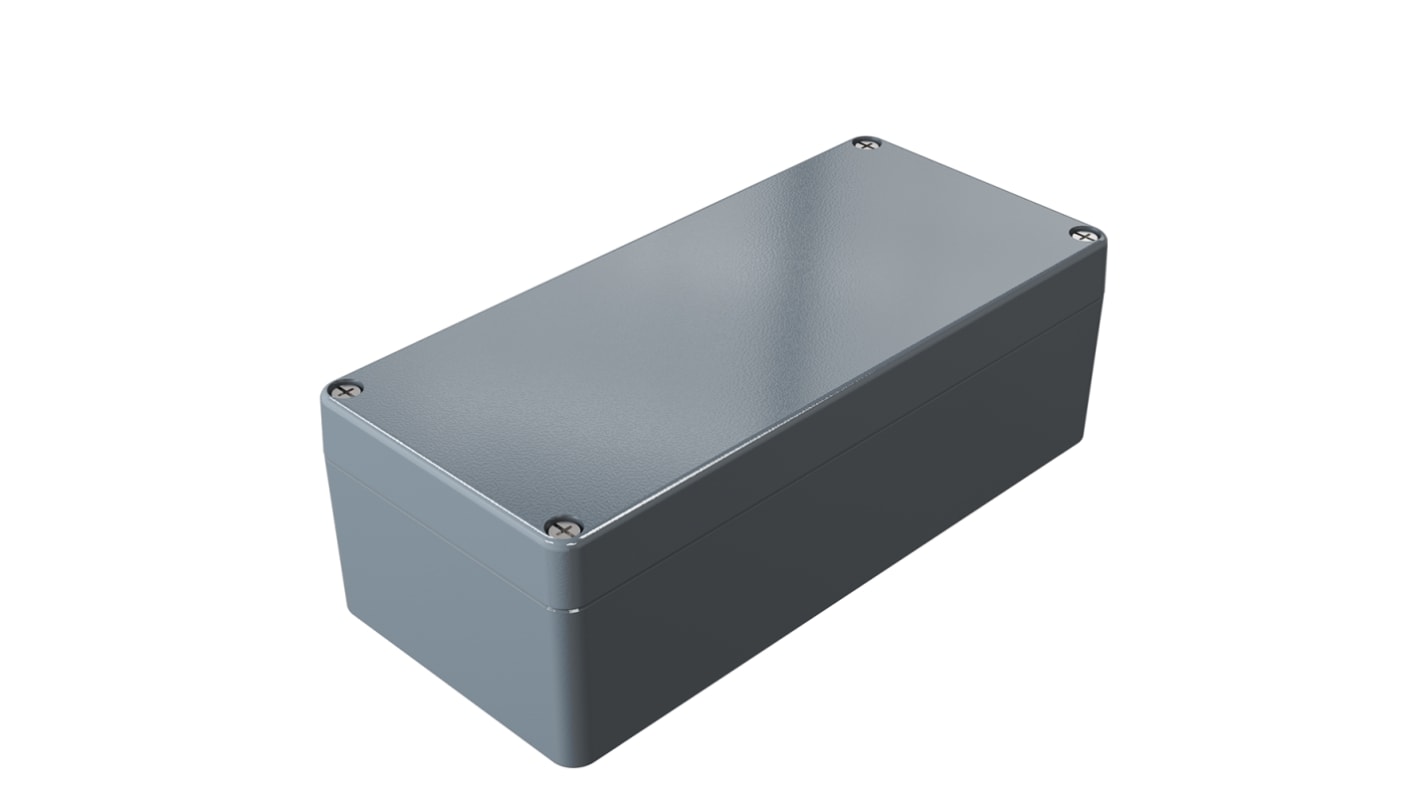

Rose Aluminium Standard Series Grey Die Cast Aluminium Enclosure, IP66, IK09, Grey Lid, 200 x 100 x 80mm
- RS Stock No.:
- 385-840
- Mfr. Part No.:
- 01102008
- Manufacturer:
- Rose
82 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR296.71
| Units | Per Unit |
| 1 - 4 | MYR296.71 |
| 5 + | MYR287.81 |
- RS Stock No.:
- 385-840
- Mfr. Part No.:
- 01102008
- Manufacturer:
- Rose
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
ROSE General-Purpose Aluminium Enclosure, 200mm Width, 81mm Depth - Aluminium Standard Series - 01102008
Keep your industrial components safe by storing them in this enclosure from ROSE. Thanks to its dimensions of 100 (height) x 200 (width) x 81mm (depth), it gives you ample space to store multiple small devices. This box is made from die-cast aluminium, which is resistant to impact and corrosion for long-lasting performance. It comes with a robust polyurethane (PU) gasket for a tight seal that helps keep contaminants out. The seal has a broad operating temperature range of -40°C to +90°C, making this enclosure suitable for use in demanding environments.
Features & Benefits
• IP66 (ingress protection) rating means it's dust-tight and protected against high-pressure water jets
• Meets UL 508A safety standards for industrial control panels
• Comes with fixing screws for securing the lid in place to prevent tampering
• Can be mounted on a DIN rail or mounting plate for flexible installation
• Meets UL 508A safety standards for industrial control panels
• Comes with fixing screws for securing the lid in place to prevent tampering
• Can be mounted on a DIN rail or mounting plate for flexible installation
Applications
• Industrial control systems
• Factory automation
• Assembly plants
• Marine industry
• Factory automation
• Assembly plants
• Marine industry
How heavy is this enclosure?
This enclosure weighs just 1.039kg, so it won't place too much strain on your DIN rail or mounting plate.
Specifications
Attribute | Value |
|---|---|
| Body Material | Die Cast Aluminium |
| External Length | 200 mm |
| External Height | 80 mm |
| External Width | 100 mm |
| External Dimensions | 200 x 100 x 80mm |
| Range | Aluminium Enclosure |
| IP Rating | IP66 |
| Colour | Grey |
| Lid Colour | Grey |
| Flanged | No |
| Hazardous Area Certification | Lloyds Register, Maritime Register, UL 508 |
| Shielded | No |
| Series | Aluminium Standard |
| Number Of Knockouts | 0 |
| Weight | 950g |
| Transparent Door | No |
| IK Rating | IK09 |
| Gasket Material | Polyurethane |
| RAL Code | RAL 7001 |
