BL3 Valved 10-28 100mm MS

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

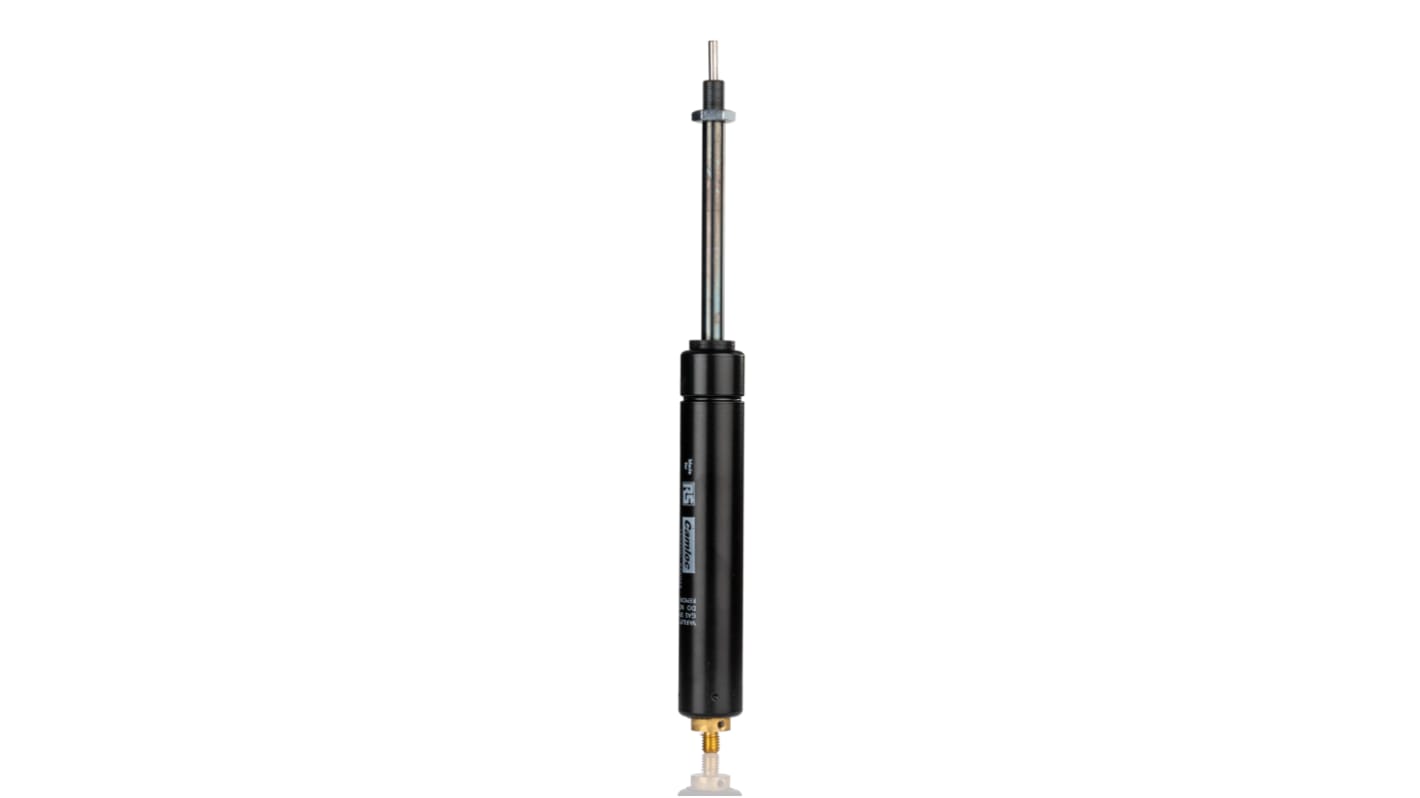

Blocklift - Locking Gas Struts:

The Camloc range of Blocklift locking gas struts perform like conventional gas struts, with the addition of a special internal locking valve that allows the strut to be locked in any position.

This locking mechanism only allows the strut to move whilst the release pin, located on the end of the piston rod, is depressed. Common applications for Blocklift locking gas struts include height and angle adjustment of seats on aircraft, buses, trains, specialist vehicles and on military vehicle seating. They are also used for providing controllable adjustment on hospital beds, physiotherapy tables and wheelchairs
as well as height risers for desks. Blocklifts can be used on so many different applications across such a wide range of industry sectors that their use is really only limited by the design engineers imagination!

Benefits:

  • Locks in any position on length of stroke
  • Single handed operation
  • Safe to use with easy positional control
  • Self-contained unit and maintenance free
  • Available in carbon or 316L stainless steel
  • UK manufactured product
  • ISO 9001 registered company

Specifications
Attribute Value
Locking & Holding Any Position Lock
Cylinder Material Steel
Extended Length 265mm
Stroke Length 100mm
Rod Diameter 28mm
Piston Diameter 10mm
Maximum Force 1000N
Minimum Force 150N
19 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR562.55
MYR 556.70
units
Per unit
1 +
MYR556.70
