RS PRO 15A Blade Fuse Block, 250V
- RS Stock No.:
- 188-4476
- Manufacturer:
- RS PRO
Available for back order.
Added
Price 1 Box of 1000
MYR3,050.80
| Box(es) | Per Box | Per Unit* |
| 1 - 1 | MYR3,050.80 | MYR3.051 |
| 2 - 9 | MYR3,003.82 | MYR3.004 |
| 10 + | MYR2,472.13 | MYR2.472 |
| *price indicative | ||
- RS Stock No.:
- 188-4476
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

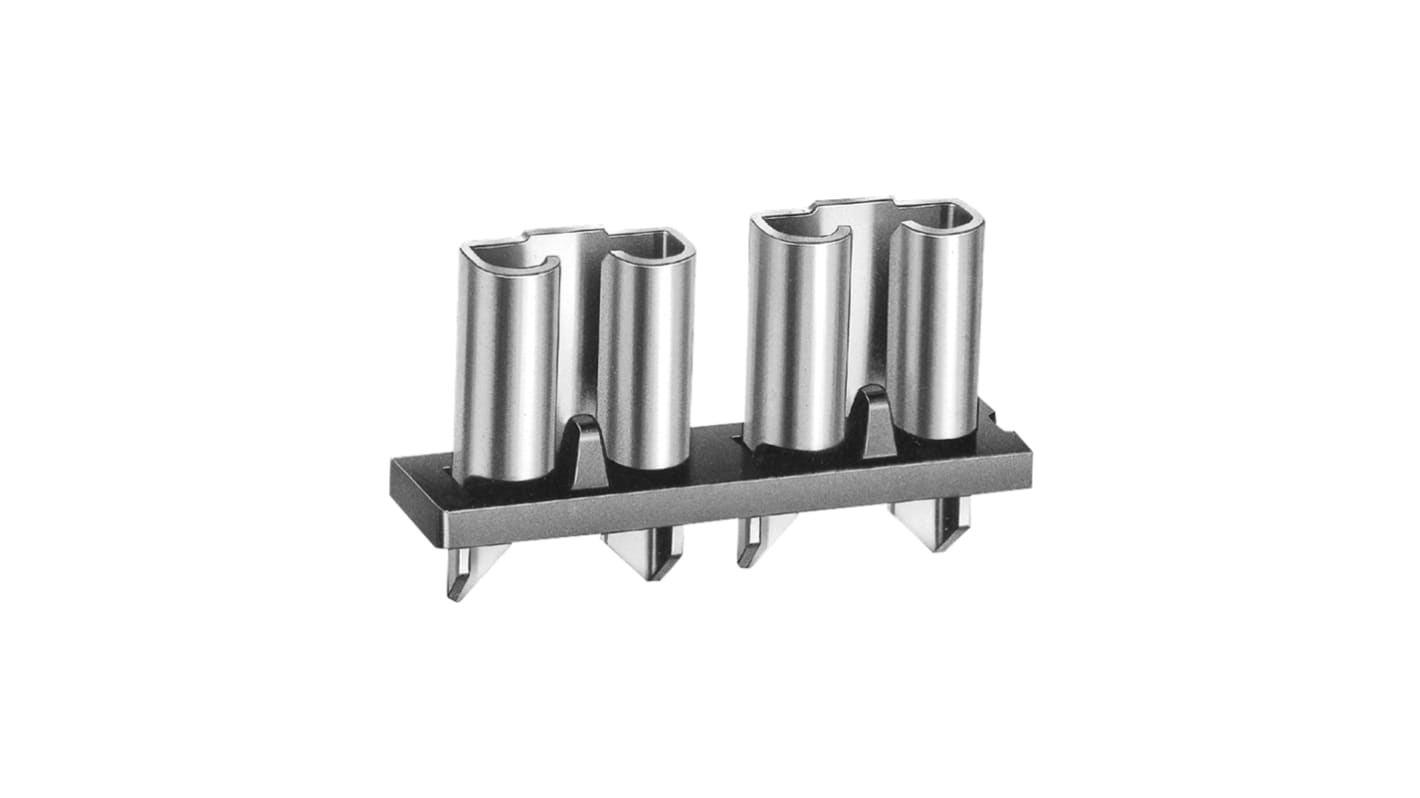

RS PRO Blade Fuse Block
The RS PRO blade fuse block has a current rating of 15A and voltage rating of 250V. The material used for the block is tin-plated brass and is suitable for ATQ blade type fuse.
Features and Benefits
• Dielectric Strength: AC 2000V min(60 Seconds)
• Flame Retardant
• Insulation Resistance: 100Mohm min(at 500VDC)
• Low Contact Resistance
• Low Cost
• Maximum operating range of 50°C
• Tolerance is ±0.2
• Flame Retardant
• Insulation Resistance: 100Mohm min(at 500VDC)
• Low Contact Resistance
• Low Cost
• Maximum operating range of 50°C
• Tolerance is ±0.2
Certifications
• UL 94 V-0 approved
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Fuse Type | Blade |
| Current Rating | 15A |
| Voltage Rating | 250V |
| Operating Temperature Range | Maximum of +50 °C |
| For Use With | ATQ Blade Type Fuse |
