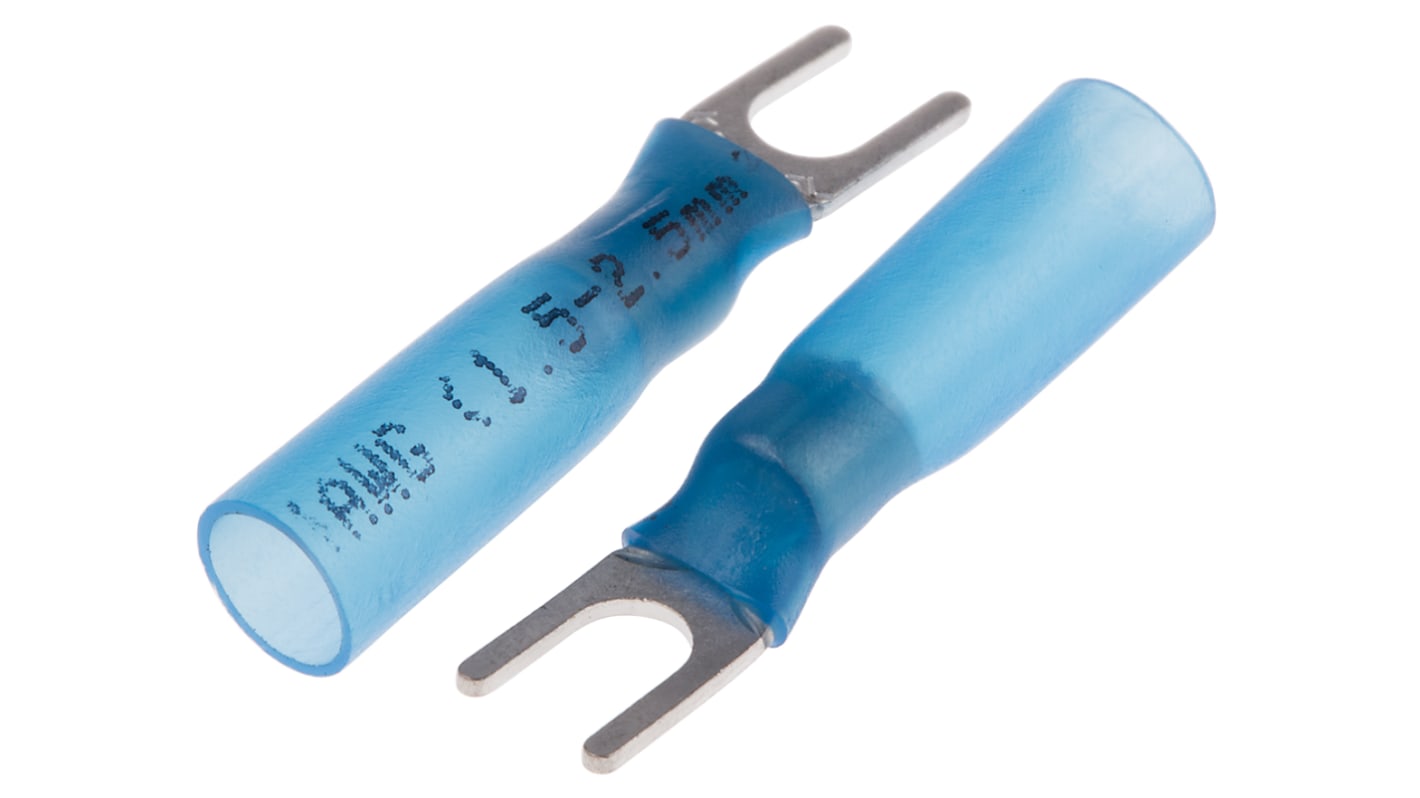

RS PRO Insulated Crimp Spade Connector, 1.5mm² to 2.5mm², 16AWG to 14AWG, M3.7 (#6) Stud Size HDPE, Blue
- RS Stock No.:
- 125-1972
- Manufacturer:
- RS PRO
10000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 100)
MYR1.664
Units | Per Unit | Per Pack* |
100 - 400 | MYR1.664 | MYR166.40 |
500 + | MYR1.369 | MYR136.90 |
*price indicative |
- RS Stock No.:
- 125-1972
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS Pro Heat Shrink Spade Connectors
RS Pro range of heat shrink spade connectors made from tin plated copper with a brazed seam. These heat shrink electrical spade connectors have a high density PE (polyethylene) heat shrink sleeve which is colour coded to correspond with the wire size they are used with.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
RS Heatshrinkable
Specifications
Attribute | Value |
---|---|
Insulation | Insulated |
Insulation Material | HDPE |
Width | 6mm |
Minimum Wire Size mm² | 1.5mm² |
Maximum Wire Size mm² | 2.5mm² |
Minimum Wire Size AWG | 16AWG |
Maximum Wire Size AWG | 14AWG |
Shrouded/Unshrouded | Unshrouded |
Stud Size | M3.7 (#6) |
Colour | Blue |
Overall Length | 28.5mm |
Contact Material | Copper |
