Mecmesin 853-412 Force Gauge 1000Hz RS232, Range: 20 kgf, 200 N, 20000 gf, 44 lbf, 720 ozf

  • RS Stock No. 722-6940
  • Mfr. Part No. 853-412
  • Manufacturer Mecmesin
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details

Basic Force Gauge

A cost effective solution to accurate tensile and compression measurement, handheld or jig mountable.

Large clear display & tough blue aluminium case
Menu driven; displays N, kN gf, kgf, ozf & lbf
Audible & visual overload indication
Max and Peak readouts
RS-232, Analogue & Mitutoyo data outputs
Backlit display & auto power down function
Invertable display for handheld or horizontal applications
Full unit conversion of displayed value
Overload warning with trend bar
Diagnostic check of load cell
Two rear M5 x 0.8 (5.5mm deep) tapped holes for machine mounting
Internal stud thread M6 x 1.0

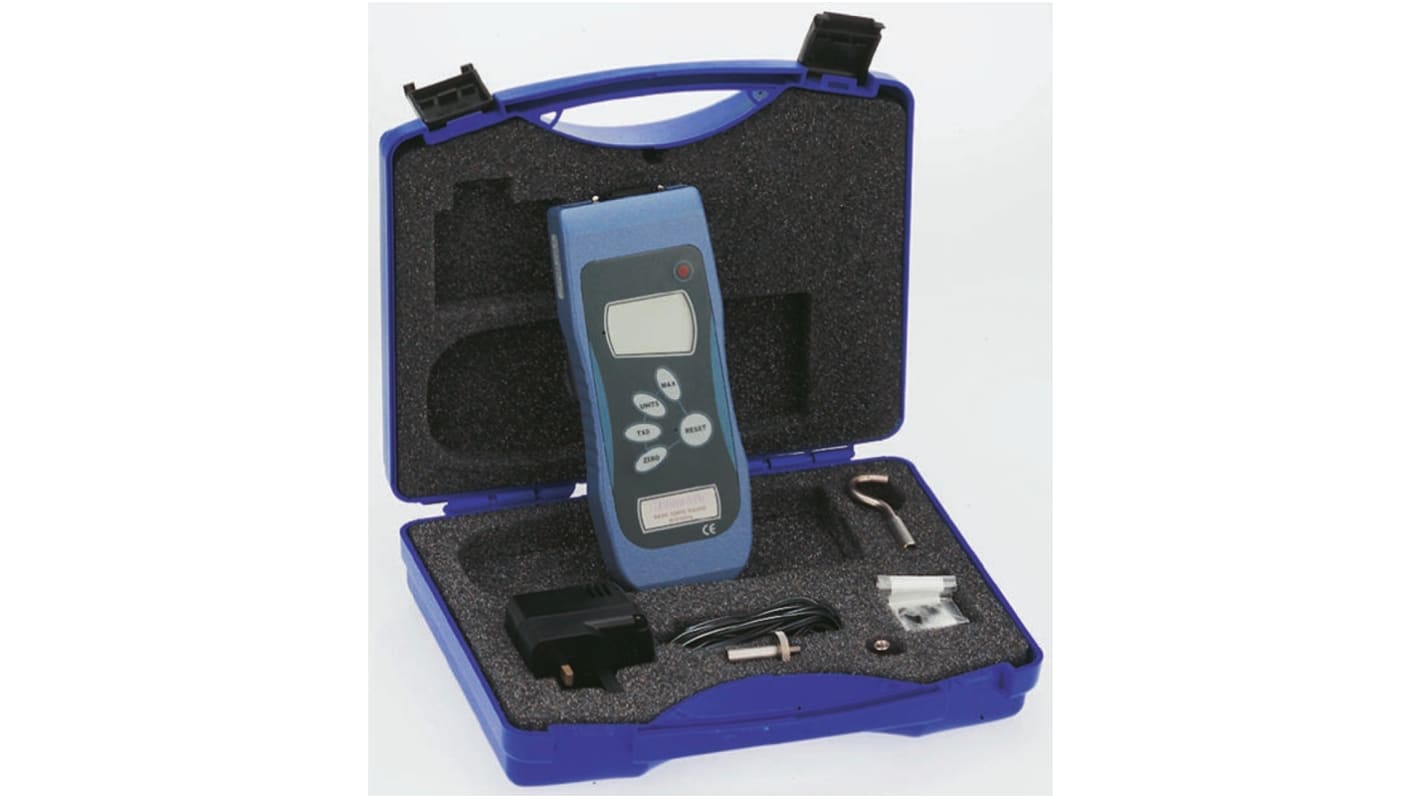

Supplied with

5 rechargeable NiMH batteries, mains charger unit, 1 x short extension rod, 1 x test hook, 1 x compression plate, calibration certificate, operating instructions and carry case.

Specifications
Attribute Value
Range 20 kgf, 44 lbf, 200 N, 720 ozf, 20000 gf
Best Accuracy ±0.25 %
Measurement Units Gf, Kgf, KN, Lbf, MN, N, Ozf
Resolution 0.005 kgf, 0.01 lbf, 0.05 N, 0.2 ozf, 5 gf
Sampling Rate 1000Hz
Digital Output RS232
Battery Life 20 h
Battery Type AAA
Dimensions 30.9 x 77 x 202mm
Weight 500g
Height 202mm
Length 30.9mm
Width 77mm
Minimum Operating Temperature +10°C
Maximum Operating Temperature +35°C
8 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 4,451.18
units
Per unit
1 +
MYR4,451.18
