Halda AFG-G50FMRS Force Gauge, Range: 50-5-50gf, Resolution: 1 g

  • RS Stock No. 432-205
  • Mfr. Part No. AFG-G50FMRS
  • Manufacturer Halda
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

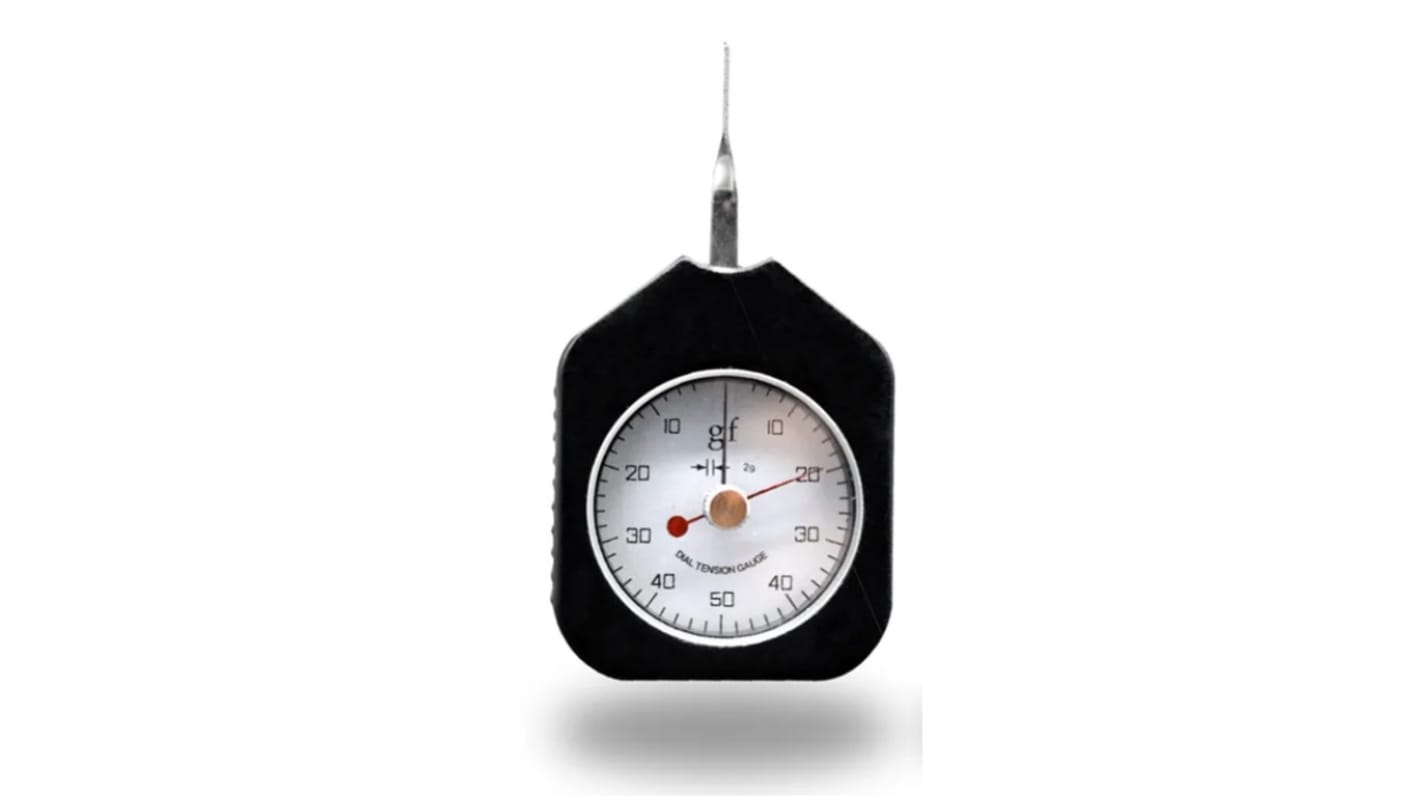

Gram Force Dial Gauge

These analogue tension/force gram gauges are for precision setting of relay contact pressures, measuring starting torques of miniature motors and clock movements, quality control of microcircuit wire bond strengths etc.Centre reading dial permits measurements to be made in a clockwise or anti-clockwise direction and incorporates a secondary pointer which acts as a maximum indicator. Accuracies of ±2% of f.s.d. can be achieved provided the feeler arm is always at right angles to the direction of the force and the feeler tip only is in contact.

The beryllium-copper mechanism is housed in a diecast aluminium frame.

Specifications
Attribute Value
Range 50-5-50gf
Best Accuracy ±2 %
Measurement Units G
Resolution 1 g
4 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 844.67
units
Per unit
1 +
MYR844.67
