General Purpose Foot Switch, Thermoplastic Momentary Single Pole Double Throw (SPDT) 1.75 A 24V IPX7

  • RS Stock No. 808-6982
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

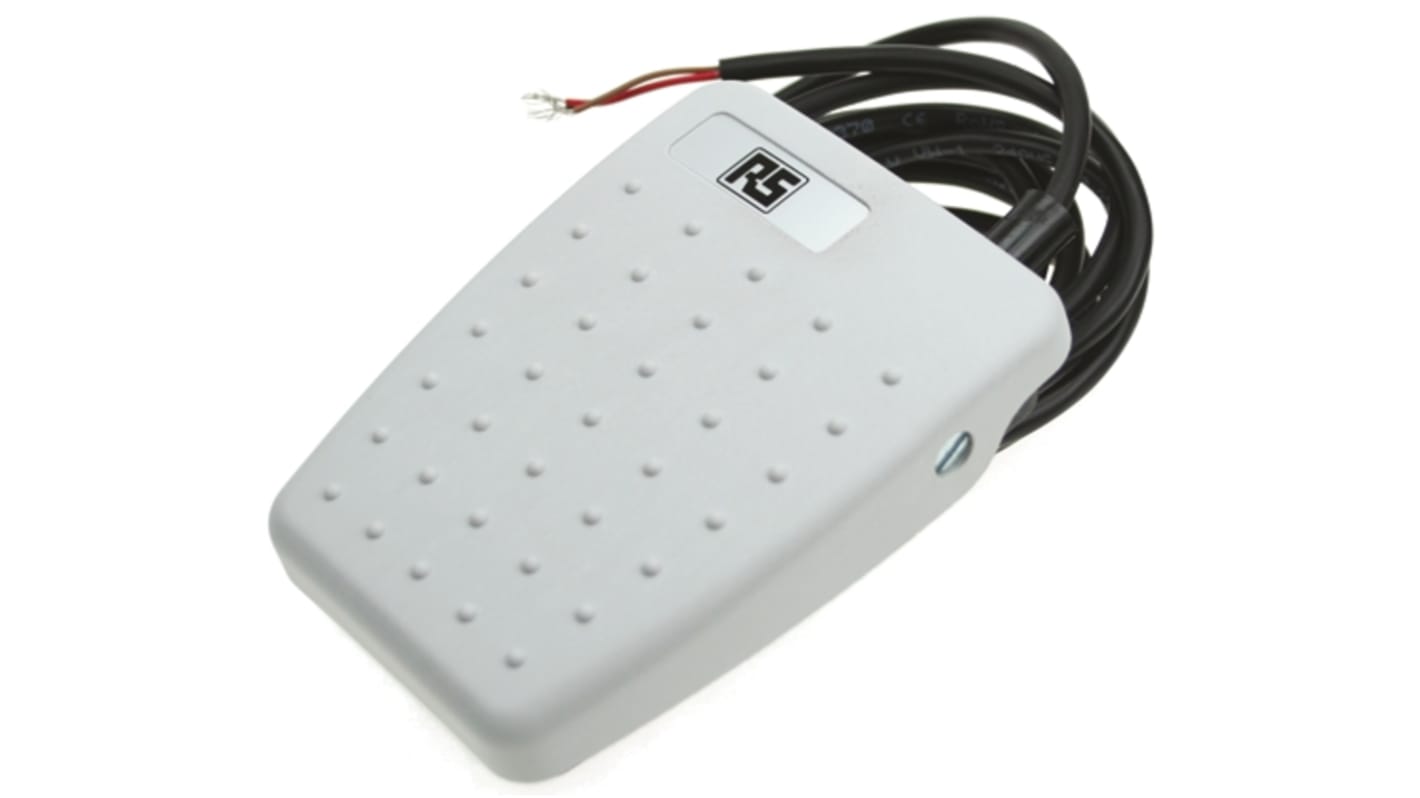

RS Low Profile Waterproof Industrial Footswitch

This range of waterproof foot switches from RS is created with a tough, glass filled plastic body providing an IPX7 level of ingress protection and low profile enclosure, making it perfect for use within harsh industrial environments. These foot switches are designed to be waterproof allowing a wider applications in surroundings where contact with water is likely.

Waterproof switch
Low profile enclosure
Single pole changeover contacts
Straight 2 meter cable
IPX7 rating

Specifications
Attribute Value
Contact Configuration SP-CO
Switch Operation Momentary
Case Material Thermoplastic
Contact Voltage Rating AC 24V
Contact Voltage Rating DC 24V
Contact Current Rating 1.75 A
Switch Environment General Purpose
IP Rating IPX7
Contact Material Silver
Height 26mm
Standards Met ANSI/AAMI ES60601-1:2005/(R)2012, CSA C22.2 No. 60601-1:14, EN 60601-1:2006, EN 60950, UL 60601-1:2005, UL File No E353500
Length 96mm
Width 72mm
Colour Black, Grey
Dimensions 96 x 72 x 26mm
11 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 197.90
units
Per unit
1 +
MYR197.90
