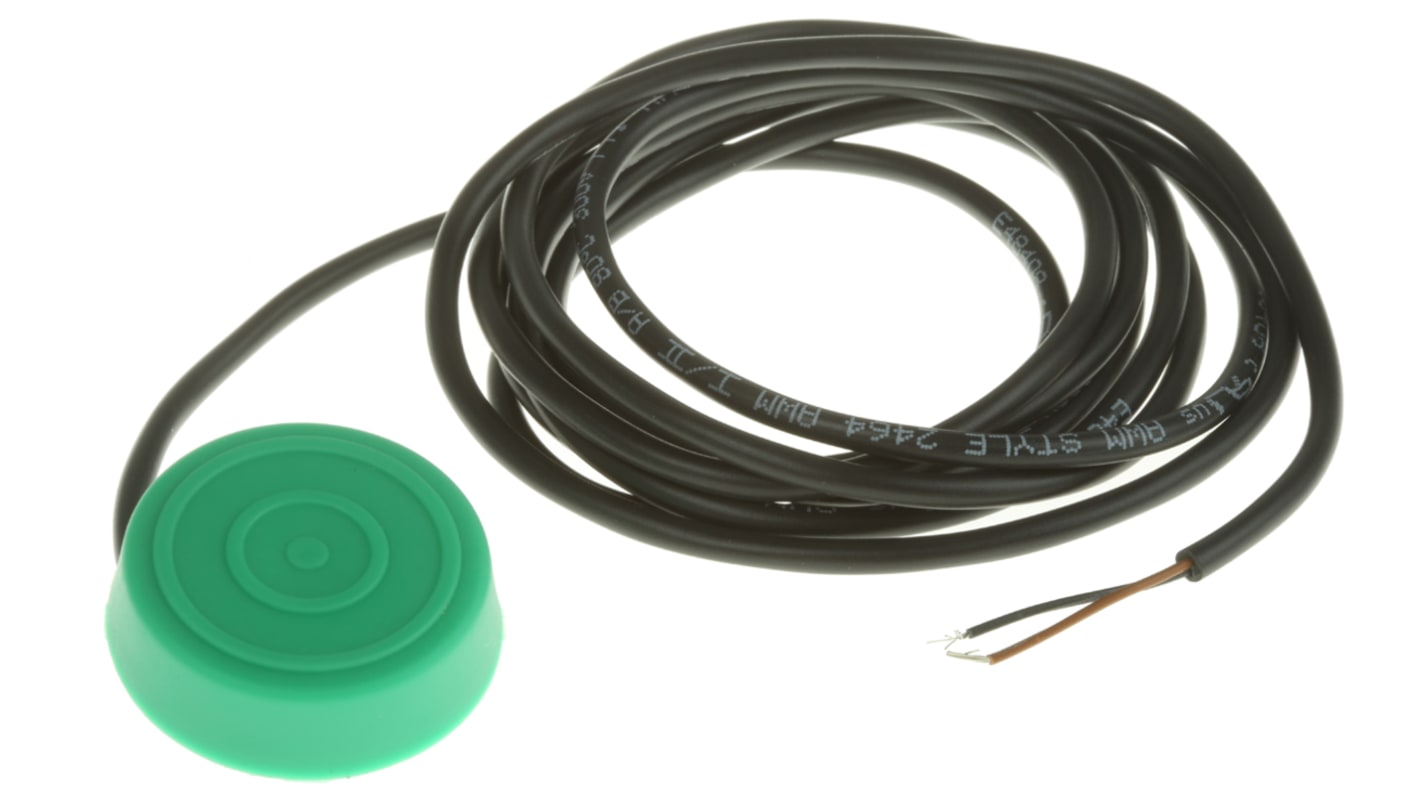

Herga Medically Approved Foot Switch Bellow Momentary Foot Switch - PVC Case Material, SPST, 50 mA Contact Current
- RS Stock No.:
- 456-1745
- Mfr. Part No.:
- 6241-0004
- Manufacturer:
- Herga
31 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR180.83
| Units | Per Unit |
| 1 - 5 | MYR180.83 |
| 6 - 29 | MYR177.10 |
| 30 + | MYR145.75 |
- RS Stock No.:
- 456-1745
- Mfr. Part No.:
- 6241-0004
- Manufacturer:
- Herga
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details
RS PRO Bellow Foot Switch
Introducing the RS PRO round bellow switch, a momentary SPST (Single Pole Single Throw) switch designed for lightweight applications yet capable of enduring heavy loads with ease. This switch is easily activated with a light touch over its entire surface, typically by pressing down on the top of the bellow with the foot.
Crafted from durable polyvinyl chloride (PVC), the body of this switch ensures resistance against wear and corrosion, guaranteeing longevity in various environments. With an impressive Ingress Protection (IP) rating of IP67, it offers robust defence against dirt, dust, and temporary water immersion.
Crafted from durable polyvinyl chloride (PVC), the body of this switch ensures resistance against wear and corrosion, guaranteeing longevity in various environments. With an impressive Ingress Protection (IP) rating of IP67, it offers robust defence against dirt, dust, and temporary water immersion.
Why Would You Choose This Foot Switch?
Enjoy hassle-free installation, comes equipped with a cable pre-fitted to its base. Compliant with European (2014/35/EU), American (ANSI/ESD S20.20:2014), and British (BS EN 61340-5-1:2007) standards for electrical items, it meets stringent electrostatic discharge (ESD) requirements, significantly reducing the risk of discharge occurrences.
Features and Benefits
- Designed to control the flow of electricity in a circuit
- Allows for quick and effortless activation even with minimal force
- Flat top bellows footswitch/palm switch
- Low profile tactile switch
- Supplied with 2 metres of 2-core black cable
- Hands-free operation
Specification
- Medically approved - IEC 60601-1 and UL 60601-1
- Single pole normally open contacts
- Back entry cable, base fitted with M4 inserts
- Contact rating: 50 mA
- Contact Voltage: 30 Vdc
- Operating Temperature: -5°C to +40°C
- Sealed to IP67
Colour Variants Available Separately
Applications
- Industrial machinery
- Medical equipment
- Musical instruments
Approvals
7777
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Series | 6241 |
| Foot Switch Type | Momentary Foot Switch |
| Switch Operation | Momentary |
| Case Material | PVC |
| Contact Voltage Rating DC | 30V |
| Contact Current Rating | 50 mA |
| Switch Environment | Medically Approved Foot Switch Bellow |
| IP Rating | IP67 |
| Colour | Green |
