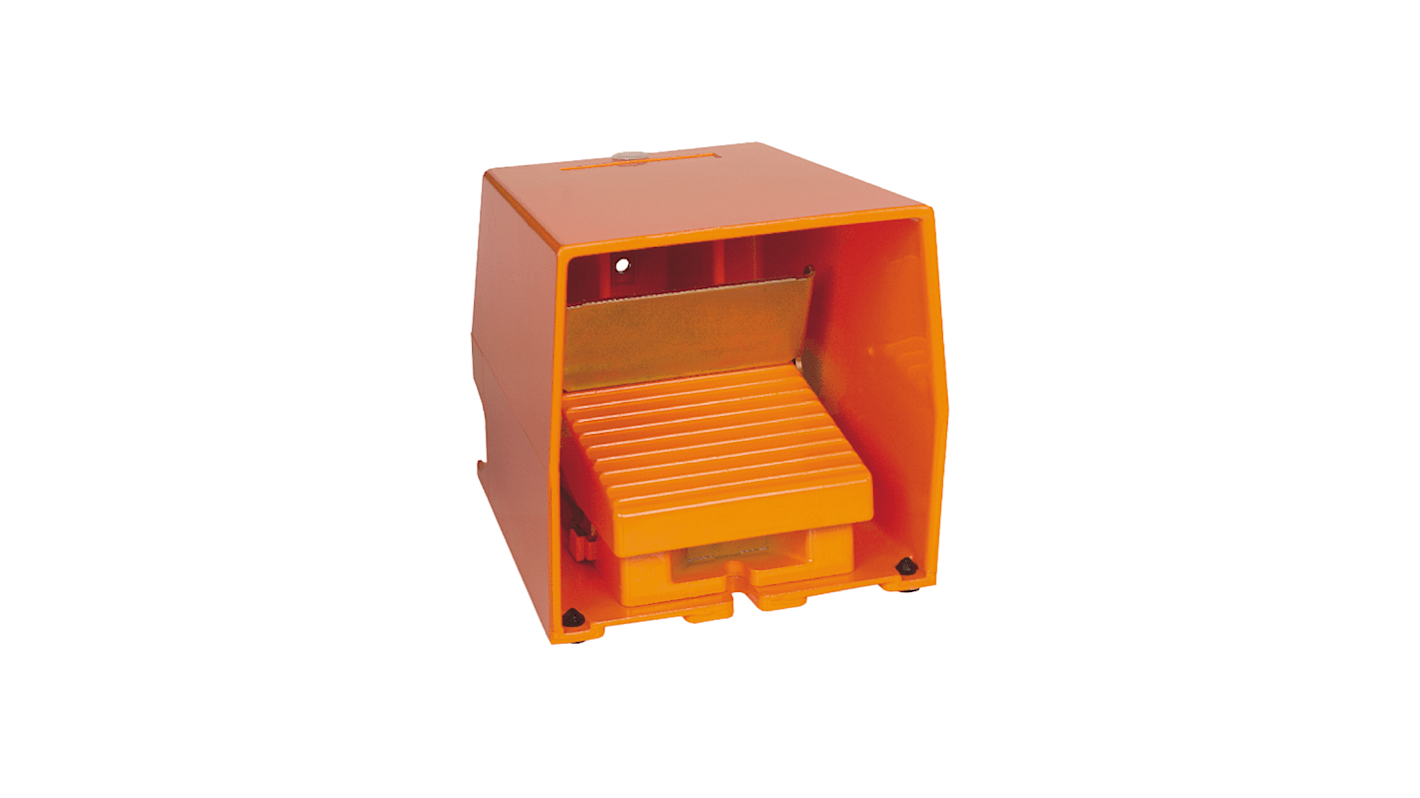

Industrial Duty Metal Foot Switch, Metal NO/NC 270 mA @ 250 V dc, 3 A @ 240 V ac 240V IP66

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): MA
Product Details

Switches with safety pedal

Pedal switches for safety applications with positive movement when released.
This type of pedal switch is to be used any time that operation may present a danger to people.

Approvals

  NF EN 60947-5-1, EN60204-1, NF E 09-031

//media.rs-online.com/t_line/L827108-01.gif

Industrial Duty Footswitches

A range of robust footswitches suited for industrial environments issuing start and normal stop instructions to many types of machines. They allow the operator greater freedom of movement.

Specifications
Attribute Value
Series Harmony XPE
Contact Configuration NO/NC
Case Material Metal
Contact Voltage Rating AC 240V
Contact Voltage Rating DC 250V
Contact Current Rating 3 A @ 240 V ac, 270 mA @ 250 V dc
Switch Environment Industrial Duty
IP Rating IP66
26 Within 4 working day(s) (Global stock)
11 Within 4 working day(s) (Global stock)
Price Each
MYR 908.40
units
Per unit
1 +
MYR908.40
