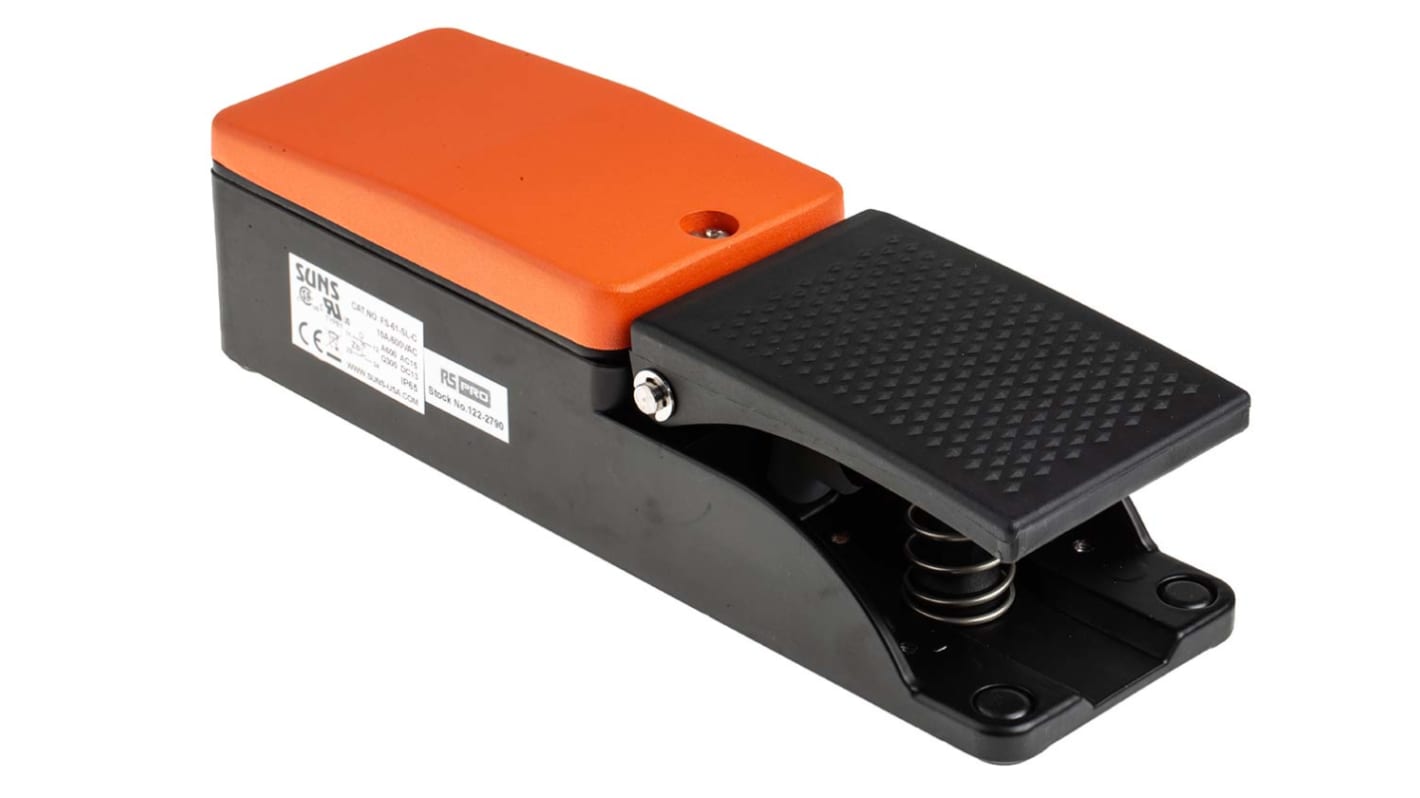

Heavy Duty Foot Switch, Slow Action Single Pole Double Throw (SPDT) 10 A 600V IP65

  • RS Stock No. 122-2790
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

RS Pro FS-6 Series Heavy Duty Foot Switches

RS Pro FS-6 series heavy-duty foot switches, with or without protective guard cover. These foot switches feature a slow action break before make SPDT contact sealed in a robust aluminium diecast body.

Robust aluminium alloy diecast body
IP65 Rated
Galvanically separated contacts
Screw terminals with self-lifting clamps
Positive opening of NC contacts

Specifications
Attribute Value
Contact Configuration SP-CO
Switch Operation Slow Action
Contact Voltage Rating AC 600V
Contact Voltage Rating DC 500V
Contact Current Rating 10 A
Switch Environment Heavy Duty
IP Rating IP65
Contact Material Silver
Length 70mm
Dimensions 70 x 220 x 60mm
Width 220mm
Height 60mm
35 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 337.13
units
Per unit
1 +
MYR337.13
