SMC, 0.5 → 25 L/min Flow Controller, PNP, 24 V dc, 3 Digit 7 Segment LED

  • RS Stock No. 721-3966
  • Mfr. Part No. PFM725S-C6-B
  • Manufacturer SMC
Technical data sheets
Legislation and Compliance
Non Compliant
COO (Country of Origin): JP
Product Details

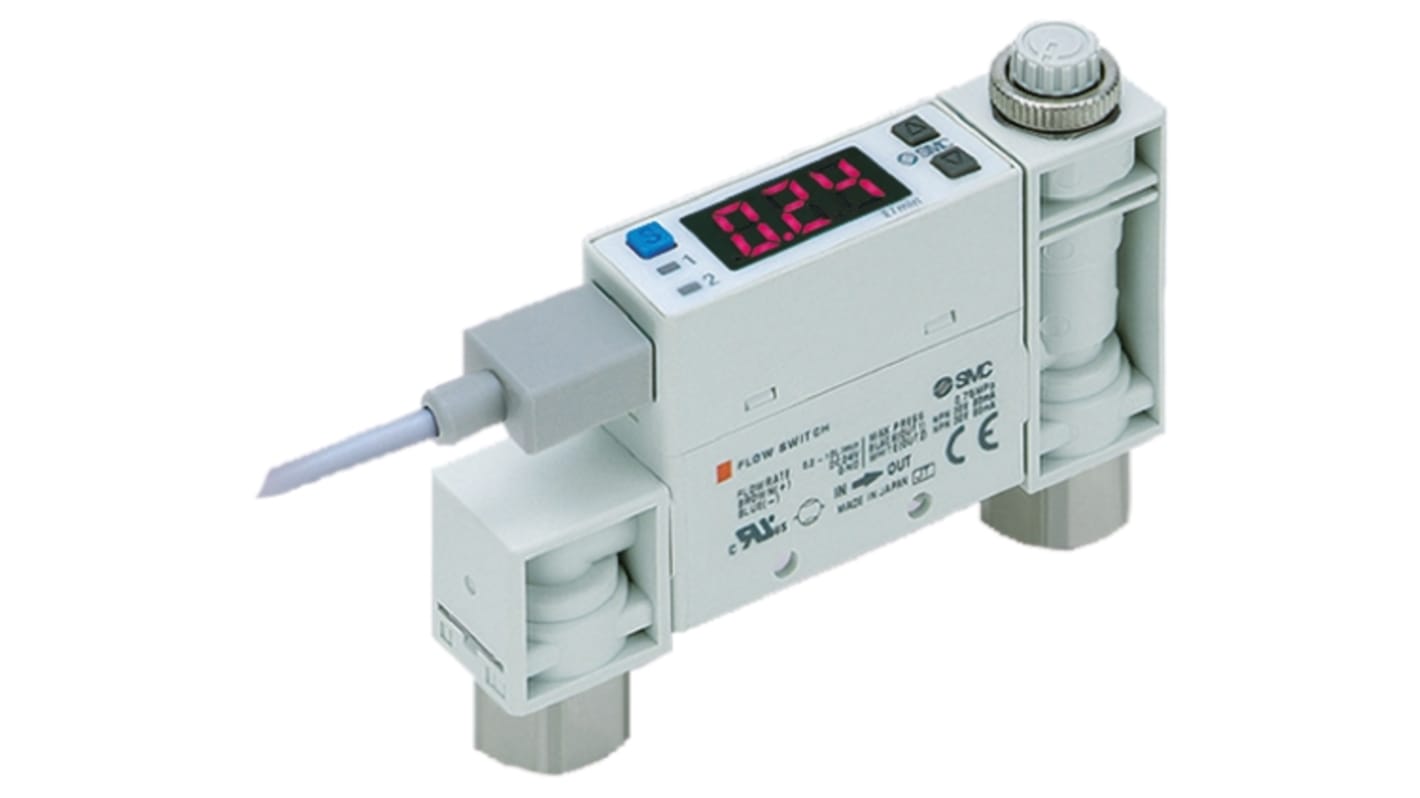

Digital Flow Switch - PFM7 Series

The PFM series from SMC are dual flow switches designed to detect microchip component adsorption in vacuum, congestion in filters and nozzles. Compact and light weight design, suitable for use with carbon dioxide, air, nitrogen or argon.

Flow rate range: 10, 25, 50,100 l/min
Minimum unit setting: 0.01 l/min
Repeatability: ±1%F.S. or less
Grease-free
Flow adjustment valve is integrated - reduced piping and space saving
Response time can be set

Specifications
Attribute Value
Maximum Flow Rate 0.5 → 25 L/min
Control Output PNP
Mounting Style Compact
Supply Voltage 24 V dc
Display Screen LED
Pipe Diameter Range 6 mm
Minimum Operating Temperature 0°C
Maximum Operating Temperature +50°C
2 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 1,357.91
units
Per unit
1 +
MYR1,357.91
