ATMI Cable Mount PVDF Float Switch, Float, 5m Cable, SPDT, 250V ac Max, 125V dc Max
- RS Stock No.:
- 208-5506
- Mfr. Part No.:
- TUBA125C05M
- Manufacturer:
- ATMI
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR4,061.28
| Units | Per Unit |
| 1 + | MYR4,061.28 |
- RS Stock No.:
- 208-5506
- Mfr. Part No.:
- TUBA125C05M
- Manufacturer:
- ATMI
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details

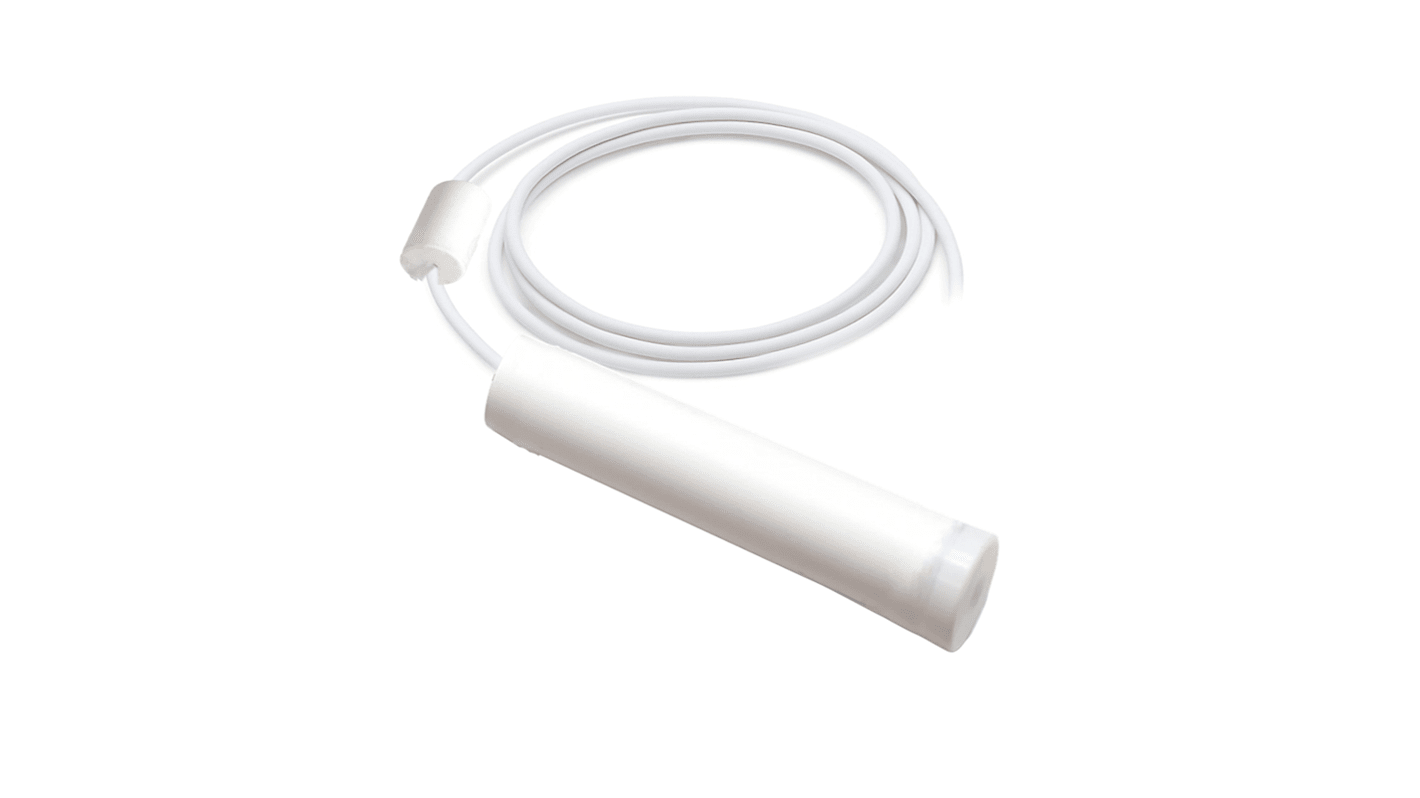

This small tubular float level sensor is equipped with a TEFLON cable and a specially designed PTFE housing for extremely aggressive liquids, such as for example sulfuric acid and very hot liquids reaching temperatures up to 125°C.
The TUBA 125 C level sensor has a ball inside a sealed polypropylene cylinder that will activate a microswitch according to its position. This principle is extremely reliable.
The small diameter of this float (Ø 40 mm) allows its introduction by small holes often placed on the vertical walls of the tanks.
The TUBA 125 C level sensor has a ball inside a sealed polypropylene cylinder that will activate a microswitch according to its position. This principle is extremely reliable.
The small diameter of this float (Ø 40 mm) allows its introduction by small holes often placed on the vertical walls of the tanks.
Maximum pressure 2 bar
Maximum temperature 125°C
Protection index IP68
Maximum temperature 125°C
Protection index IP68
Specifications
Attribute | Value |
|---|---|
| Device Type | Float |
| For Use With | Aggressive Fluids |
| Mounting Type | Cable Mount |
| Switch Output | SPDT |
| Body Material | PVDF |
| Cable Length | 5m |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 125V |
| Maximum Pressure | 2bar |
