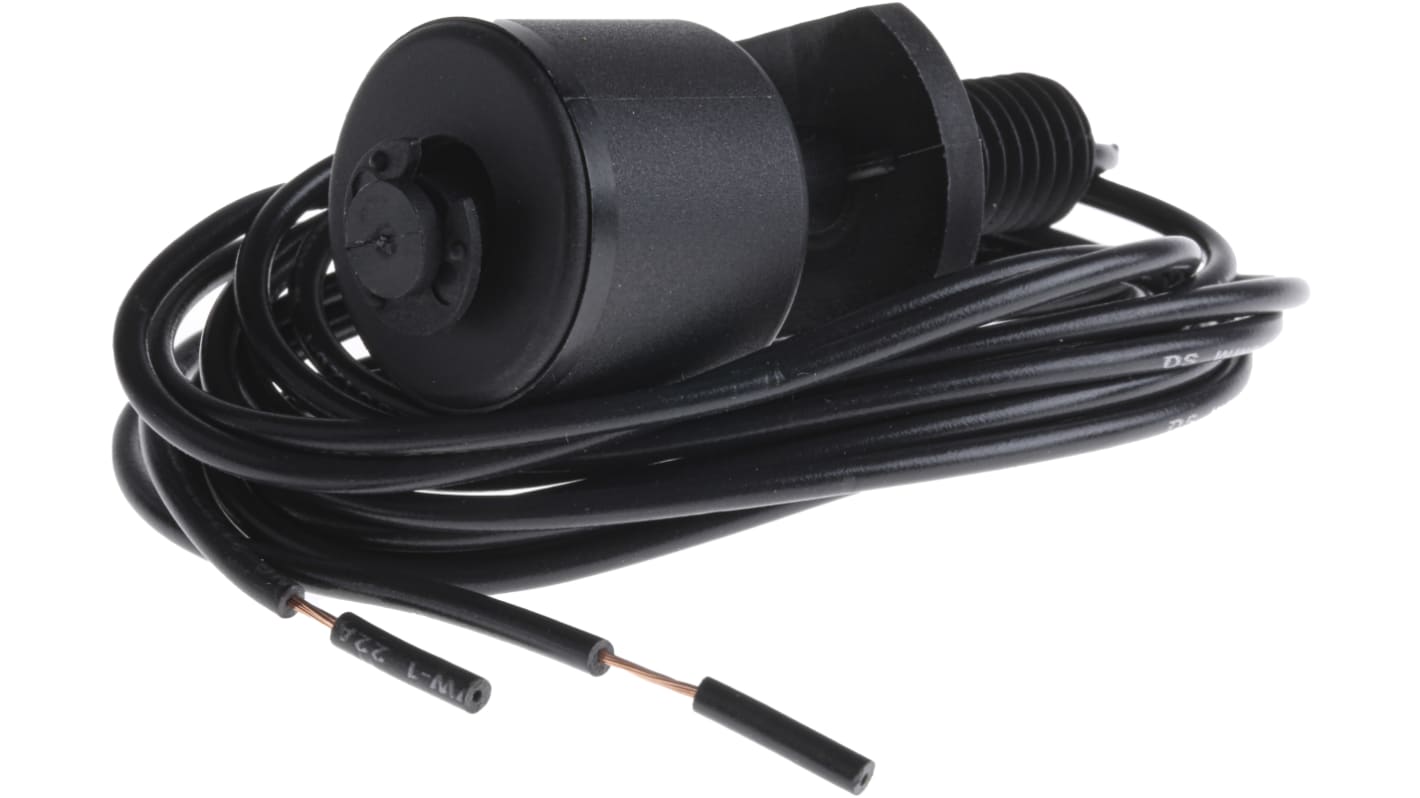

Float Switch, Vert, SPNO 25VA, Nylon

  • RS Stock No. 174-8413
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

RSF50 series are compact vertically mounted devices with a single switchpoint. Mounting is either from the top or bottom of a tank from the inside, so requires access to the inside of the tank. Typical applications include vending machines, printing systems and chemical dosing equipment. These can be manufactured in a variety of plastics, with a choice of gasket materials,to suit most commonly used liquids. The switch action may be reversed by removing the float, inverting it, then refitting to the stem. Available with M12 x 1.75 or 1/8" NPT mounting threads.

Compact design
Available in Nylon, Polypropylene, PPS & PVDF
25VA & 100VA versions


1/8" NPT and M12 thread options

Specifications
Attribute Value
Device Type Float
Mounting Type Vertical Internal
Switch Output NO/NC
Body Material Nylon
Cable Length 1m
Minimum Operating Temperature -20°C
Maximum Operating Temperature +75°C
Maximum AC Voltage 240V
Maximum DC Voltage 120V
Maximum Current 600 mA
Gasket Material Nitrile
Standards Met WRAS
Current Rating 0.6 A
Series RSF50
29 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 79.58
units
Per unit
1 - 4
MYR79.58
5 - 9
MYR77.19
10 +
MYR74.81
