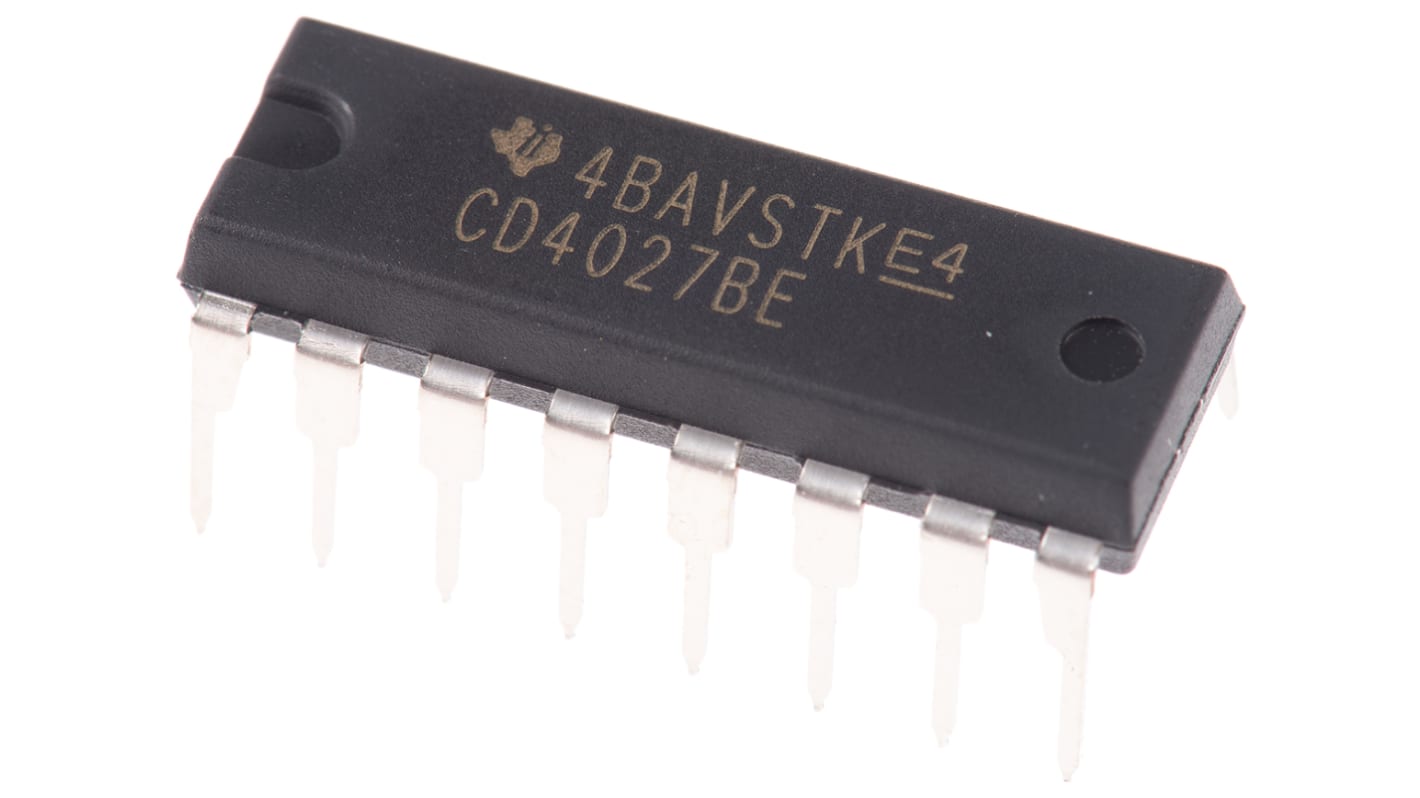

Texas Instruments CD4027BE Dual JK Type Flip Flop IC, 16-Pin PDIP
- RS Stock No.:
- 527-110
- Mfr. Part No.:
- CD4027BE
- Manufacturer:
- Texas Instruments
125 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
325 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Tube of 25)
MYR3.268
| Units | Per Unit | Per Tube* |
| 25 - 25 | MYR3.268 | MYR81.70 |
| 50 - 225 | MYR3.20 | MYR80.00 |
| 250 + | MYR2.633 | MYR65.825 |
| *price indicative | ||
- RS Stock No.:
- 527-110
- Mfr. Part No.:
- CD4027BE
- Manufacturer:
- Texas Instruments
Technical data sheets
Legislation and Compliance
Product Details
4000 Series Flip-Flops & Latches, Texas Instruments
Texas Instruments range of Flip-Flops and Latches from the 4000 Series CMOS Logic Family
4000 CMOS Logic Family, Texas Instruments
CMOS Family devices
Wide operating voltage range: 3 to 18V
Wide operating voltage range: 3 to 18V
Specifications
Attribute | Value |
|---|---|
| Logic Family | 4000 |
| Logic Function | JK Type |
| Input Type | Single Ended |
| Output Signal Type | Differential |
| Triggering Type | Positive Edge |
| Polarity | Inverting, Non-Inverting |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 16 |
| Set/Reset | Yes |
| Number of Elements per Chip | 2 |
| Maximum Propagation Delay Time @ Maximum CL | 300 ns @ 5 V |
| Dimensions | 19.3 x 6.35 x 4.57mm |
| Maximum Operating Supply Voltage | 18 V |
| Minimum Operating Supply Voltage | 3 V |
| Width | 6.35mm |
| Length | 19.3mm |
| Maximum Operating Temperature | +125 °C |
| Height | 4.57mm |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Temperature | -55 °C |
