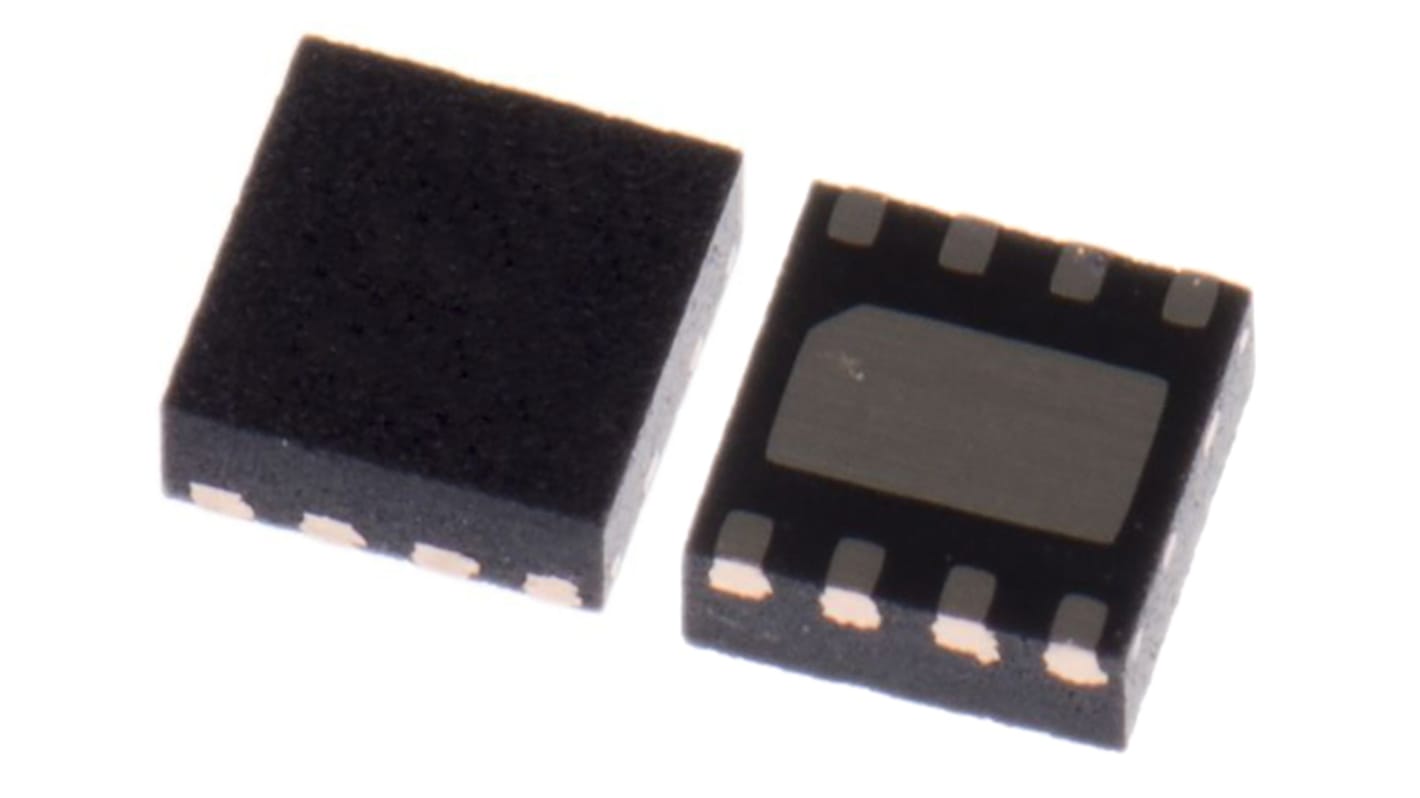

Winbond NOR 32Mbit Quad-SPI Flash Memory 8-Pin WSON, W25Q32JVZPIM
- RS Stock No.:
- 188-2824P
- Mfr. Part No.:
- W25Q32JVZPIM
- Manufacturer:
- Winbond
Temporarily out of stock - back order for despatch 22/11/2024, delivery within 4 working days from despatch date
Added
Price Each (Supplied in a Tube)
MYR6.855
| Units | Per Unit |
| 25 + | MYR6.855 |
- RS Stock No.:
- 188-2824P
- Mfr. Part No.:
- W25Q32JVZPIM
- Manufacturer:
- Winbond
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
32M-bit Serial Flash Memory with uniform 4KB sectors and Dual/Quad SPI.
4 I/O Fixed
UID & OTP Feature
Volatile & Non-Volatile SR
Programmable Output Driver Strength
Individual Block/Sector Write Protection
UID & OTP Feature
Volatile & Non-Volatile SR
Programmable Output Driver Strength
Individual Block/Sector Write Protection
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Memory Size | 32Mbit |
| Interface Type | Quad-SPI |
| Package Type | WSON |
| Pin Count | 8 |
| Organisation | 4M x 8 bit |
| Mounting Type | Surface Mount |
| Cell Type | NOR |
| Minimum Operating Supply Voltage | 2.7 V |
| Maximum Operating Supply Voltage | 3.6 V |
| Block Organisation | Symmetrical |
| Length | 5.1mm |
| Height | 0.75mm |
| Width | 6.1mm |
| Dimensions | 6.1 x 5.1 x 0.75mm |
| Series | W25Q |
| Number of Words | 4M |
| Maximum Operating Temperature | +85 °C |
| Maximum Random Access Time | 6ns |
| Minimum Operating Temperature | -40 °C |
| Number of Bits per Word | 8bit |
