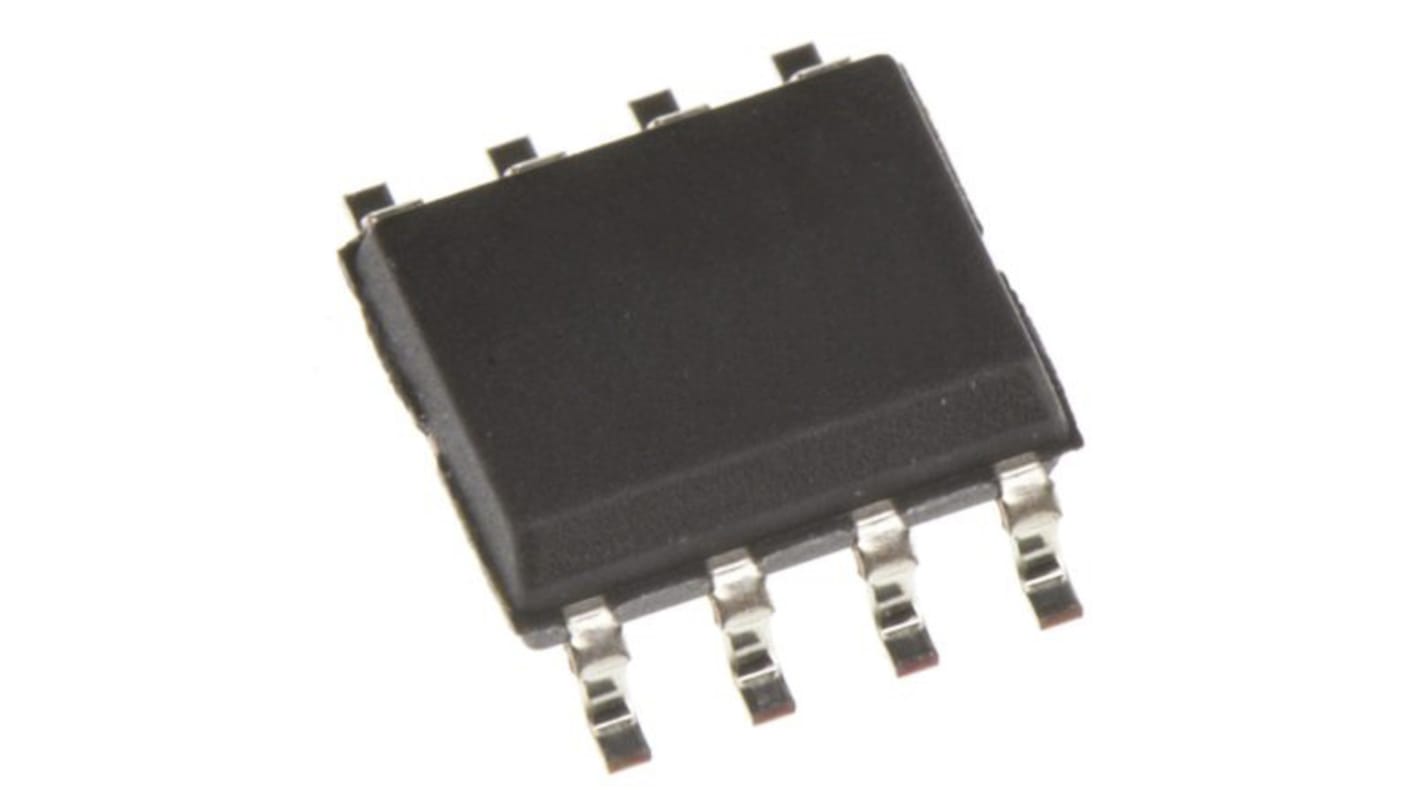

Winbond NOR 8Mbit Quad-SPI Flash Memory 8-Pin SOIC, W25Q80DVSNIG
- RS Stock No.:
- 188-2541
- Mfr. Part No.:
- W25Q80DVSNIG
- Manufacturer:
- Winbond
700 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Tube of 100)
MYR3.011
| Units | Per Unit | Per Tube* |
| 100 - 100 | MYR3.011 | MYR301.10 |
| 200 - 300 | MYR2.969 | MYR296.90 |
| 400 + | MYR2.909 | MYR290.90 |
| *price indicative | ||
- RS Stock No.:
- 188-2541
- Mfr. Part No.:
- W25Q80DVSNIG
- Manufacturer:
- Winbond
Technical data sheets
Legislation and Compliance
Product Details
8M-bit 3.0V Serial Flash Memory with uniform 4KB sectors and Dual/Quad SPI.
SPI with Single, Dual, Quad I/O
UID & OTP Feature
Volatile & Non-Volatile SR
Erase/Program Suspend & Resume
Software and Hardware Write-Protect
UID & OTP Feature
Volatile & Non-Volatile SR
Erase/Program Suspend & Resume
Software and Hardware Write-Protect
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Memory Size | 8Mbit |
| Interface Type | Quad-SPI |
| Package Type | SOIC |
| Pin Count | 8 |
| Organisation | 1M x 8 bit |
| Mounting Type | Surface Mount |
| Cell Type | NOR |
| Minimum Operating Supply Voltage | 2.7 V |
| Maximum Operating Supply Voltage | 3.6 V |
| Block Organisation | Symmetrical |
| Length | 5mm |
| Height | 1.5mm |
| Width | 4mm |
| Dimensions | 5 x 4 x 1.5mm |
| Maximum Operating Temperature | +85 °C |
| Number of Bits per Word | 8bit |
| Minimum Operating Temperature | -40 °C |
| Number of Words | 1M |
| Series | W25Q |
| Maximum Random Access Time | 6ns |
