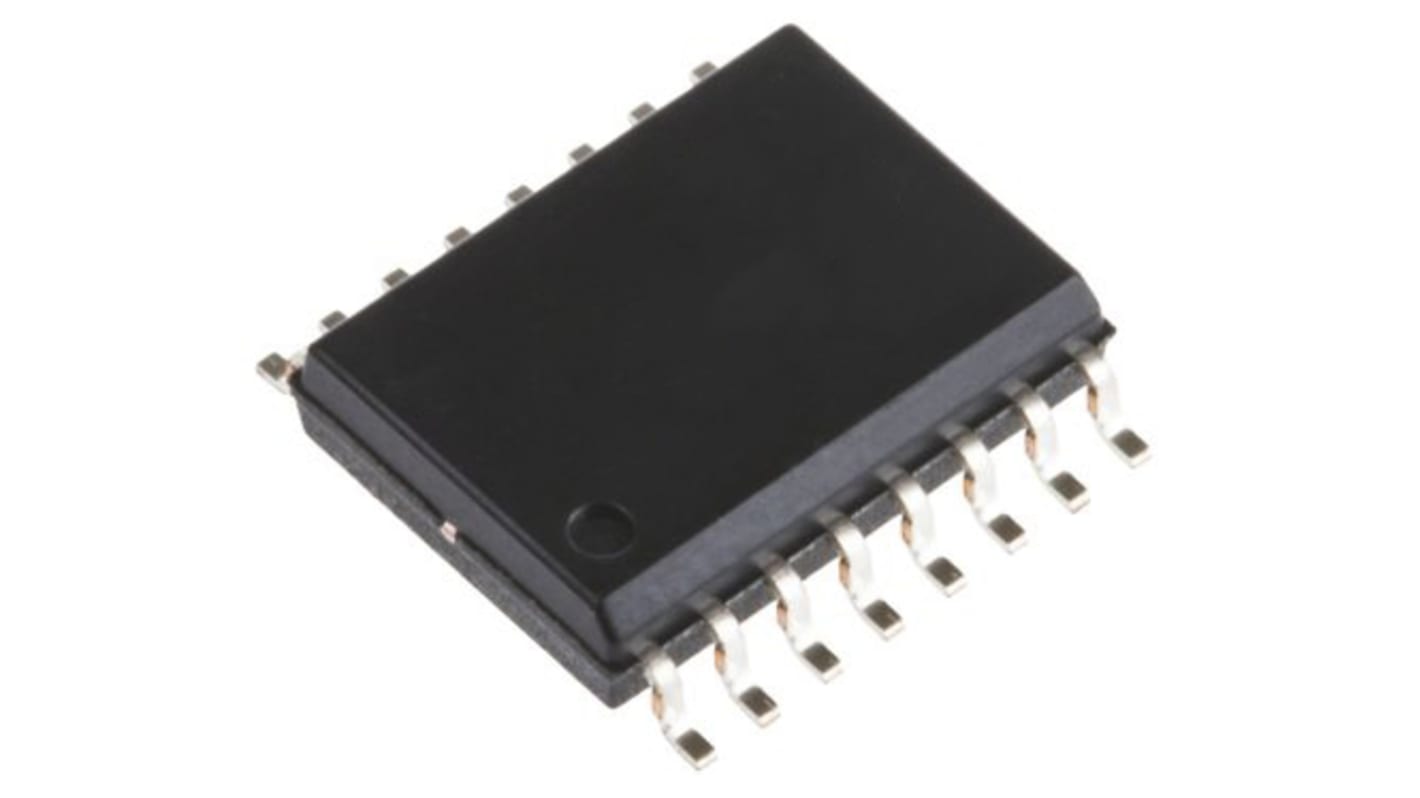

Winbond NOR 256Mbit Quad-SPI Flash Memory 16-Pin SOIC, W25Q256JVFIQ
- RS Stock No.:
- 188-2527
- Mfr. Part No.:
- W25Q256JVFIQ
- Manufacturer:
- Winbond
1496 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Tube of 44)
MYR19.408
| Units | Per Unit | Per Tube* |
| 44 - 44 | MYR19.408 | MYR853.952 |
| 88 - 132 | MYR19.136 | MYR841.984 |
| 176 + | MYR18.754 | MYR825.176 |
| *price indicative | ||
- RS Stock No.:
- 188-2527
- Mfr. Part No.:
- W25Q256JVFIQ
- Manufacturer:
- Winbond
Technical data sheets
Legislation and Compliance
Product Details
256M-bit Serial Flash Memory with uniform 4KB sectors and Dual/Quad SPI.
3 or 4-Byte Addressing Modes
4 I/O Fixed
UID & OTP Feature
Individual Block/Sector Write Protection
Volatile & Non-Volatile Status Registers
4 I/O Fixed
UID & OTP Feature
Individual Block/Sector Write Protection
Volatile & Non-Volatile Status Registers
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Memory Size | 256Mbit |
| Interface Type | Quad-SPI |
| Package Type | SOIC |
| Pin Count | 16 |
| Organisation | 32M x 8 bit |
| Mounting Type | Surface Mount |
| Cell Type | NOR |
| Minimum Operating Supply Voltage | 2.7 V |
| Maximum Operating Supply Voltage | 3.6 V |
| Block Organisation | Symmetrical |
| Length | 10.49mm |
| Height | 2.34mm |
| Width | 7.59mm |
| Dimensions | 10.49 x 7.59 x 2.34mm |
| Minimum Operating Temperature | -40 °C |
| Number of Words | 32M |
| Maximum Random Access Time | 6ns |
| Series | W25Q |
| Maximum Operating Temperature | +85 °C |
| Number of Bits per Word | 8bit |
