STEGO Filter Fan Plus FPI Series Filter Fan, 230 V ac, AC Operation, 42m³/h Filtered, 52m³/h Unimpeded, IP54, 152 x
- RS Stock No.:
- 915-9980
- Mfr. Part No.:
- 01871.0-30
- Manufacturer:
- STEGO
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
28 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR299.92
| Units | Per Unit |
| 1 - 4 | MYR299.92 |
| 5 - 11 | MYR290.92 |
| 12 - 24 | MYR282.22 |
| 25 - 49 | MYR275.93 |
| 50 + | MYR269.93 |
- RS Stock No.:
- 915-9980
- Mfr. Part No.:
- 01871.0-30
- Manufacturer:
- STEGO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

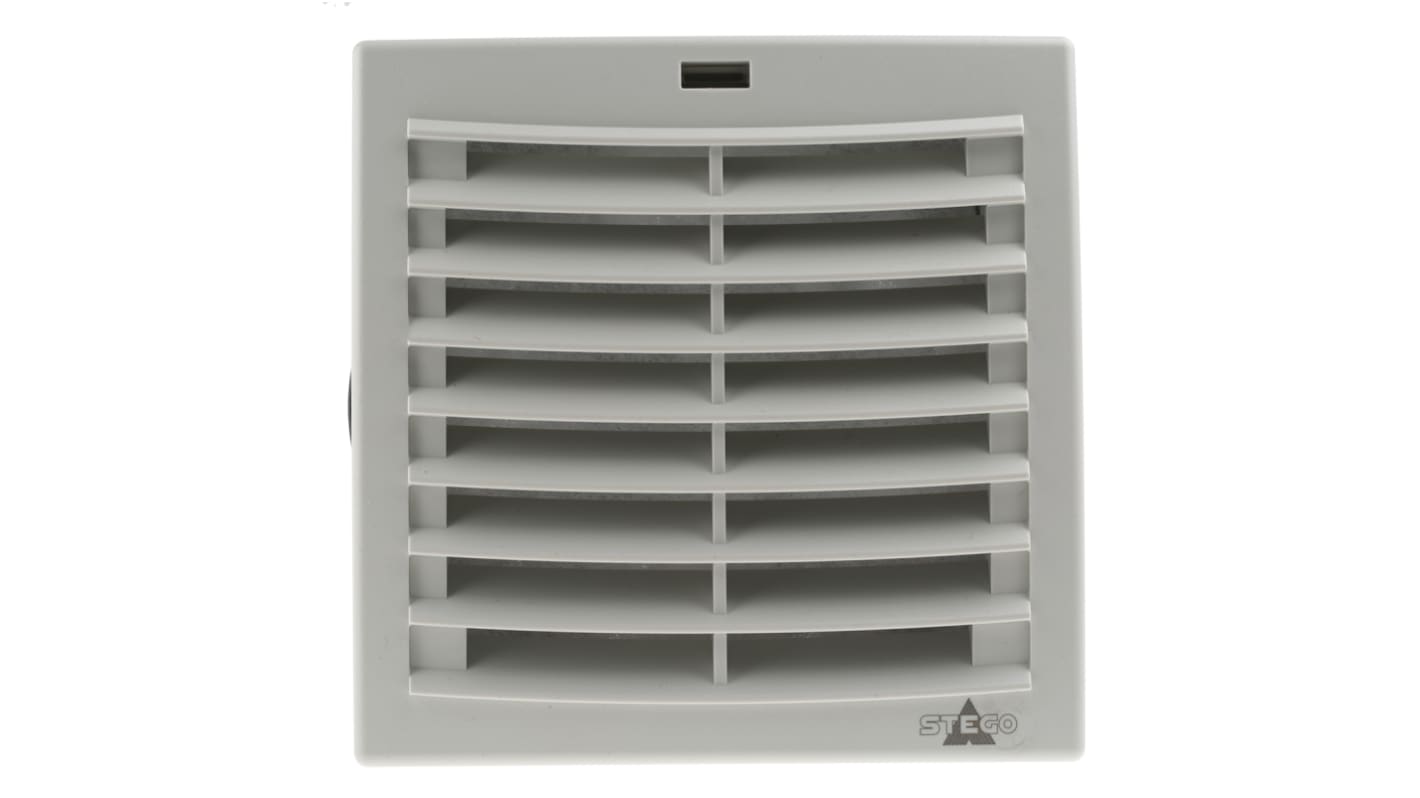

Stego Elektrotechnik Filter Fan
The Stego Elektrotechnik filter fan provides a filtered airflow of 42m³/h and has a supply voltage rating of 230VAC. This fan is designed to optimise climate efficiency within enclosures and cabinets containing electronic/electrical components. The electronic components generate heat and these units disperse that heat with cooler, filtered air from outside the enclosure. By reducing the heat inside the enclosure, this fan improves the performance and reliability of the electronic items and ultimately the cost is reduced. It has a face height of 152mm, face width of 152mm and installation depth of 66mm.
Features and Benefits
New air-flap outlet technology for high airflow
Easy mounting
Single filter mat system design
Filter fan located in the lower part of the enclosure draws cleaner, cooler air into the enclosure
FPI system consists of a filter fan and exhaust filter (ordered separately)
Designed for indoor use
Wire termination type
Easy mounting
Single filter mat system design
Filter fan located in the lower part of the enclosure draws cleaner, cooler air into the enclosure
FPI system consists of a filter fan and exhaust filter (ordered separately)
Designed for indoor use
Wire termination type
Certifications
IP54 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
Specifications
Attribute | Value |
|---|---|
| Unimpeded Air Flow | 52m³/h |
| Noise Level | 49dB(A) |
| Filtered Air Flow | 42m³/h |
| Input Current | 120mA |
| Input Power Rating | 19W |
| AC or DC Operation | AC |
| Face Dimensions | 152 x 152mm |
| Installation Depth | 66mm |
| Supply Voltage | 230 V ac |
| Face Height | 152mm |
| Face Width | 152mm |
| IP Rating | IP54 |
| Configuration | Rectangular |
| Bearing Type | Ball |
| Series | Filter Fan Plus FPI |
| Termination Type | Wire |
| Special Features | Easy Mounting, New Air Flap Outlet Technology for High Airflow, One Filter Mat, Ratchet Mechanism is Used for Mounting and Provides High Stability and Tightness |
