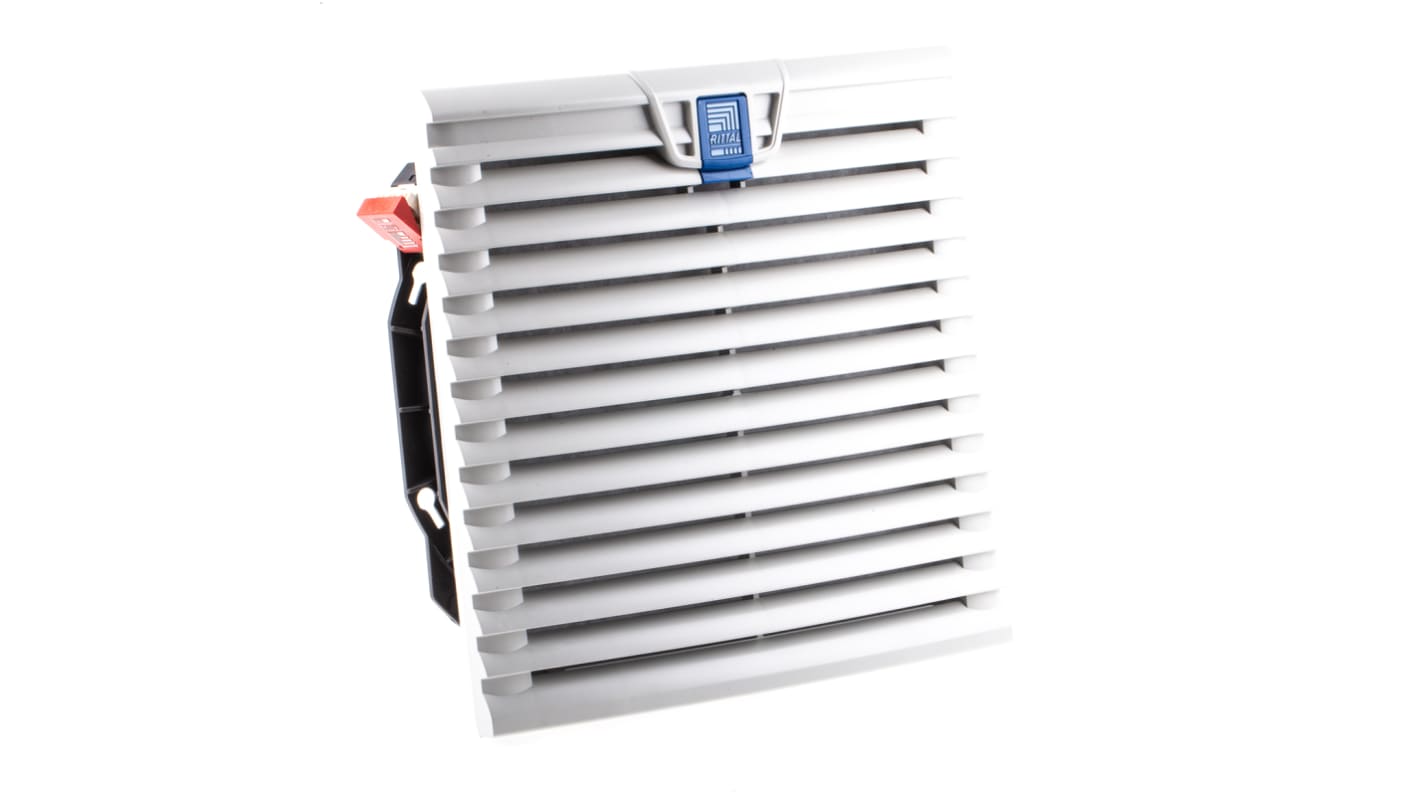

Filter Fan, 255 x 255mm, 205m³/h, 230 V ac, IP54

  • RS Stock No. 756-9802
  • Mfr. Part No. 3241.100
  • Manufacturer Rittal
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Rittal TopTherm Fan and Filter Units

Rittal TopTherm fan and filter units are efficient, easy to assemble and versatile. The TopTherm series requires no tools during assembly, exchange or maintenance. The fan module and power connection are simple to position to suit the needs of the application, a latch on the grille allows for fast filter replacement and the electrical connections are managed with spring clamp terminals. TopTherm units feature efficient technology that enables greater pressure stability and more constant air flows.

Stock No: 756-9935 is a temperature indicator.

Features and Benefits:
• Flexible assembly options
• Minimum installation depth
• Even air distribution

Specifications
Attribute Value
Unimpeded Air Flow 250m³/h
Noise Level 56dB
Filtered Air Flow 205m³/h
Input Current 280mA
Input Power Rating 46W
AC or DC Operation AC
Face Dimensions 255 x 255mm
Installation Depth 107mm
Supply Voltage 230 V ac
Face Height 255mm
Face Width 255mm
IP Rating IP54
68 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 1,010.50
units
Per unit
1 - 9
MYR1,010.50
10 - 24
MYR967.58
25 - 49
MYR922.62
50 - 99
MYR875.38
100 +
MYR872.22
