Filter fan, size 3, 177mm sq cut-out, 10

  • RS Stock No. 184-9903
  • Mfr. Part No. 7F.20.8.120.3100
  • Manufacturer Finder
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

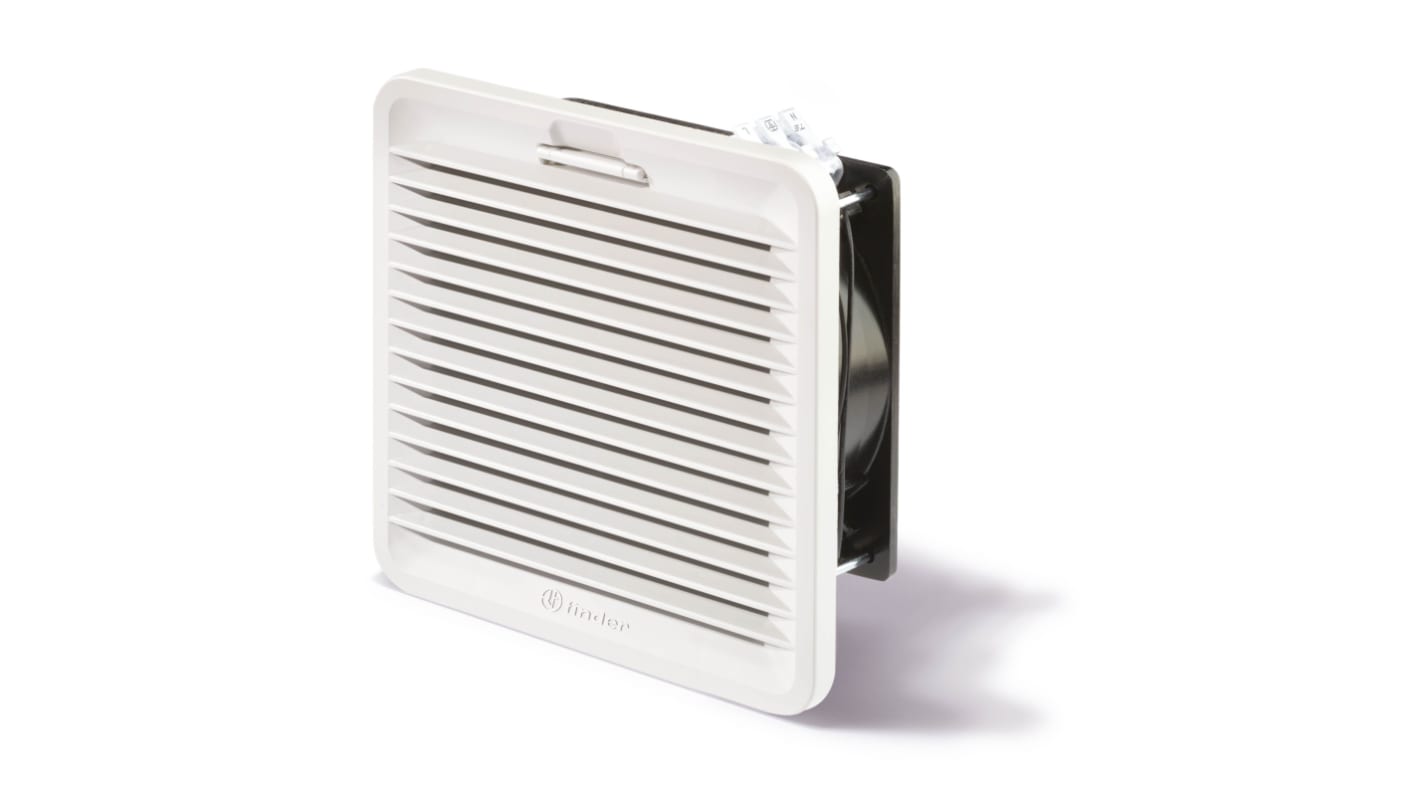

Filter Fan for electrical cabinets and enclosures 120 V or 230 V AC versions.

Very low acoustic noise
Minimal depth within enclosure
Air volume (14…470) m³/h (with Exhaust Filter installed in cabinet)
Air volume (24...630) m³/h (free flow)
Operating voltage: 24 VDC, 120 V AC, 230 V AC
Air conditioners
Automatic car-washes
Carousel warehouses
Control panels

Specifications
Attribute Value
Noise Level 42dB(A)
Filtered Air Flow 100m³/h
Input Current 250mA
Input Power Rating 28W
AC or DC Operation AC
Face Dimensions 209 x 209mm
Installation Depth 71.2mm
Supply Voltage 120 V ac
Face Height 209mm
Face Width 209mm
Bearing Type Ball
IP Rating IP54
Special Features Minimal Depth within Enclosure, Very Low Acoustic Noise
Series 7F
Termination Type Wire
17 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 506.24
units
Per unit
1 - 4
MYR506.24
5 +
MYR491.10
