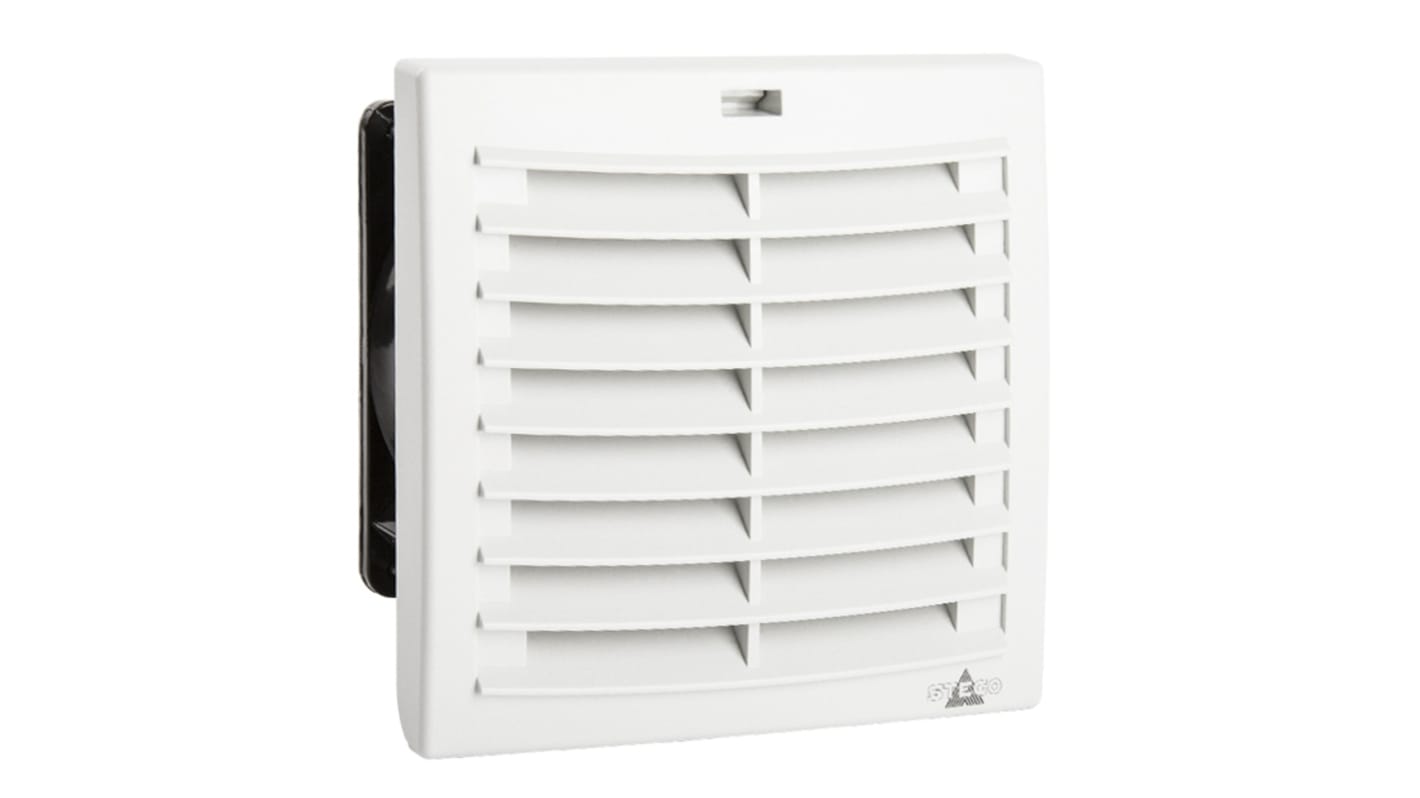

STEGO FPI/FPO 018 Series Filter Fan, 48 V dc, DC Operation, 63m³/h Filtered, 125m³/h Unimpeded, IP54, 124 x 124mm
- RS Stock No.:
- 182-9837
- Mfr. Part No.:
- 01881.1-00
- Manufacturer:
- STEGO
Temporarily out of stock - back order for despatch 15/07/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR834.90
| Units | Per Unit |
| 1 - 4 | MYR834.90 |
| 5 + | MYR824.01 |
- RS Stock No.:
- 182-9837
- Mfr. Part No.:
- 01881.1-00
- Manufacturer:
- STEGO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
New air-flap outlet technology for high airflow
Easy mounting
Protection type test/Environmental rating by independent testing institutes (VDE & UL)
Two systems for optimal airflow (FPI/FPO)
Standard enclosure cut-out sizes
One filter mat
Easy mounting
Protection type test/Environmental rating by independent testing institutes (VDE & UL)
Two systems for optimal airflow (FPI/FPO)
Standard enclosure cut-out sizes
One filter mat
Specifications
Attribute | Value |
|---|---|
| Unimpeded Air Flow | 125m³/h |
| Noise Level | 50dB |
| Filtered Air Flow | 63m³/h |
| Input Current | 88mA |
| Input Power Rating | 4.2W |
| AC or DC Operation | DC |
| Face Dimensions | 124 x 124mm |
| Installation Depth | 79mm |
| Supply Voltage | 48 V dc |
| Face Height | 124mm |
| Face Width | 124mm |
| IP Rating | IP54 |
| Series | FPI/FPO 018 |
| Termination Type | Screw |
| Configuration | Square |
| Special Features | Protection Type Test/Environmental Rating by Independent Testing Institutes (VDE and UL), Two Systems for Optimal Airflow (FPI/FPO) |
| Bearing Type | Ball |
