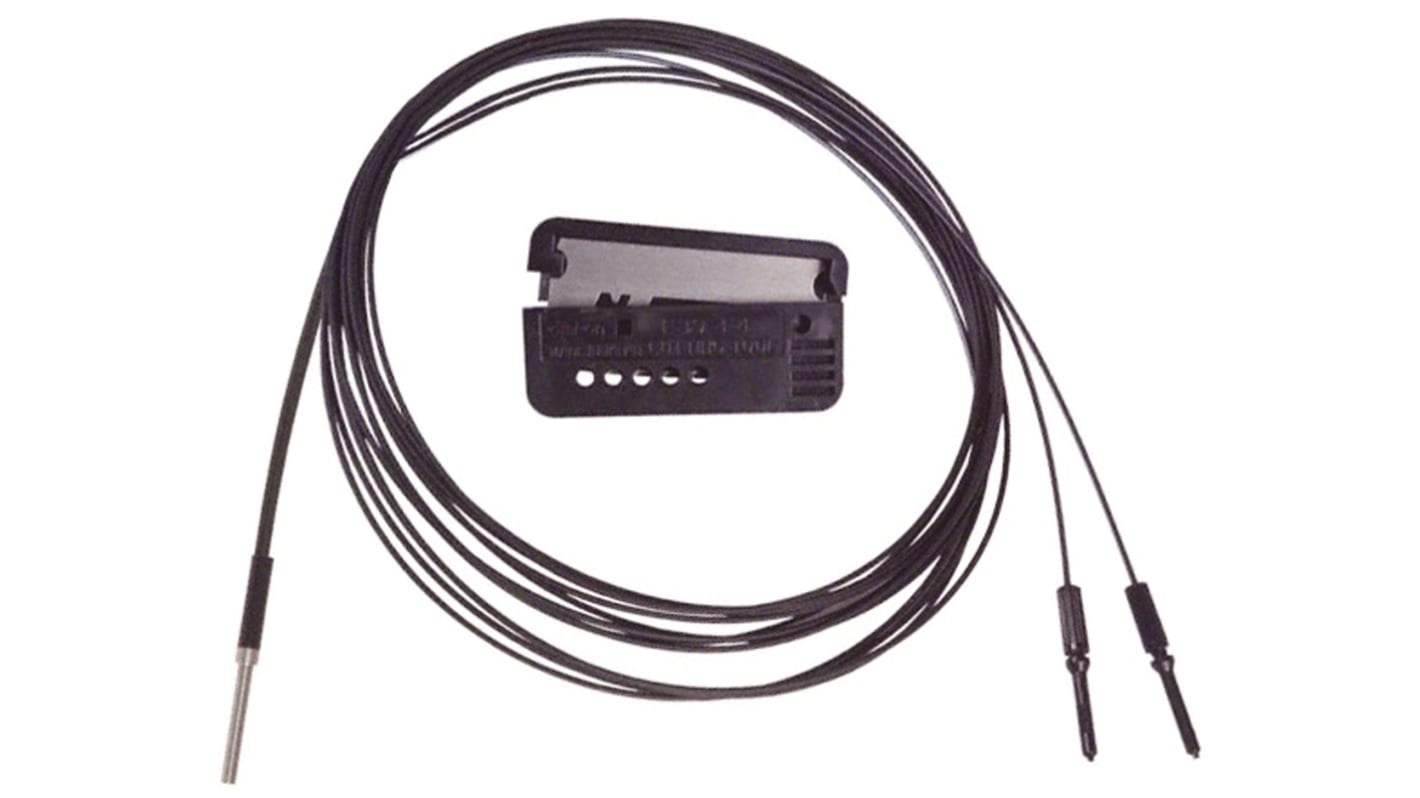

Omron Plastic Fibre Optic Sensor, IP67

  • RS Stock No. 820-9905
  • Mfr. Part No. E32-D22L
  • Manufacturer Omron
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

E32 Series Fibre Optic Sensing Heads

Various formats for a wide range of applications. IP67 (IP50 E32-L25)
All fibres are 2m long black PE.
Permissable bend radius 25mm min.
Trim to length with the cutting tool supplied for insertion into amplifier clamping apertures
Operating temperature range -40° to +70° C
Wafer-mapping ultraslim through-beam fiber

Specifications
Attribute Value
Fibre Optic Type Plastic
IP Rating IP67
Housing Material Nickel Plated Brass
Length 15mm
Width 3mm
Maximum Operating Temperature +70°C
Dimensions 3 (Dia.) x 15 mm
Minimum Operating Temperature -40°C
2 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 586.65
units
Per unit
1 +
MYR586.65
