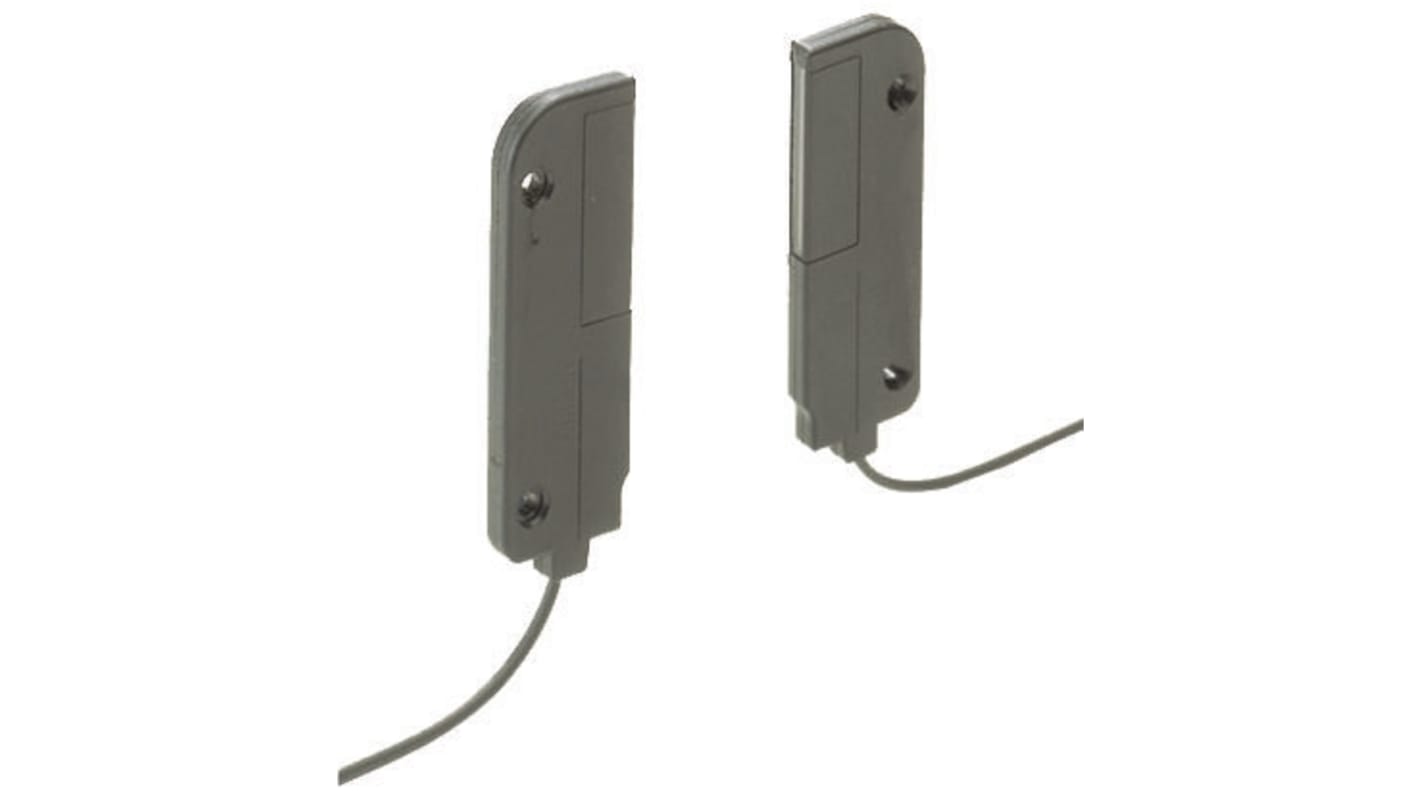

Omron Plastic Fibre Optic Sensor, IP50

  • RS Stock No. 667-2541
  • Mfr. Part No. E32-T16W
  • Manufacturer Omron
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Easy Mount E32 Fibre Optic Sensing Heads

E32 fibre optic sensors are available in various formats for a wide range of applications such as detecting the presence of workpieces and positioning.

Hi Flex fibres for use in Robotic applications where the cable is subject to bending
Easy mounting rectangular heads with fixing holes for quick installation
All models have 2m or 5m cable length which can be trimmed to size
For use with E3X fibre optic amplifiers

Specifications
Attribute Value
Detection Range 450 (Super High Speed Mode) mm, 1150 (High Speed Mode) mm, 1800 (Standard Mode) mm, 2300 (High Resolution Mode) mm
Fibre Optic Type Plastic
Terminal Type Wire Lead
Electrical Connection Cable
IP Rating IP50
Housing Material PVC Coating
Length 69mm
Width 5mm
Maximum Operating Temperature +55°C
Dimensions 69 x 5 x 23 mm
Minimum Operating Temperature -25°C
Depth 23mm
9 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 1,981.48
units
Per unit
1 - 5
MYR1,981.48
6 +
MYR1,942.01
