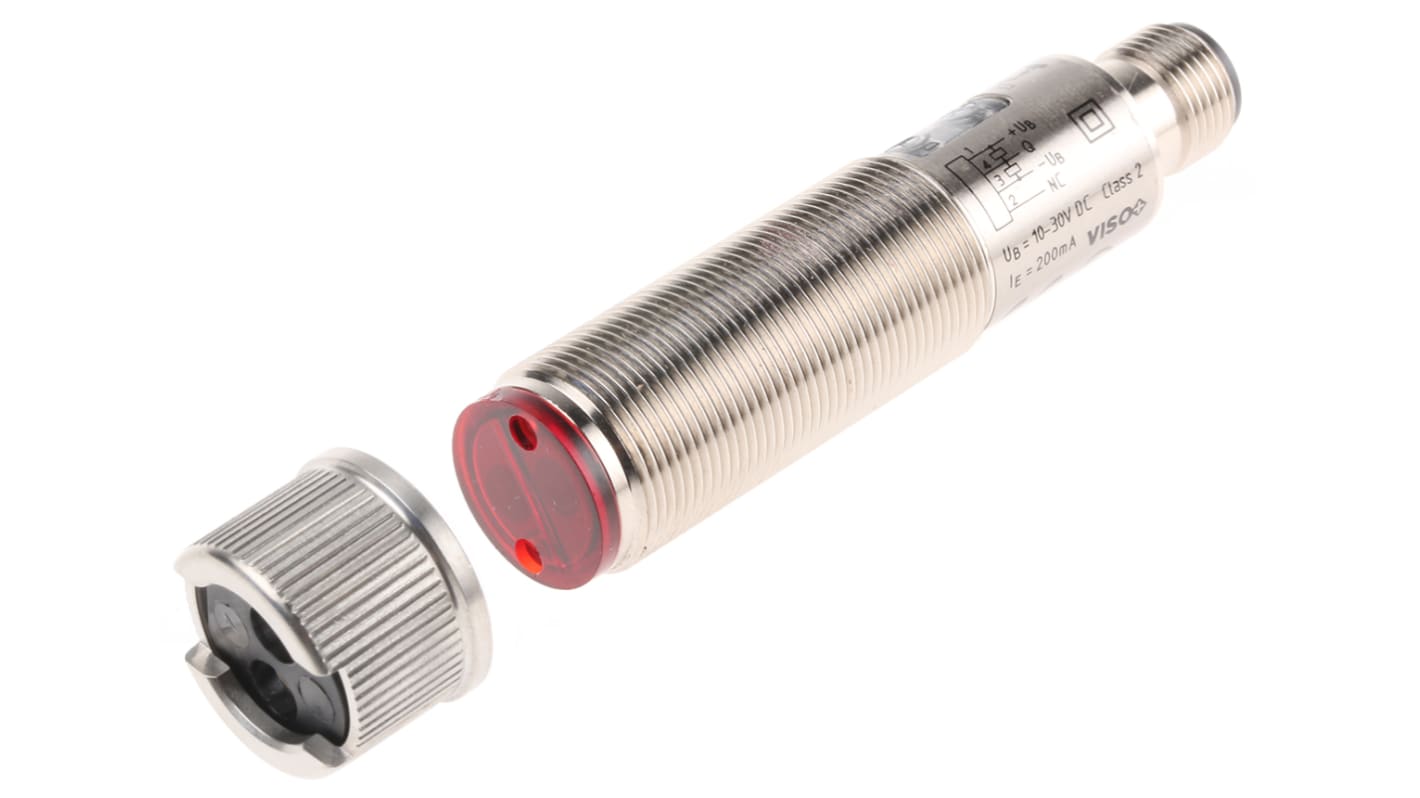

Pepperl + Fuchs Glass Fibre Optic Sensor 300 mm, Push Pull Output, IP67, 10 30 V dc

  • RS Stock No. 510-3520
  • Mfr. Part No. VL18LL-M/40A/118/128
  • Manufacturer Pepperl + Fuchs
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

M18 Fibre Amplifier

Pepperl & Fuchs VL18LL series fibre optic sensors offer many advantages, in particular for picking up small parts or in positions difficult to access. Suitable for use in rough environmental conditions, such as high temperatures or explosive conditions.
Depending on the fibre optic connected, the optical properties correspond to a single-path light barrier or a reflection light barrier. Single-path systems have one fibre optic each for transmitter and receiver. For reflection systems, the light is guided in a single fibre optic through separate transmitter and receiver fibres.

Light/dark switch as potentiometer
Clearly arranged control panel
Protection class 2
Not sensitive to ambient light, even with switched energy saving lamps
Multiple device installation possible, no mutual interference
Flashing power on LED in case of short-circuit
M12 connector 4 pin

Specifications
Attribute Value
Detection Range 300 mm
Output Type Push Pull
Fibre Optic Type Glass
Response Time 1 ms
Light Source Red LED
Electrical Connection M12 4-Pin
Switching Frequency 500 Hz
IP Rating IP67
Housing Material Nickel Plated Brass
Supply Voltage 10 30 V dc
Length 78mm
Width 11.2mm
Depth 7.8mm
Maximum Operating Temperature +70°C
Dimensions 78 x 11.2 x 7.8 mm
Minimum Operating Temperature -25°C
103 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 553.91
units
Per unit
1 - 4
MYR553.91
5 - 9
MYR540.07
10 +
MYR531.53
