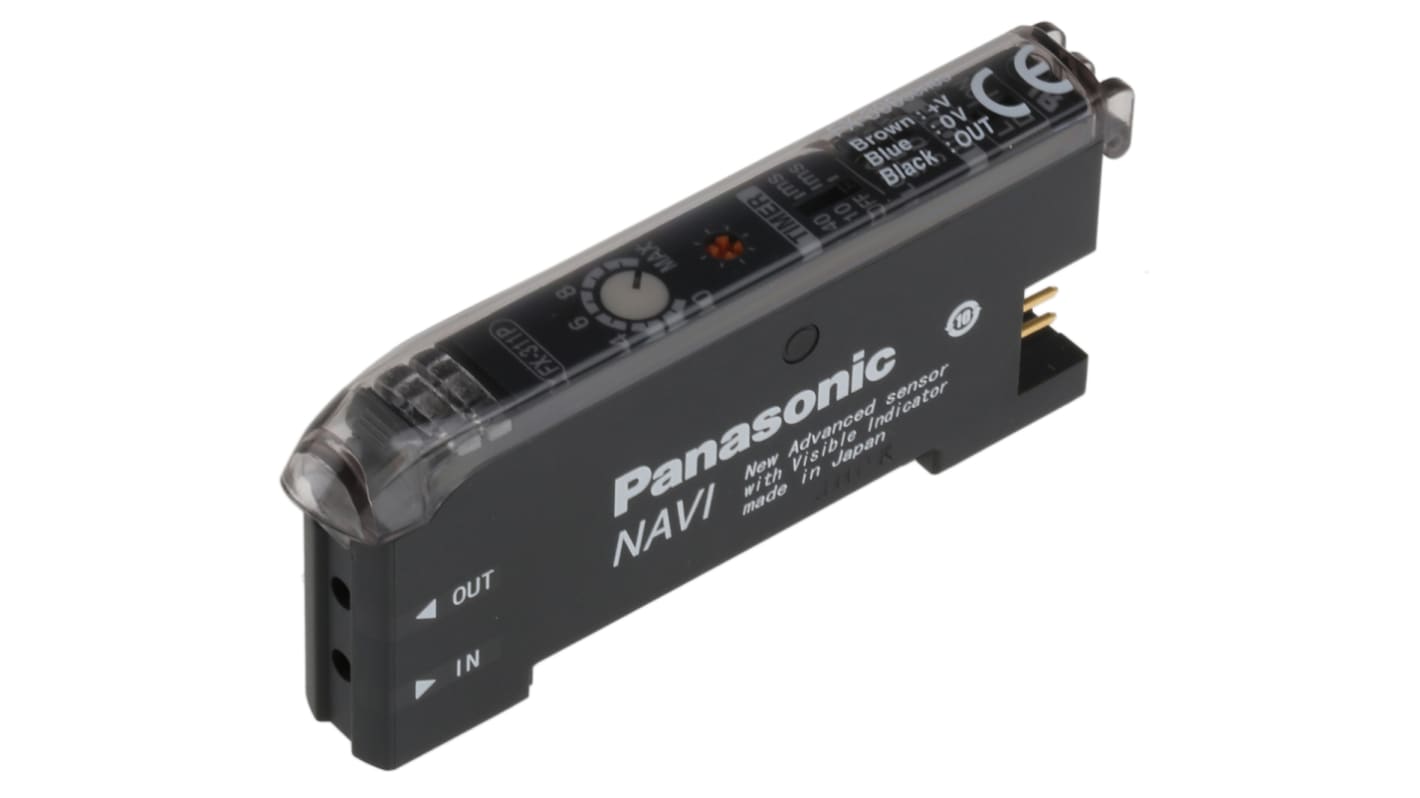

Panasonic Fibre Optic Sensor, PNP Output, 840 mW, 12 → 24 V dc

  • RS Stock No. 480-5269
  • Mfr. Part No. FX311P
  • Manufacturer Panasonic
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

FX311 — Amplifier for Fibre Optics

Increased range and sensor range
Two response times can be selected
Switch-off delay
LED status display
Compact design
Accessories: mains cable for supply and signal, 5 m length (CN73C5)

Specifications
Attribute Value
Output Type PNP
Response Time 2 ms
Light Source Red LED
Electrical Connection Cable
Power Consumption 840 mW
Supply Voltage 12 → 24 V dc
Length 30.5mm
Width 10mm
Minimum Operating Temperature -10°C
Maximum Operating Temperature +55°C
Depth 64.5mm
Dimensions 30.5 x 10 x 64.5 mm
5 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 611.18
units
Per unit
1 +
MYR611.18
