Sick Fibre Optic Sensor, PNP Output, IP66, 10 30 V dc

  • RS Stock No. 358-8402
  • Mfr. Part No. WLL260-F240
  • Manufacturer Sick
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): JP
Product Details

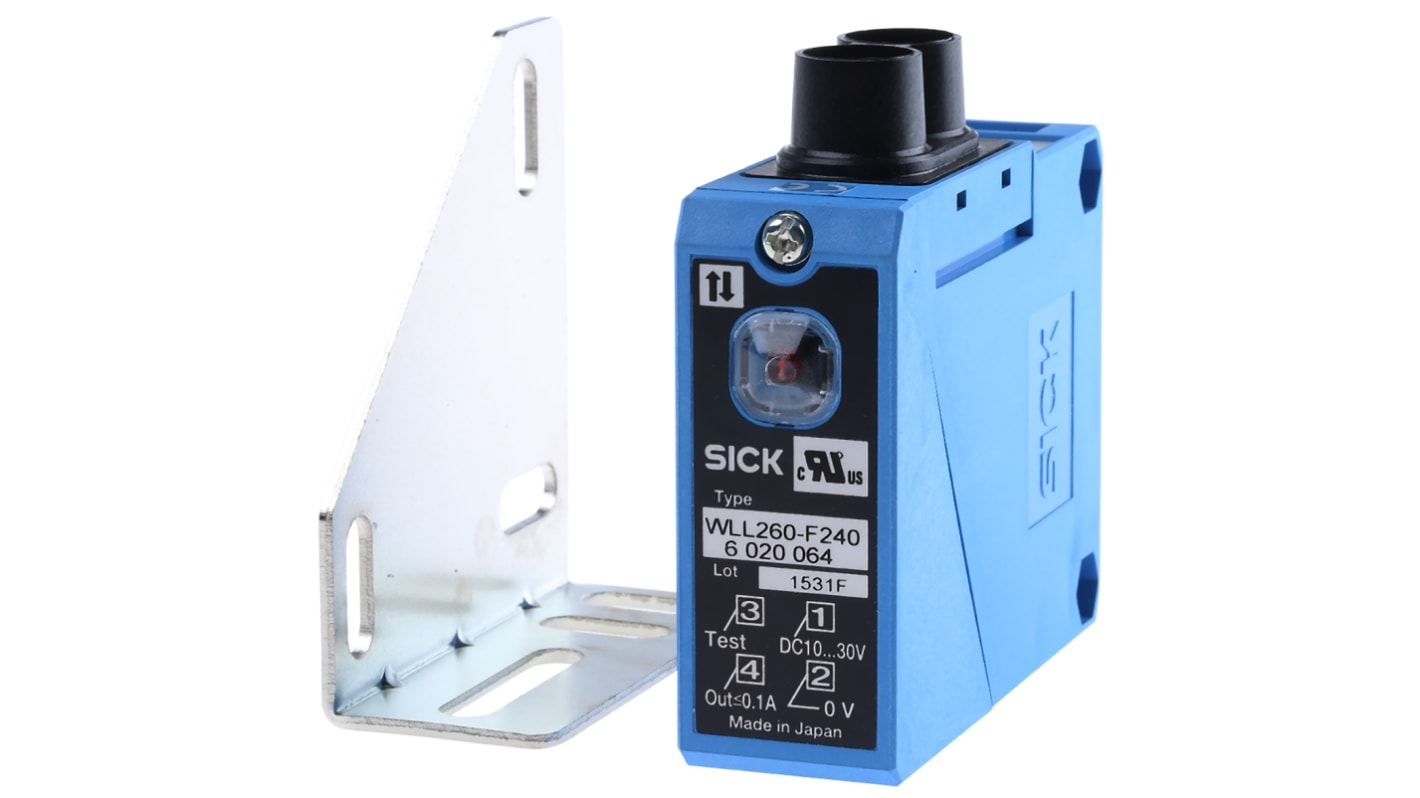

WLL260, HD Fibre Optic

Heavy duty fibre optic sensor module and a choice of through-beam or direct-detect glass fibre optic cables with stainless steel jackets.

PNP open collector output
Output short circuit and over current protected
No tools required to fit cables
Terminal chamber connection to module

Note

For through-beam use (straight or right-angled) 2 fibre optic cables must be ordered (see stock nos 303-0571, 303-0600, 303-0587 and 303-0593)

Supplied with

Mounting bracket

//media.rs-online.com/t_line/L303059-01.gif
//media.rs-online.com/t_line/LE303055-01.gif
//media.rs-online.com/t_line/LI303055-01.gif
Specifications
Attribute Value
Output Type PNP
Response Time <=0.7 ms
Light Source Red LED
Electrical Connection Cable
Switching Frequency 700 Hz
IP Rating IP66
Housing Material ABS
Supply Voltage 10 30 V dc
Length 63mm
Width 25mm
Maximum Operating Temperature +55°C
Minimum Operating Temperature -25°C
Dimensions 63 x 25 x 100 mm
Depth 100mm
10 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 767.73
units
Per unit
1 - 5
MYR767.73
6 +
MYR740.83
