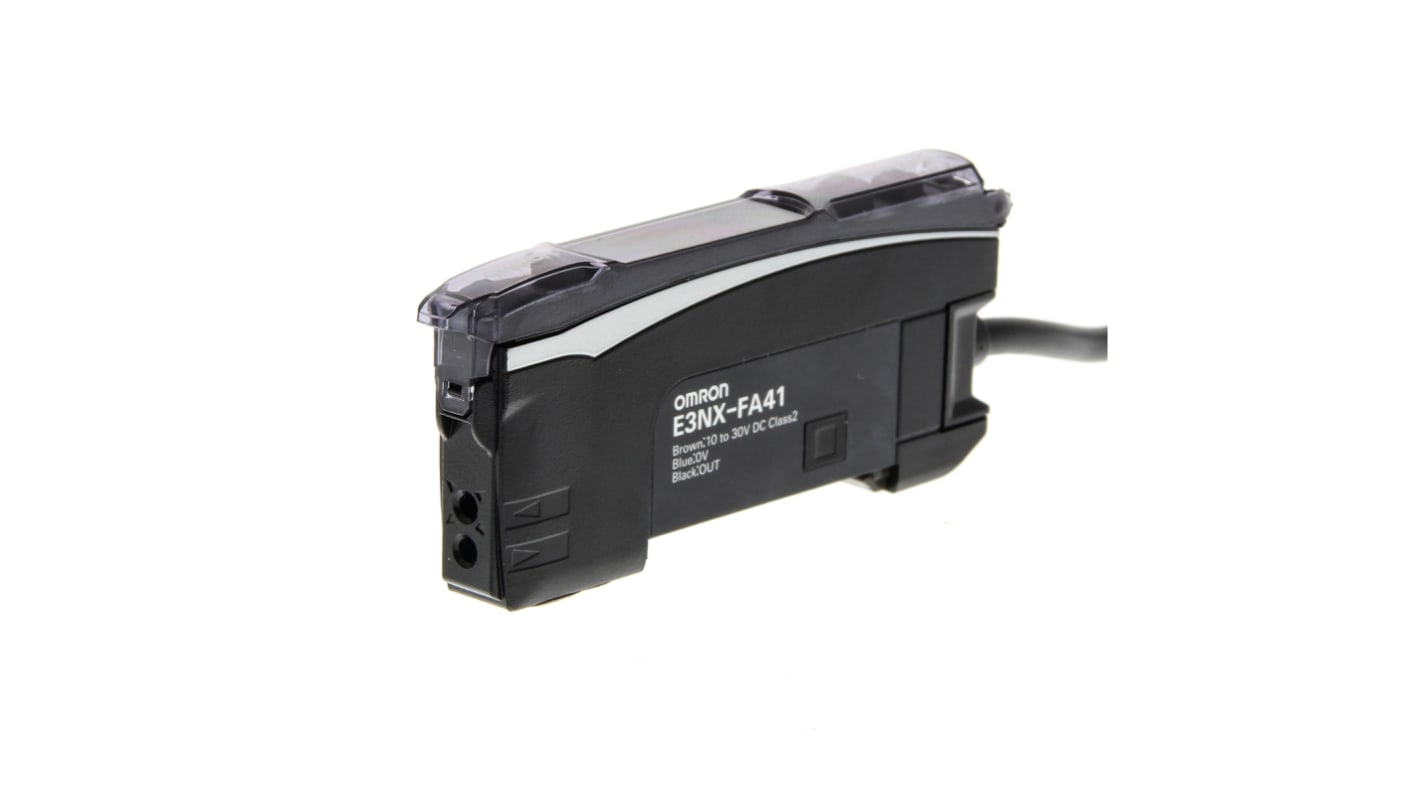

Omron Fibre Amplifier, PNP Output, 1.08 W, IP54, 30 V dc

  • RS Stock No. 175-0068
  • Mfr. Part No. E3NXFAH412MOMS
  • Manufacturer Omron
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

The Advanced Fiber Amplifier Units That Handles On-site Needs

Improved basic performance with 1.5 times the sensing distance and approx. 1/10th the minimum sensing object.
Ultra-easy setup with Smart Tuning with a light intensity adjustment range expanded 20 times to 40,000:1. Optimum stable detection achieved with light intensity adjustment even for saturated incident light.
White on black display characters for high visibility.
Solution Viewer that shows the passing time and difference in incident levels and Change Finder that allows you to see display values even for fast workpieces.
Compared to the E3X-HD.

Specifications
Attribute Value
Output Type PNP
Terminal Type Pre-Wired
Response Time 1 ms, 16 ms, 32 μs, 250 μs
Light Source LED
Power Consumption 1.08 W
IP Rating IP54
Housing Material Polycarbonate
Supply Voltage 30 V dc
Length 104.5mm
Width 10mm
Mounting Type DIN Rail
Maximum Operating Temperature +55°C
Standards Met CE Certified
Minimum Operating Temperature -25°C
Dimensions 104.5 x 10 x 33.5 mm
Depth 33.5mm
2 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 1,018.07
units
Per unit
1 +
MYR1,018.07
