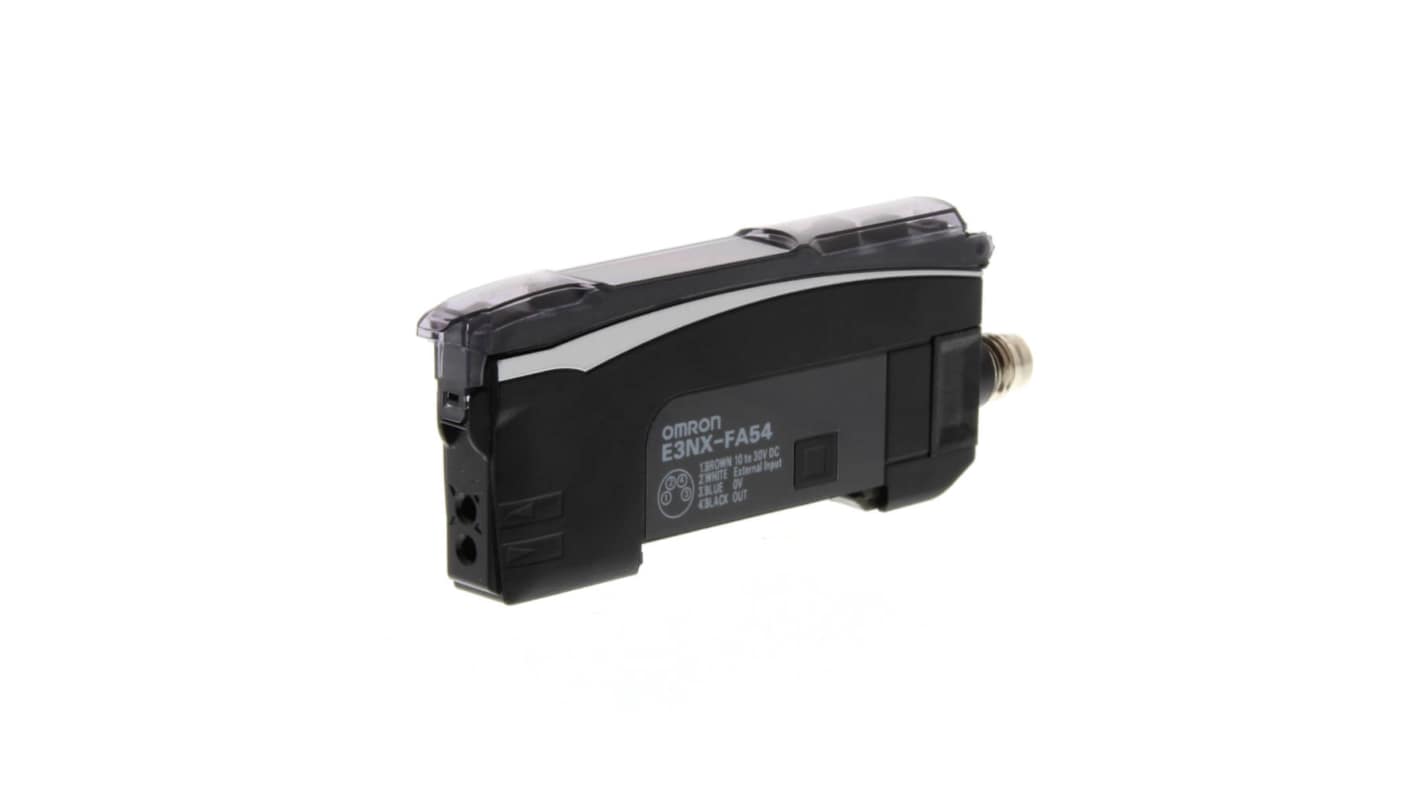

Omron Fibre Optic Sensor, PNP Output CC-Link, CompoNet, EthernetCAT, 920 mW @ 38 mA, 10 → 30 V dc

  • RS Stock No. 134-7842
  • Mfr. Part No. E3NX-FA54
  • Manufacturer Omron
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

E3NX-FA Smart Fibre Amplifier Units

The E3NX-A series of fibre amplifier units are advanced performance sensors for ultra stable and easy detection. The sensing distance and minimum sensing object specifications of the sensors have been improved allowing easy detection in a wide variety of applications. The sensor has a high contrast white on black display providing increased visibility even from a distance.

Advanced smart tuning, consistent for all users
Automatic adjustment to optimum incident level
Maintenance signal output to reduce downtime

Specifications
Attribute Value
Output Type PNP
Terminal Type 4 Pin M8 Connector
Response Time 1 (Standard Mode) ms, 16 (Giga Power Mode) ms, 30 (Super High Speed Mode) μs, 250 (High Speed Mode) μs
Light Source Red LED
Electrical Connection 4 Pin Connector
Power Consumption 920 mW @ 38 mA
Switching Frequency 50 Hz, 60 Hz
Housing Material Polycarbonate
Supply Voltage 10 → 30 V dc
Length 104.8mm
Width 33.5mm
Interface CC-Link, CompoNet, EthernetCAT
Maximum Operating Temperature +55°C
Standards Met CE, IEC 60947-1
Dimensions 104.8 x 33.5 x 10 mm
Minimum Operating Temperature -25°C
Depth 10mm
Mounting Type DIN Rail
3 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 1,178.31
units
Per unit
1 +
MYR1,178.31
