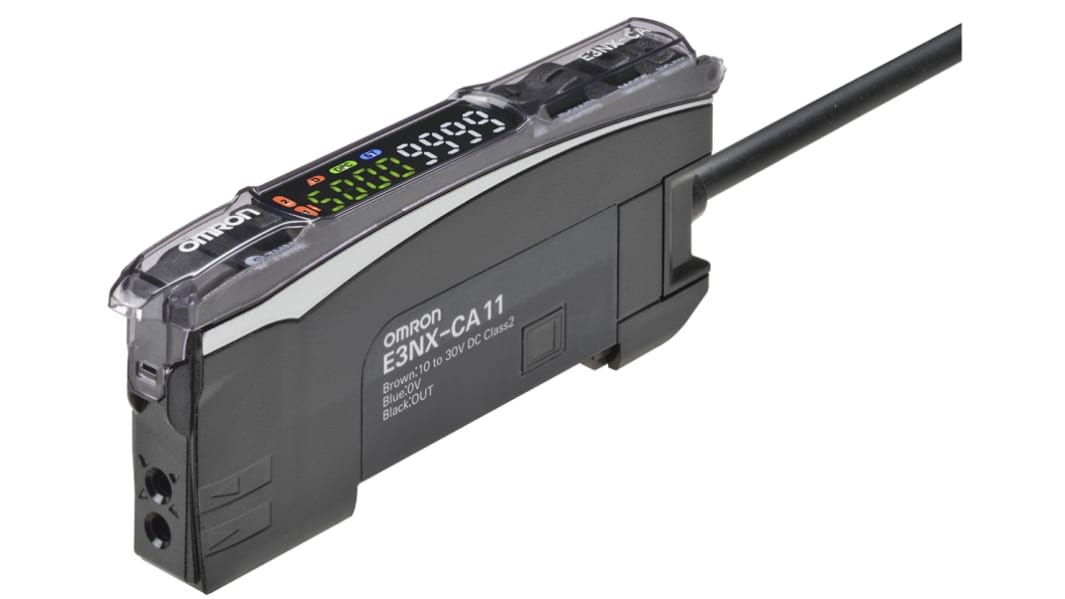

Omron Fibre Amplifier, PNP Output IO-Link, 1.08 W, IP20, 10 30 V dc

  • RS Stock No. 124-4431
  • Mfr. Part No. E3NXCA412M
  • Manufacturer Omron
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

E3NX-CA Series Colour Mark Fibre Amplifiers

Omron E3NX-CA series colour mark fibre amplifier units are advanced performance sensors for detection of subtle colour differences. The sensing distance and minimum sensing object specifications of the sensors have been improved allowing easy detection in a wide variety of applications. The white LED optic system increases the light intensity, and the low-noise circuit in the Smart Fibre Amplifier Unit provides a reliable detection capability.

Features and Benefits

• The Omron colour mark fibre amplifiers have high colour discrimination capability, whilst maintaining the easy operation from previous versions.
• The amplifier is able to handle glossy workpieces and colourful packaging offering stable detection on items previously troublesome for conventional systems.
• Reduces the number of troubleshooting requests.
• Users can automatically adjust the optimum incident level and intensity using a button.
• Advanced smart tuning, consistent for all users.
• The amplifier detects all RGB wavelengths included in light reflected from the workpiece, and RGB data can be displayed on the unit.
• IoT compatible.
• S/N ratio improved four times.
• Maintenance signal output to reduce downtime.

Specifications
Attribute Value
Output Type PNP
Terminal Type Pre-Wired
Response Time 1 (Standard Mode) ms, 16 (Giga-Power Mode) ms, 50 (Super High Speed Mode) μs, 250 (High Speed Mode) μs
Light Source White LED
Electrical Connection Pre-Wired Cable
Power Consumption 1.08 W
IP Rating IP20
Housing Material PC
Supply Voltage 10 30 V dc
Length 104.8mm
Width 33.5mm
Interface IO-Link
Dimensions 104.8 x 33.5 x 10 mm
Maximum Operating Temperature +40 (30 Units)°C
Mounting Type DIN Rail
Standards Met CE, IEC 60947-1, UL Certified
Depth 10mm
Minimum Operating Temperature -25 (30 Units)°C
1 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 1,176.46
units
Per unit
1 +
MYR1,176.46
