Omron Plastic Fibre Optic Sensor, IP67

  • RS Stock No. 458-525
  • Mfr. Part No. E32-C31N 2M
  • Manufacturer Omron
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

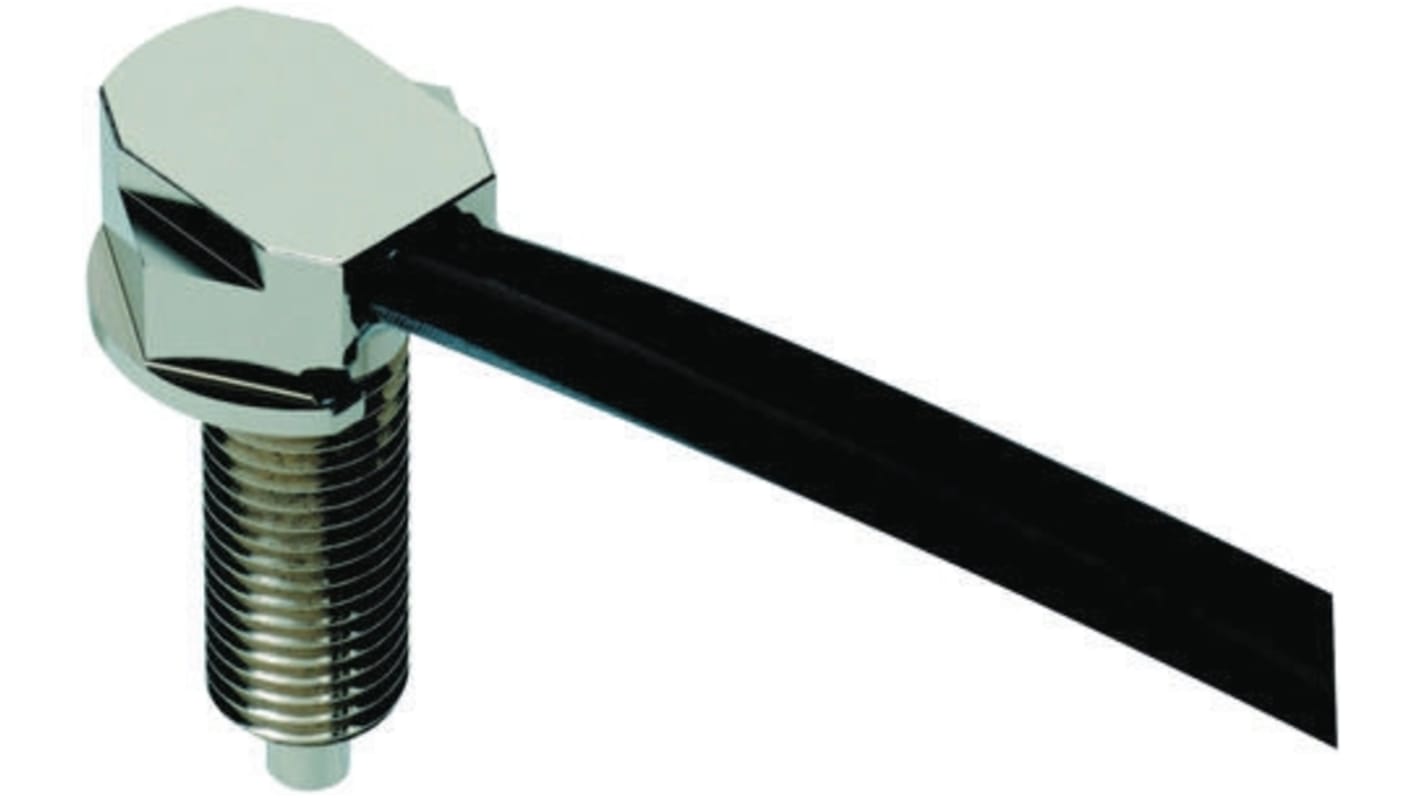

E32 N Fibre Optic Sensing Heads (Right Angled)

Fibre optic sensor heads that allow quick and easy mounting
One nut mounting for quick installation
Bending radius of only 1 mm
Highly flexible due to multicore fibres
Right angle design allows tight fixing
Suitability for E3X-DAC-S and E3X-MDA amplifiers

Note

The sensing distance is measured using white paper as a sensing object.

Specifications
Attribute Value
Detection Range 7 (Super High Speed Mode) mm, 23 (High Speed Mode) mm, 25 (Standard Mode) mm, 40 (High Resolution Mode) mm
Fibre Optic Type Plastic
Terminal Type Wire Lead
Electrical Connection Cable
IP Rating IP67
Housing Material Plastic, PVC
Length 20.5mm
Minimum Operating Temperature -40°C
Maximum Operating Temperature +70°C
Dimensions 20.5 x M3 x 0.5 mm
9 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 668.98
units
Per unit
1 - 5
MYR668.98
6 +
MYR662.36
