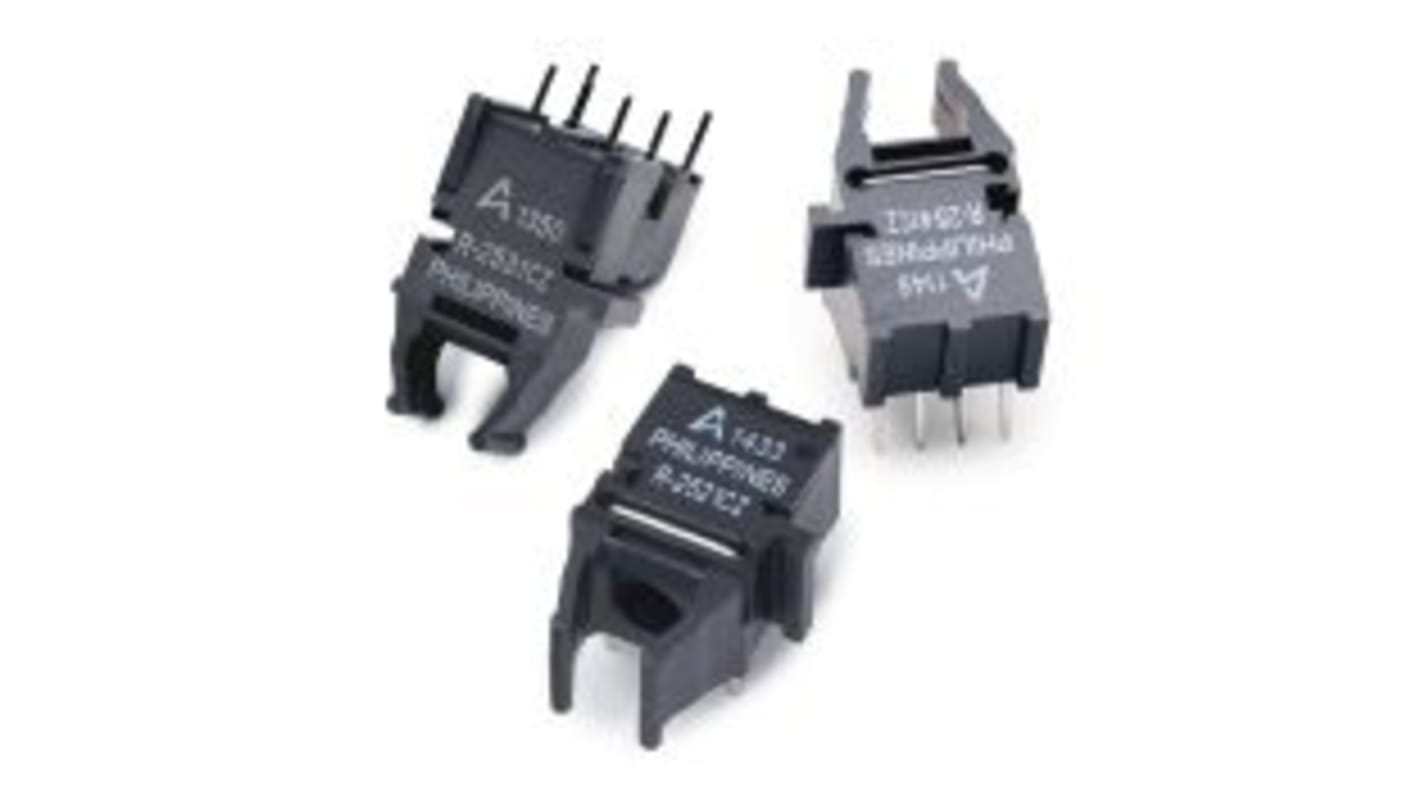

Broadcom AFBR-2521CZ 5Mbit/s 685nm Fibre Optic Receiver
- RS Stock No.:
- 189-4760
- Mfr. Part No.:
- AFBR-2521CZ
- Manufacturer:
- Broadcom
Temporarily out of stock - back order for despatch 12/06/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Tube of 200)
MYR69.681
| Units | Per Unit | Per Tube* |
| 200 - 200 | MYR69.681 | MYR13,936.20 |
| 400 - 600 | MYR68.148 | MYR13,629.60 |
| 800 + | MYR66.893 | MYR13,378.60 |
| *price indicative | ||
- RS Stock No.:
- 189-4760
- Mfr. Part No.:
- AFBR-2521CZ
- Manufacturer:
- Broadcom
Technical data sheets
Legislation and Compliance
Product Details
AFBR-25x1CZ Series Fibre Optic Receivers
The AFBR-25x1 Z Versatile Link series from Avago Technologies are fibre optic link transmitters. There are three different packages available. The AFBR-2521CZ is a horizontal package, AFBR-2531CZ vertical and AFBR-2541CZ is the tilted (30°) Package. The receiver consists of an IC with photodiode that offers a TTL logic output. Whereas the transmitter has a signal from DC to 5 MBd up to 50 M. Applications include drivers and inverters, RS-232 and RS-485 extensions, Industrial control and factory automation.
AFBR-25x1CZ Fibre Optic Receiver for 1 mm POF and 200 μm PC
Versatile Link housing: Compatible with Avago Technologies Versatile Link family of connectors
Space saving
Inverted output signals
RoHS-compliant
Receiver: integrated PIN diode and digitalising IC with TTL output logic
Power-on reset (POR)
50 M distance with 1 mm (POF)/ 500 M distance with 200 μm Polymer Cladding Silica (PCS) Fibre
Operating temperature range of -40 °C to +90 °C
Versatile Link housing: Compatible with Avago Technologies Versatile Link family of connectors
Space saving
Inverted output signals
RoHS-compliant
Receiver: integrated PIN diode and digitalising IC with TTL output logic
Power-on reset (POR)
50 M distance with 1 mm (POF)/ 500 M distance with 200 μm Polymer Cladding Silica (PCS) Fibre
Operating temperature range of -40 °C to +90 °C
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Fibre Optics, Avago Technologies
Specifications
Attribute | Value |
|---|---|
| Maximum Data Rate | 5Mbit/s |
| Wavelength of Peak Sensitivity | 685nm |
| Number of Pins | 6 |
| Mounting Type | Through Hole |
| Dimensions | 18.8 x 12.2 x 7.6mm |
| Height | 7.6mm |
| Length | 18.8mm |
| Width | 12.2mm |
| Series | AFBR |
| Output Signal Type | TTL |
