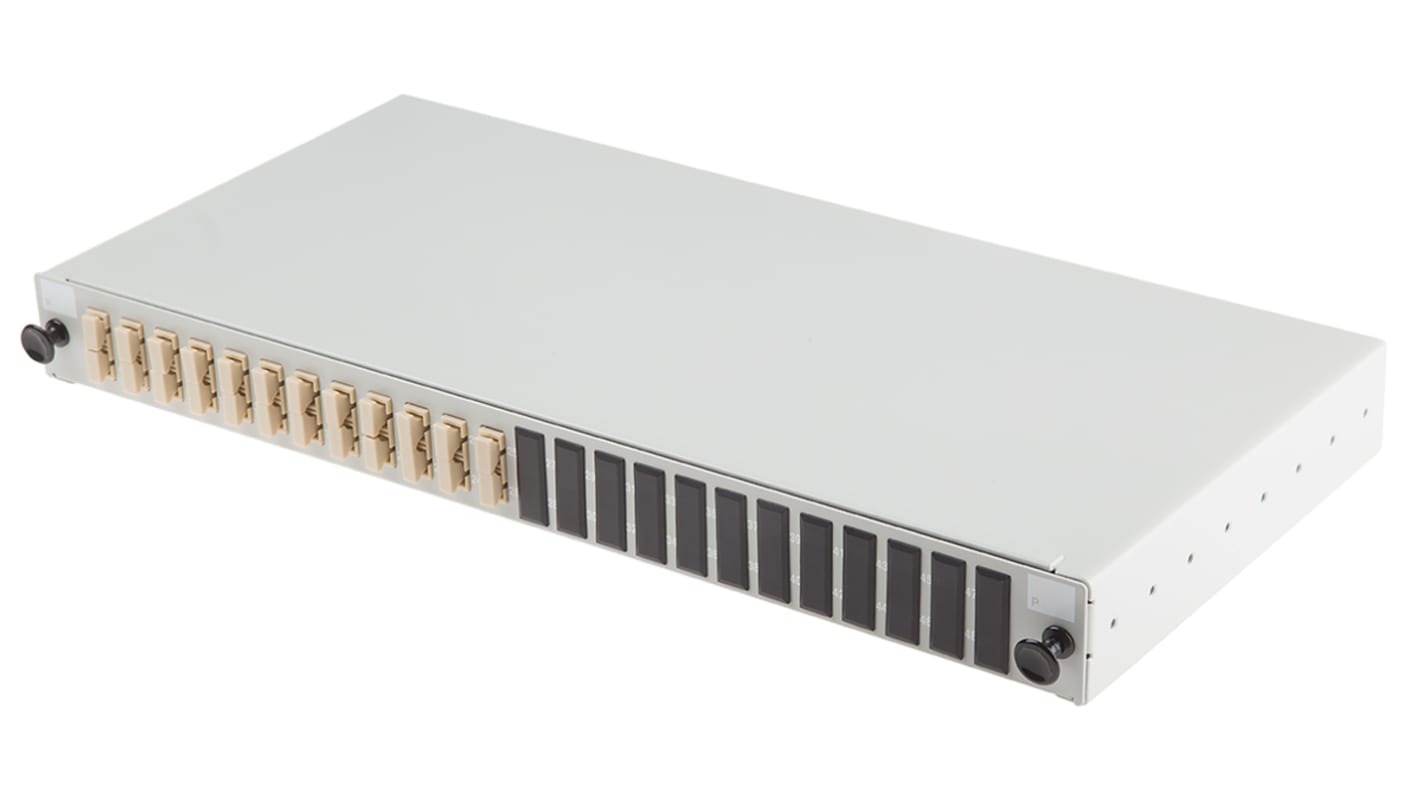

RS PRO 12 Port SC Multimode Duplex Fibre Optic Patch Panel With 12 Ports Populated, 1U

  • RS Stock No. 536-8755
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Sliding Patch Panels - SC/ST

19in. 1U metal patch panel
Pre-loaded with multimode adaptors and splice cartridge
19in. angled bracket, screw connection and cable support included
Drawer can be removed for splice work or hung at a 45° angle
Cable entry options 2x20mm / 4x10mm gland holes
Fastening lug for multifibre buffer or pigtails

Specifications
Attribute Value
Connector Type SC
Number of Ports 12
Number of Populated Ports 12
Panel Type Sliding
Single/Multimode Multimode
Simplex/Duplex Duplex
Rack Height 1U
Dimensions 44 x 483 x 200mm
Depth 200mm
Height 44mm
Width 483mm
Stock check temporarily unavailable - call for stock availability
Price Each
Was MYR424.17
MYR 419.76
units
Per unit
1 - 14
MYR419.76
15 +
MYR409.49
