RS PRO SC to Unterminated Simplex Single Mode OS1, OS2 Fibre Optic Cable, 900μm, 2m

RS Stock No.:: 121-4222
Manufacturer:: RS PRO

RS PRO SC to Unterminated Simplex Single Mode OS1, OS2 Fibre Optic Cable, 900μm, 2m

10 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR240.33

Units	Per Unit
1 - 19	MYR240.33
20 - 99	MYR235.29
100 +	MYR193.64

RS Stock No.:: 121-4222
Manufacturer:: RS PRO

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

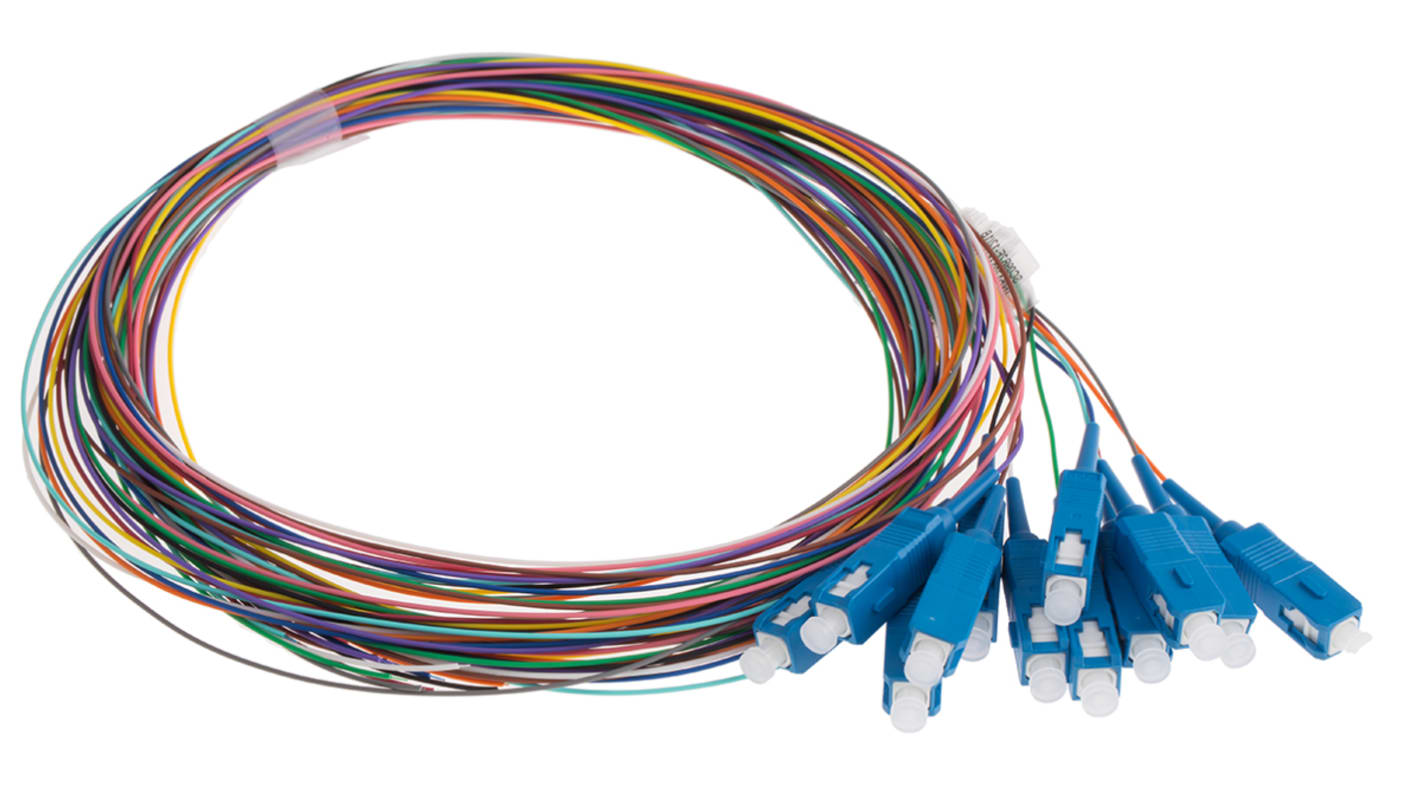

RS Pro Fibre Optic Pigtails

From the trusted RS Pro brand, a range of fibre optic pigtails with ST, E2000 LC and SC connections.
The single mode pigtails are terminated with standard connectors and also feature a protective cap on the zirconia ceramic ferrule. The fibre optic cable assemblies in this range are available in standard white 1 m lengths or packs of 12 assorted colours in 10 m lengths
Part number 121-3943 ST simplex 1 m
Part number 121-3944 E2000 simplex 1 m
Part number 121-4221 LC simplex 2 m each with assorted colours
Part number 121-4222 SC simplex 2 m each with assorted colours
Part number 121-4223 LC simplex OM3 2 m each with assorted colours
Part number 121-4224 SC simplex OM3 2 m each with assorted colours

Features and Benefits

LSZH buffer
REACH, RoHS
900um tight buffer or easy strip structure

Applications

Telecom
Patch panels
Wall Boxes
ODFS
Splice cassettes

Specifications

Attribute	Value
Length	2m
Connector 1	SC
Propagation Mode	Single Mode
Connector 2	Unterminated
Terminated/Unterminated	Terminated
Core Diameter	900µm
Cable Construction	Simplex
Fibre Type	OS1, OS2
Maximum Operating Temperature	+60°C
Sheath Material	Low Smoke Zero Halogen (LSZH)
Minimum Operating Temperature	-20°C
Maximum Pulling Tension	6N
Standards Met	2011/65/EU, EIA-TIA, IEC, IEC 61300-2-1, IEC 61300-2-12, IEC 61300-2-2, IEC 61300-2-4, IEC 61300-2-5, IEC 61300-3-34, IEC 61300-3-4, IEC 61300-3-6, IEC 61754-4, REACH/SvHC Compliant
