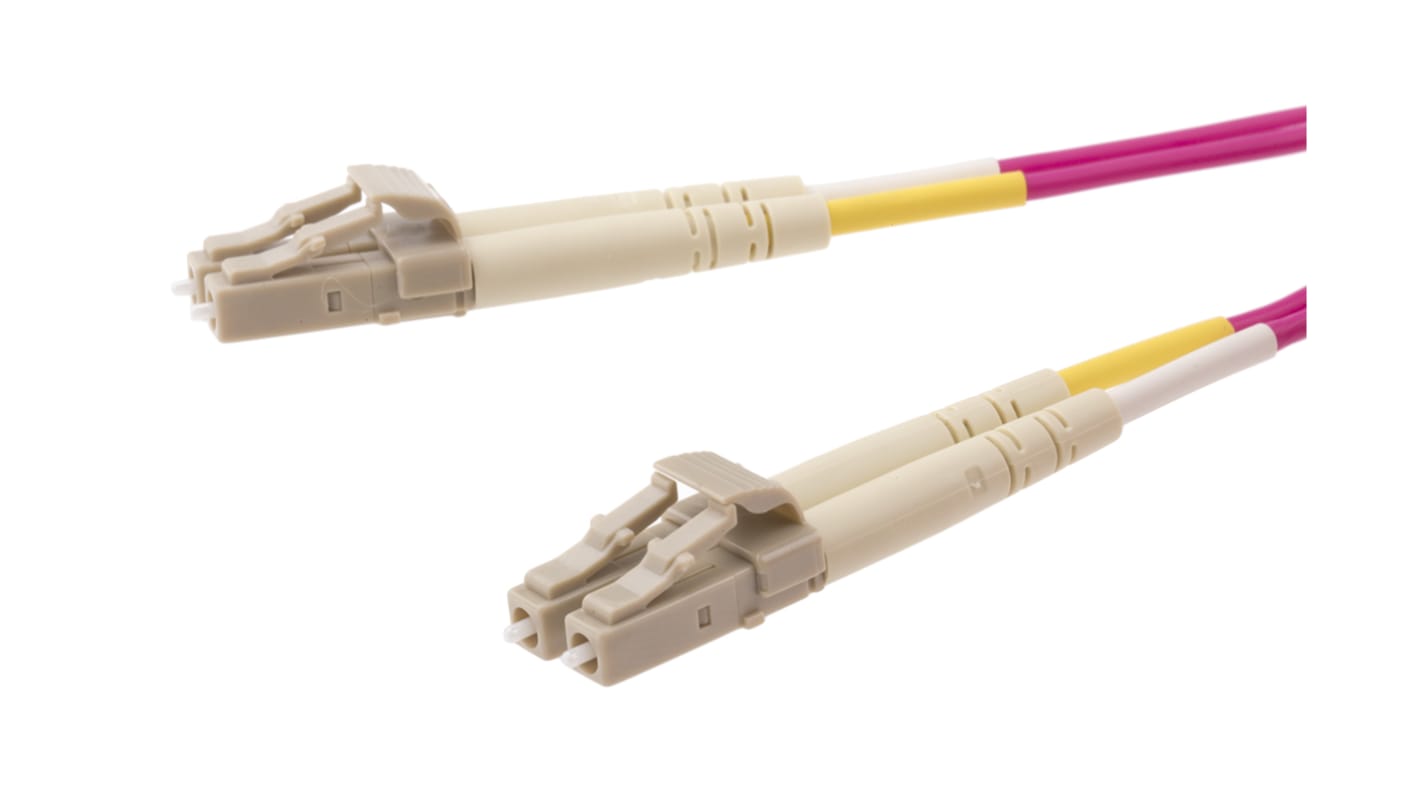

RS PRO LC to LC Duplex Multi Mode OM4 Fibre Optic Cable, 900μm, Violet, 1m

RS Stock No.:: 121-3903
Manufacturer:: RS PRO

RS PRO LC to LC Duplex Multi Mode OM4 Fibre Optic Cable, 900μm, Violet, 1m

Temporarily out of stock - back order for despatch 23/05/2024, delivery within 4 working days from despatch date

Added

Price Each

MYR88.64

Units	Per Unit
1 - 4	MYR88.64
5 +	MYR72.94

RS Stock No.:: 121-3903
Manufacturer:: RS PRO

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

RS Pro Duplex LC-LC OM4 Fibre Optic Patchcords

From the trusted RS Pro brand, a series of LC- LC fibre optic cable assemblies. These superior quality cable assemblies are designed to connect high speed and legacy networks like 10/40/100 Gbit Ethernet and Ethernet. These multimode fibre patch cords have a core fibre size of 50/125 and are terminated with standard LC connectors at each end providing maximum optical performance. The OM4 duplex cables in this range have LSZH violet or aqua jackets and come in various lengths.

Features and Benefits

Low smoke zero halogen
900um / 600um tight buffer
REACH and RoHS material compliant
High optical performance

Applications

Data centres
Premises cabling in data networks, backbone, riser and horizontal
Supports video, data and voice

Specifications

Attribute	Value
Connector 1	LC
Length	1m
Propagation Mode	Multi Mode
Connector 2	LC
Terminated/Unterminated	Terminated
Core Diameter	900µm
Sheath Colour	Violet
Cable Construction	Duplex
Fibre Type	OM4
Maximum Operating Temperature	+60°C
Sheath Material	Low Smoke Zero Halogen (LSZH)
Attenuation	0.8 dB
Minimum Operating Temperature	-20°C
Standards Met	2011/65/EU, EIA-TIA, IEC, IEC 61300-2-1, IEC 61300-2-12, IEC 61300-2-2, IEC 61300-2-4, IEC 61300-2-5, IEC 61300-3-34, IEC 61300-3-4, IEC 61300-3-6, IEC 61754-20, REACH/SvHC Compliant
