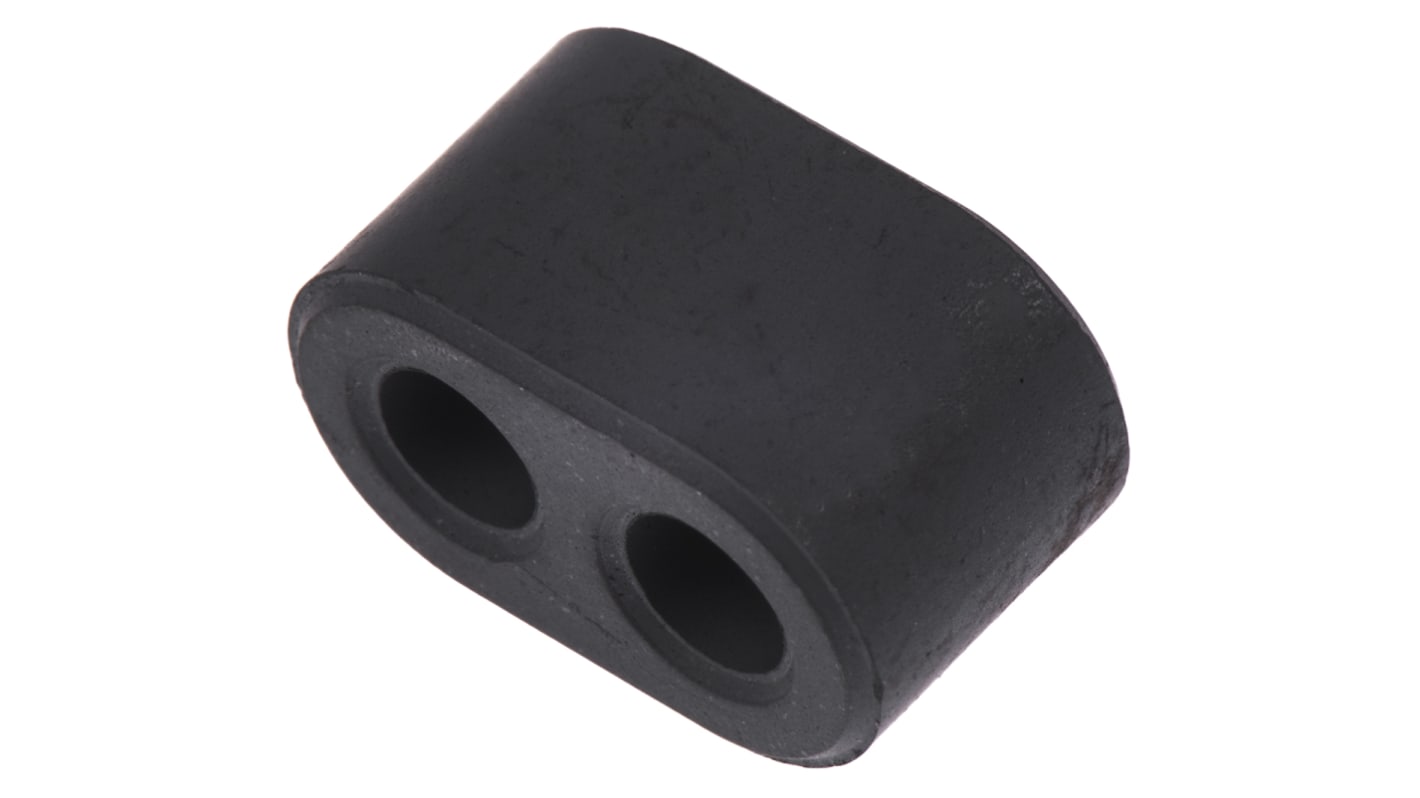

EPCOS No Ferrite Sleeve, 14.5 x 8.5 x 8.3mm, For Broadband Transformers, Apertures: 2, Diameter 3.4mm
- RS Stock No.:
- 212-0594
- Mfr. Part No.:
- B62152A0004X001
- Manufacturer:
- EPCOS
100 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 5)
MYR12.122
| Units | Per Unit | Per Pack* |
| 5 - 245 | MYR12.122 | MYR60.61 |
| 250 - 495 | MYR11.87 | MYR59.35 |
| 500 + | MYR11.512 | MYR57.56 |
| *price indicative | ||
- RS Stock No.:
- 212-0594
- Mfr. Part No.:
- B62152A0004X001
- Manufacturer:
- EPCOS
Technical data sheets
Legislation and Compliance
Product Details
Dual-Aperture Cores
Double aperture cores suitable for broadband transformers up to high frequencies.
N30 material for low frequencies and pulse applications
K1 material for matching transformers and balancing mixers up to 250MHz in antenna feeders or input circuits of VHF and TV receivers.
K1 material for matching transformers and balancing mixers up to 250MHz in antenna feeders or input circuits of VHF and TV receivers.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Type | Multi Aperture Core |
| Series | B62152 |
| Application | Broadband Transformers |
| Material | K1 |
| Key | No |
| Impedance at 25 MHz | 156Ω |
| Openable | No |
| Impedance at 100 MHz | 260Ω |
| Outer Dimensions | 14.5 x 8.5 x 8.3mm |
| Aperture Diameter | 3.4mm |
| Number of Apertures | 2 |
| Outer Depth | 8.5mm |
| Outer Height | 8.3mm |
| Outer Width | 14.5mm |
