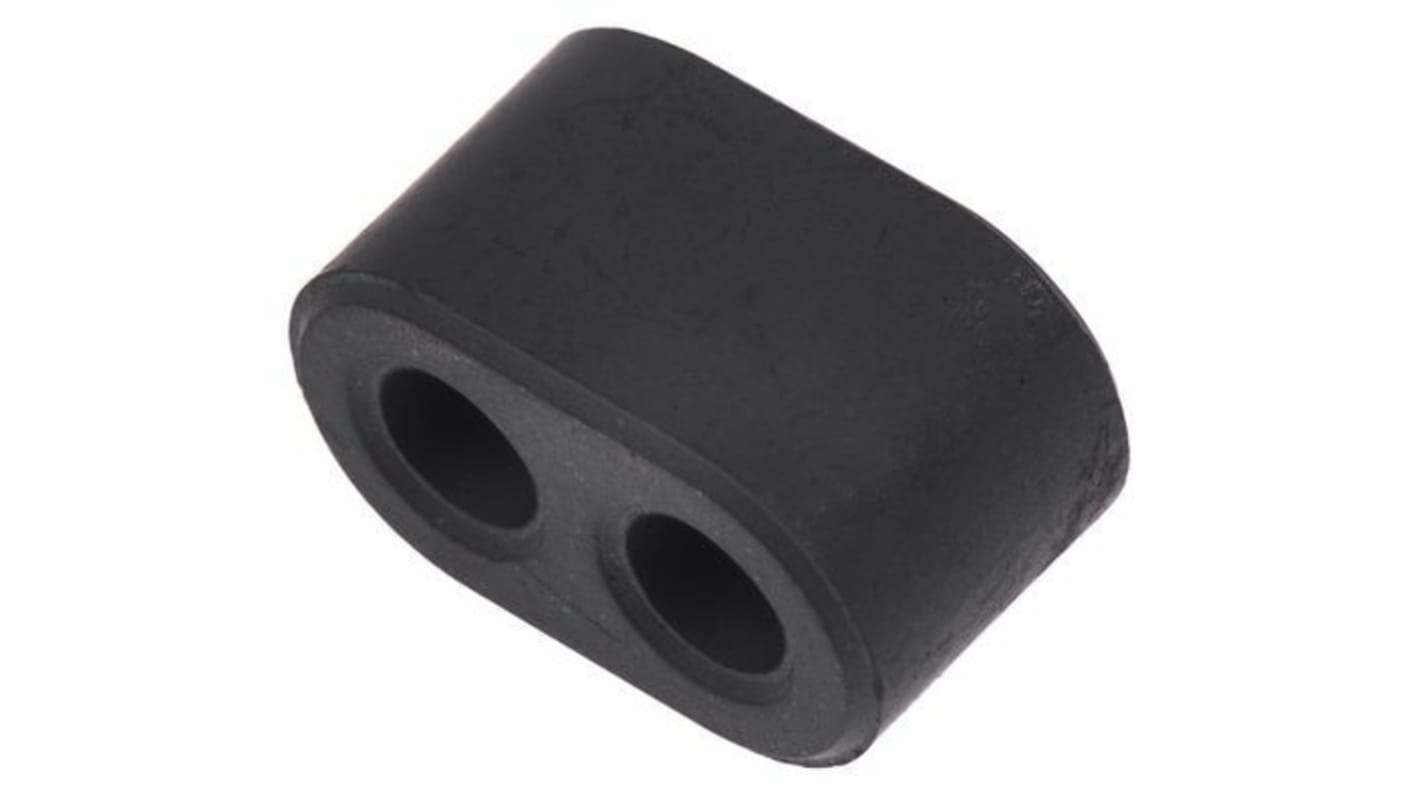

EPCOS No Dual Aperture Ferrite Core, 14.5 x 8.5 x 14.5mm, For Broadband Transformers, Apertures: 2, Diameter 3.4mm
- RS Stock No.:
- 162-0153
- Mfr. Part No.:
- B62152A0001X001
- Manufacturer:
- EPCOS
Temporarily out of stock - back order for despatch 05/08/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Box of 500)
MYR7.742
| Units | Per Unit | Per Box* |
| 500 - 500 | MYR7.742 | MYR3,871.00 |
| 1000 - 1500 | MYR7.572 | MYR3,786.00 |
| 2000 + | MYR7.432 | MYR3,716.00 |
| *price indicative | ||
- RS Stock No.:
- 162-0153
- Mfr. Part No.:
- B62152A0001X001
- Manufacturer:
- EPCOS
Technical data sheets
Legislation and Compliance
Product Details
Dual-Aperture Cores
Double aperture cores suitable for broadband transformers up to high frequencies.
N30 material for low frequencies and pulse applications
K1 material for matching transformers and balancing mixers up to 250MHz in antenna feeders or input circuits of VHF and TV receivers.
K1 material for matching transformers and balancing mixers up to 250MHz in antenna feeders or input circuits of VHF and TV receivers.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Type | Double Aperture Core |
| Series | B62152 |
| Application | Broadband Transformers |
| Material | K1 |
| Key | No |
| Openable | No |
| Outer Dimensions | 14.5 x 8.5 x 14.5mm |
| Aperture Diameter | 3.4mm |
| Number of Apertures | 2 |
| Outer Depth | 8.5mm |
| Outer Height | 14.5mm |
| Outer Width | 14.5mm |
