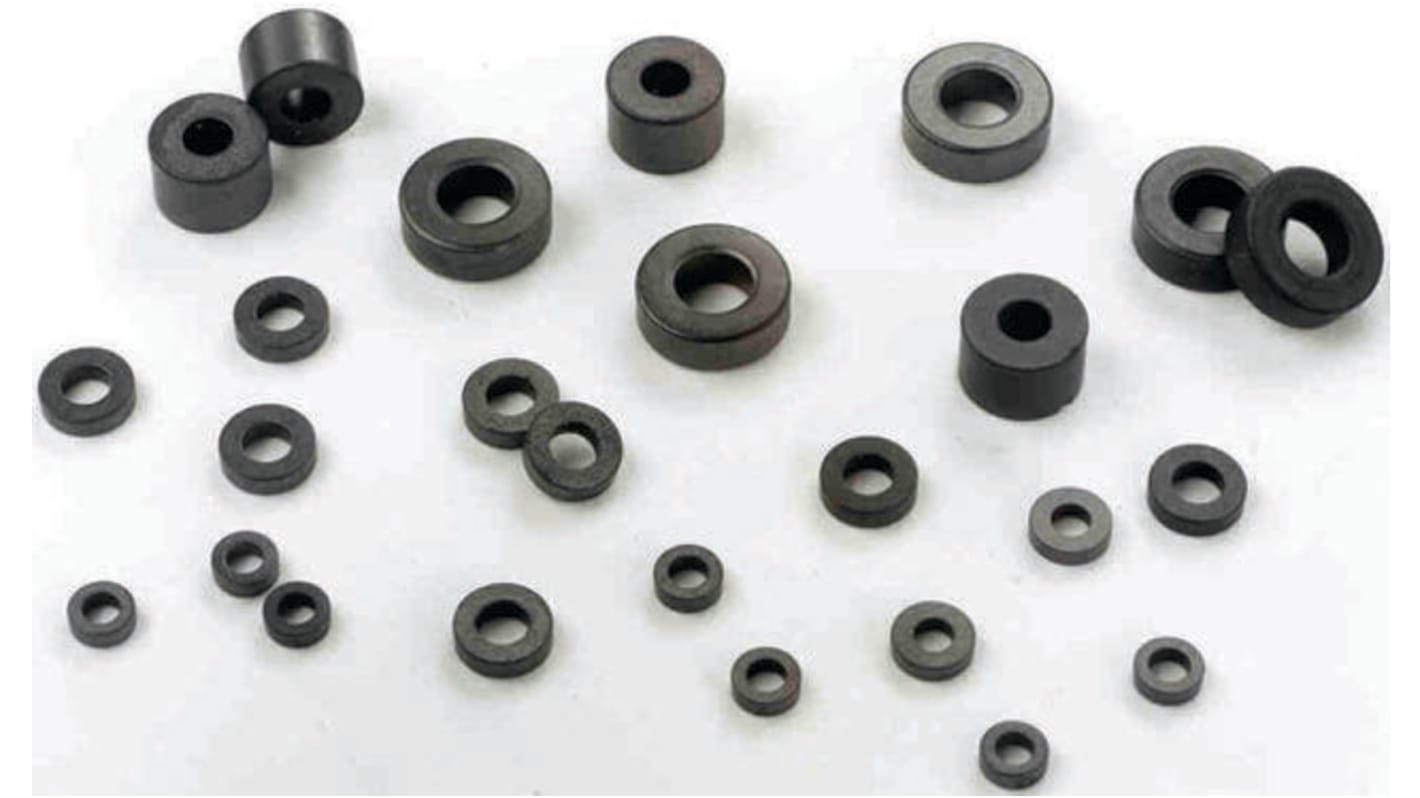

Fair-Rite Ferrite Ring Toroid Core, For: Inductive Component, 21 (Dia.) x 6.35mm
- RS Stock No.:
- 467-4138
- Mfr. Part No.:
- 5943000601
- Manufacturer:
- Fair-Rite
90 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 10)
MYR4.562
| Units | Per Unit | Per Pack* |
| 10 - 40 | MYR4.562 | MYR45.62 |
| 50 + | MYR4.426 | MYR44.26 |
| *price indicative | ||
- RS Stock No.:
- 467-4138
- Mfr. Part No.:
- 5943000601
- Manufacturer:
- Fair-Rite
Technical data sheets
Legislation and Compliance
Product Details
NiZn Cores
Only recommended for common mode inductor applications
Ring configuration optimises ferrite material properties
Cores are supplied burnished to remove sharp edges
AL values tested at 10kHz and <10 gauss
Ring configuration optimises ferrite material properties
Cores are supplied burnished to remove sharp edges
AL values tested at 10kHz and <10 gauss
Note
Line drawing dimensions: A=diameter; B=internal diameter; C=height
Specifications
Attribute | Value |
|---|---|
| Type | Toroid Core |
| Dimensions | 21 (Dia.) x 6.35mm |
| Application | Inductive Component |
| Material | 43 Material |
| Diameter | 21mm |
| Height | 6.35mm |
| Inner Diameter | 13.2mm |
| Outer Diameter | 21mm |
