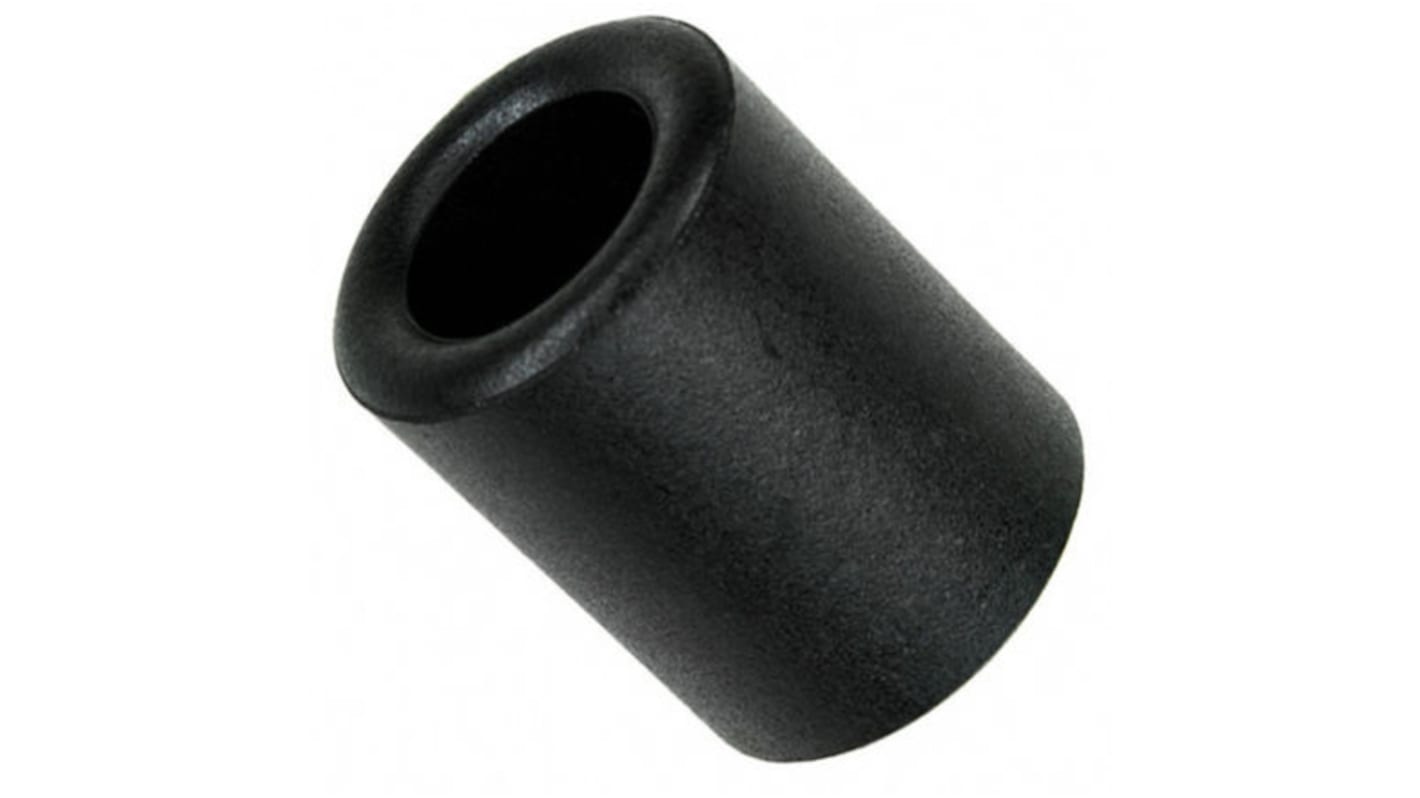

Wurth Elektronik Ferrite Ring Axial Ferrite Bead, For: Coaxial Cable, Multiconductor Wire, Wires, Wire-Wrapping Cable

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Ferrite Sleeves

Applications

Wurth Elektronik axial ferrite rings fit over the cable, absorbing energy emitted by cables without affecting the transmitted data. These ferrite rings can be fixed on the cable by using heat shrink sleeving. Attenuation is better than ferrite rings owing to the increased ferrite level, and is increased by threading the cable through several times

Wires
Coaxial cable
Twisted-pair Cabling
Multicore cable

Specifications
Attribute Value
Type Axial Ferrite Bead
Dimensions 16 x 8 x 16mm
Application Coaxial Cable, Multiconductor Wire, Wire-Wrapping Cable, Wires
Material 3 W 800
Height 16mm
Inner Diameter 8mm
Outer Diameter 16mm
3160 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 5)
MYR 8.202
units
Per unit
Per Pack*
5 - 70
MYR8.202
MYR41.01
75 - 495
MYR7.616
MYR38.08
500 - 2495
MYR7.124
MYR35.62
2500 - 4995
MYR6.18
MYR30.90
5000 +
MYR5.618
MYR28.09
*price indicative
