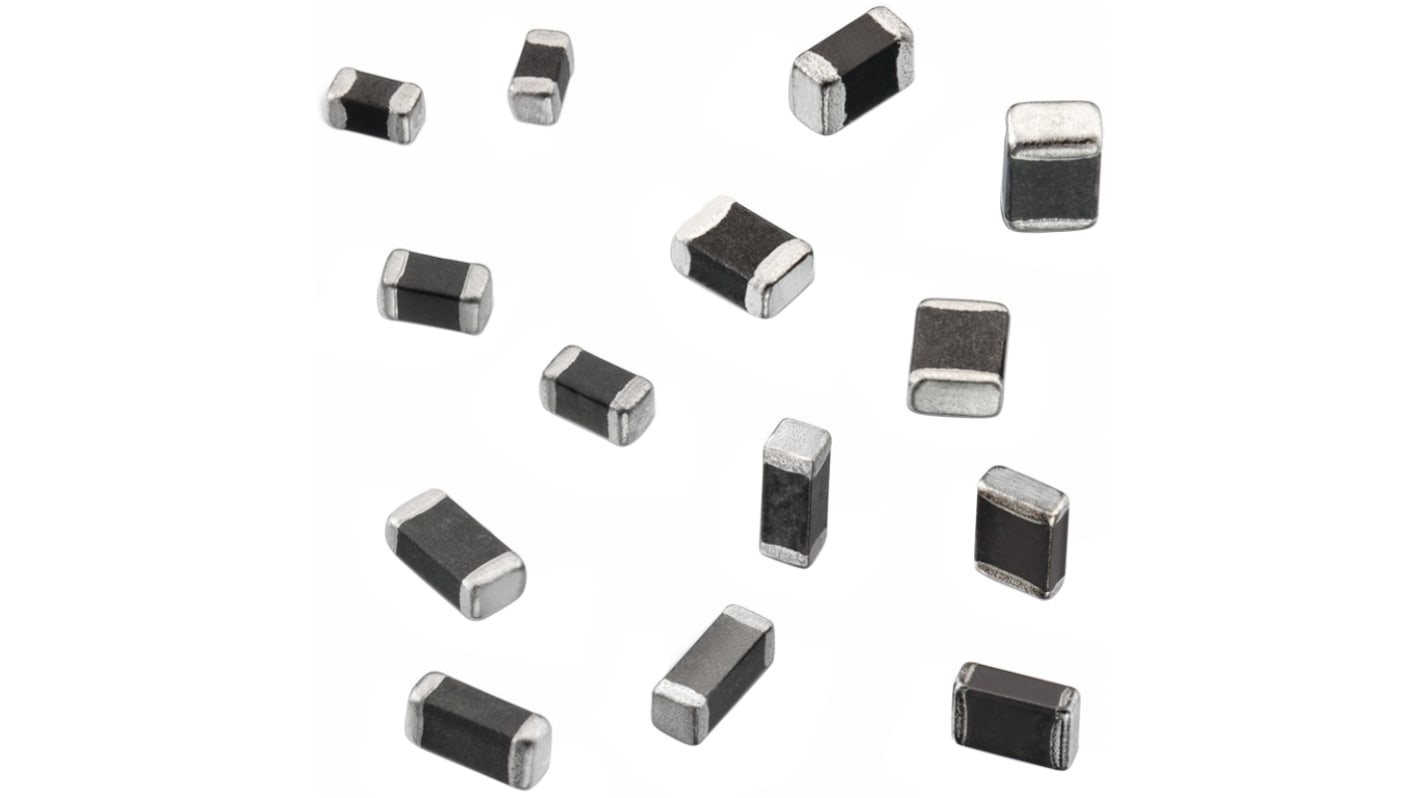

Wurth Elektronik Ferrite Bead, 4.5 x 1.6 x 1.6mm (1806), 60Ω impedance at 100 MHz, 120Ω impedance at 1 GHz

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

High-Speed Multilayer Ferrite SMD - WE-CBF Series

Excellent anti-EMI properties and low DC resistance
Placed very close next to the interference source even with smallest size 0402, maximum impedance 1000Ω
Reliable Ni-Sn electrodes
Ideal for data line filtering and voltage de-coupling
High rated current up to 6A
Recommended for reflow soldering

Applications:

High Speed: USB 2.0, IEEE 1394, LVDS
Wide Band: Control signals, RS232, RS422, DC/DC converter, etc.
High Current: Current supply, DC/DC converter etc.

Reliable Ni-Sn electrodes
High rated current up to 6 A
Operating temperature: –55 ºC to +125 ºC
Perfect as data line filter and for uncoupling of distribution voltage

Specifications
Attribute Value
Package Type 1806
Impedance at 100 MHz 60Ω
Impedance at 1 GHz 120Ω
Current Rating 6A
Type Ferrite Bead
Dimensions 4.5 x 1.6 x 1.6mm
Length 4.5mm
Depth 1.6mm
Height 1.6mm
Series WE-CBF
Material Ferrite
Application Anti EMI, Control Signals, DC/DC Converter, Fast Bus Signals, HDD, High Current, High Frequency, High Speed, Line Filter, LVDS, Power Supply, RS232, RS422, USB 2.0
