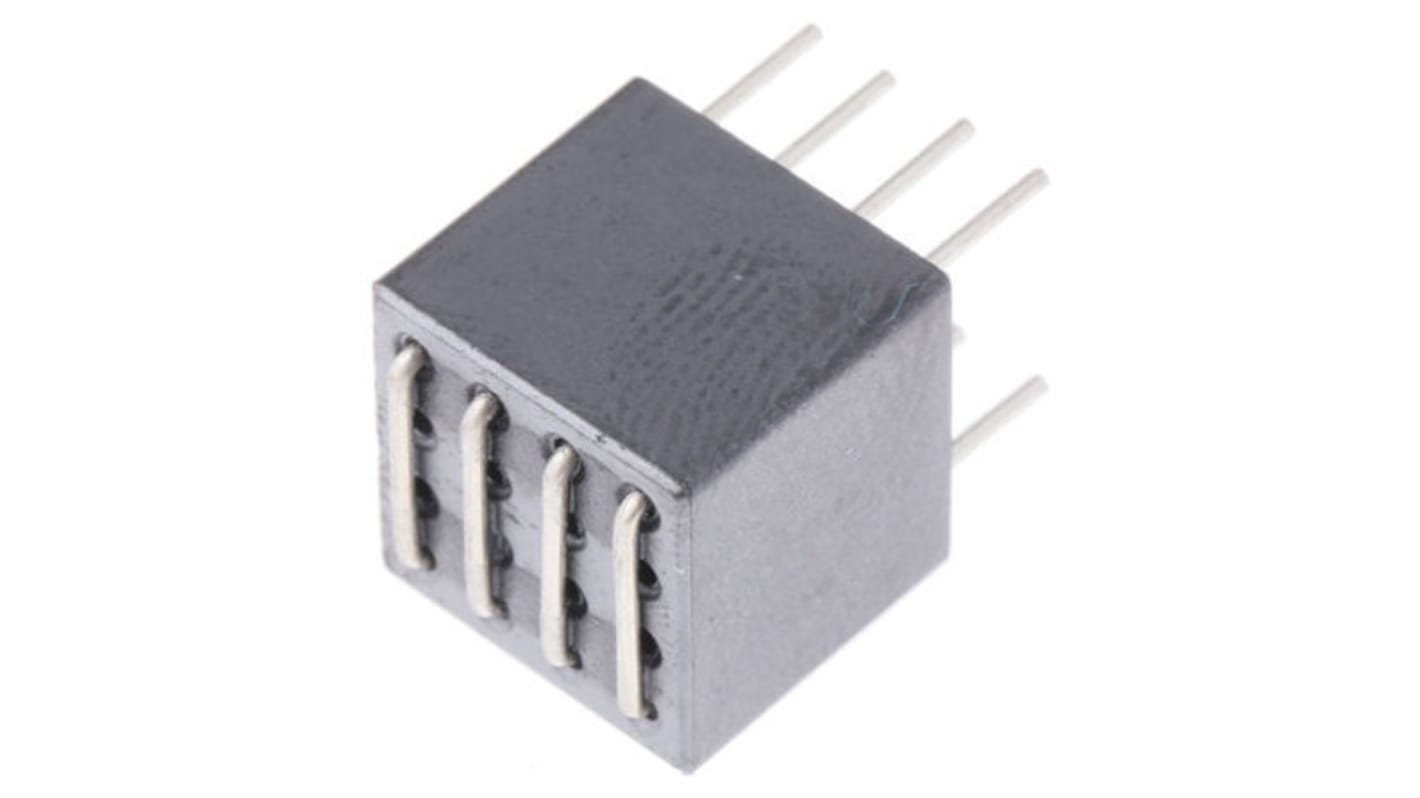

Wurth Elektronik Ferrite Bead (EMI Suppression), 10.88 x 5.49 x 10mm (Radial), 209Ω impedance at 25 MHz, 249Ω impedance
- RS Stock No.:
- 124-1516
- Mfr. Part No.:
- 74273002
- Manufacturer:
- Wurth Elektronik
4110 In Global stock for delivery in 4-6 working days for West Malaysia, 5-8 working days for Free Trade Zone, and 7-10 working days for East Malaysia.
Price Each (In a Pack of 10)
MYR4.841
units | Per Unit | Per Pack* |
10 - 290 | MYR4.841 | MYR48.41 |
300 - 990 | MYR4.739 | MYR47.39 |
1000 - 4990 | MYR4.596 | MYR45.96 |
5000 - 9990 | MYR4.483 | MYR44.83 |
10000 + | MYR4.385 | MYR43.85 |
*price indicative |
- RS Stock No.:
- 124-1516
- Mfr. Part No.:
- 74273002
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Triple/Quadruple EMC Interference Suppression Chokes, Ferrite Bridges
Interference suppression chokes with NiZn ferrite interference suppression core
Ideal for absorption of common-mode and series-mode interference in the EMC range
The impedance (e.g. 4 windings) or current (parallel connection) can be increased depending on the layout
Single use applies a power-compensated triple or quadruple choke to the signal
A double power-compensated choke can be achieved by wiring with 2x2 windings
High current carrying capacity of typically 4A
Wideband filter effect due to NiZn absorber ferrite core
HF common-mode choke for 2, 3 or 4 wires in one component
Compact design
Ideal for absorption of common-mode and series-mode interference in the EMC range
The impedance (e.g. 4 windings) or current (parallel connection) can be increased depending on the layout
Single use applies a power-compensated triple or quadruple choke to the signal
A double power-compensated choke can be achieved by wiring with 2x2 windings
High current carrying capacity of typically 4A
Wideband filter effect due to NiZn absorber ferrite core
HF common-mode choke for 2, 3 or 4 wires in one component
Compact design
Applications:
EMC filter in the range of common-mode and series-mode interference, wideband power supply filter. Data or measuring signal filter for RS-232, sensor inputs etc.
EMC filter in the range of common-mode and series-mode interference, wideband power supply filter. Data or measuring signal filter for RS-232, sensor inputs etc.
Specifications
Attribute | Value |
---|---|
Package Type | Radial |
Impedance at 25 MHz | 209Ω |
Impedance at 100 MHz | 249Ω |
Current Rating | 4A |
Type | EMI Suppression |
Dimensions | 10.88 x 5.49 x 10mm |
Length | 10.88mm |
Depth | 5.49mm |
Height | 10mm |
Series | WE-MLS |
Material | Ferrite |
Application | 4-Line Sensor, Battery Chargers, EMI Suppression, Low Voltage Power Supply, Multi Conductor Systems, Power Electronics |
