Fan Filter, Fan Mounted 226 x 190mm, for 172 x 150mm Fan PC, Synthetic Fibre

  • RS Stock No. 507-898
  • Mfr. Part No. PMFA160
  • Manufacturer ebm-papst
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

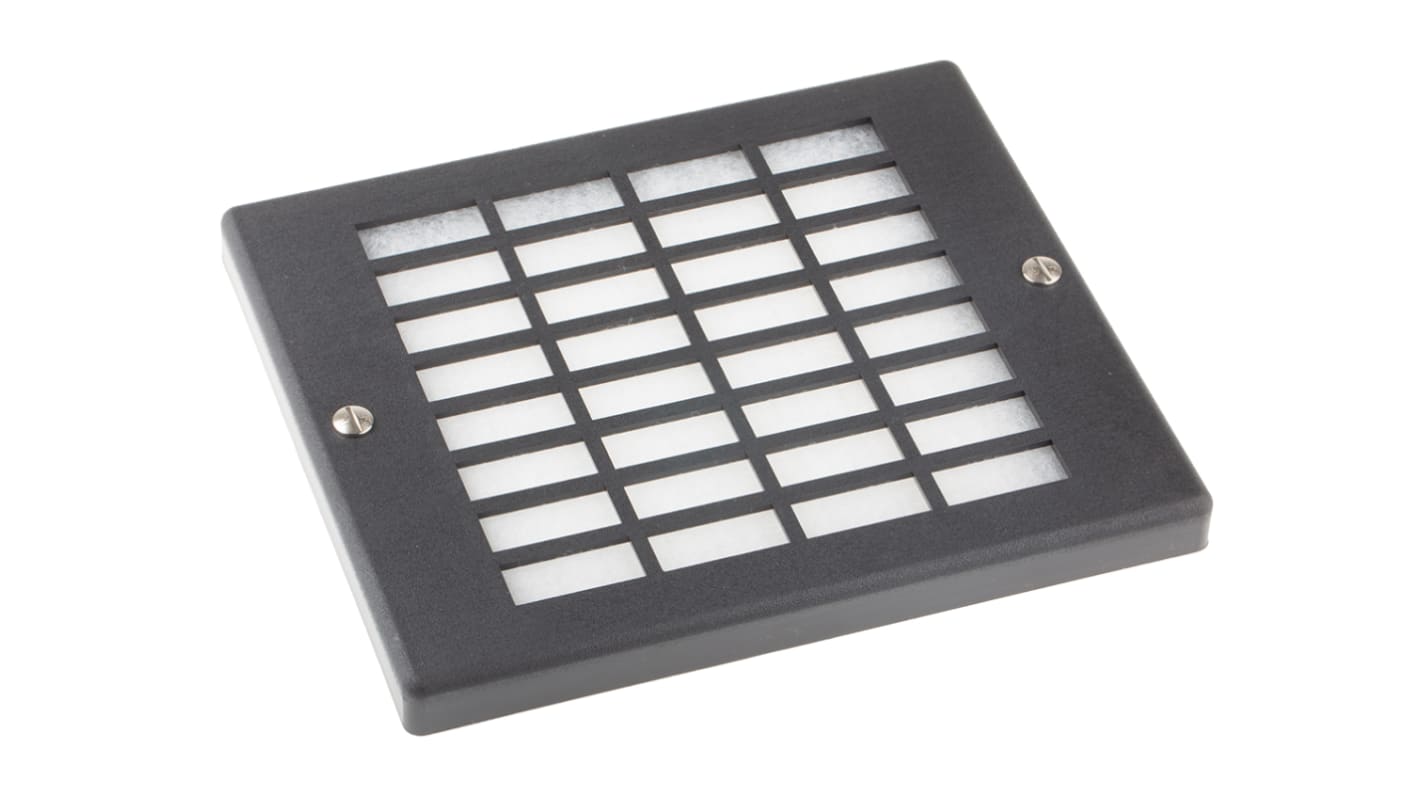

ebm-papst Fan Filter Assembly

The ebm-papst fan filter assembly consists of an outer grill cover, an inner fixing plate and a filter pad. The grill cover is made of polycarbonate with matt finish that helps easy changing of filter pad. The inner fixing plate is constructed of steel sheet with a matt black epoxy powder finish that provides protection when the filter pad is changed with the fan still running. The filter pad achieves 75% retention of dust particles. It is made of white synthetic bonded fibre. The assembly is available with a length of 226mm and width of 190mm. This assembly is suitable for 150mm and 172mm fan size.

Features and Benefits

Tough, durable construction
Quick change filter pad
Utilize existing hole fixing positions on most PAPST fans
Filter pad can be changed without switching off fan
Pad is flame resistant

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Specifications
Attribute Value
Filter Type Fan Mounted Filter
Fan Size 172 x 150mm
Dimensions 226 x 190mm
Thickness 19.5mm
Frame Material Steel
Frame Finish Matt Black
Filter Material PC, Synthetic Fibre
Length 226mm
Width 190mm
62 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR136.20
MYR 91.42
units
Per unit
1 - 9
MYR91.42
10 - 24
MYR84.34
25 - 49
MYR77.95
50 - 99
MYR74.12
100 +
MYR71.85
