Vent-Axia TX12WL T-Series Square Wall Mounted Extractor Fan, Intake, 1745m³/h, 49dB(A), Duct Size 315mm

RS Stock No.:: 272-772
Mfr. Part No.:: TX12WL
Manufacturer:: Vent-Axia

Vent-Axia TX12WL T-Series Square Wall Mounted Extractor Fan, Intake, 1745m³/h, 49dB(A), Duct Size 315mm

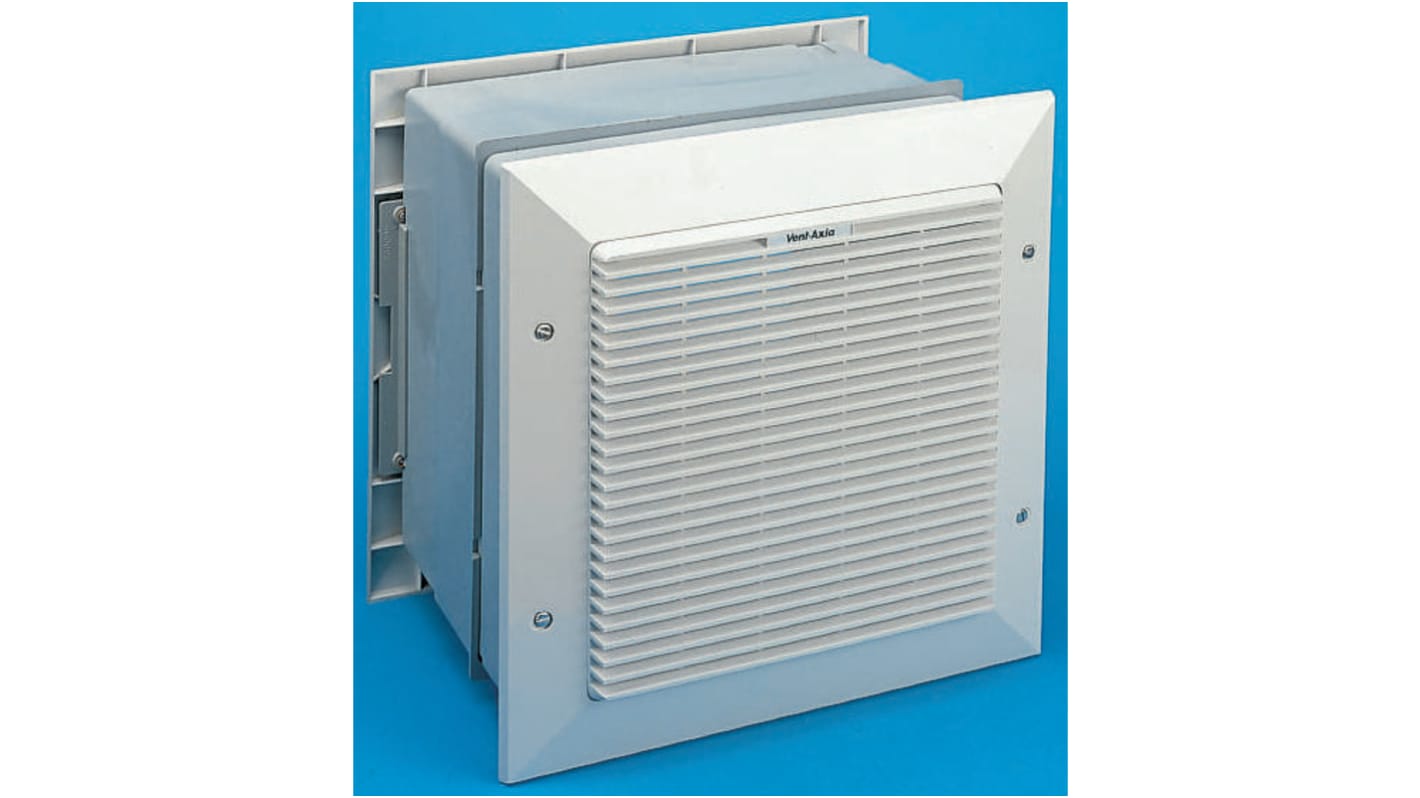

This image is representative of the product range

In Global stock for delivery within 4 - 6 working days

Added

Price Each

MYR9,530.99

Units	Per Unit
1 +	MYR9,530.99

RS Stock No.:: 272-772
Mfr. Part No.:: TX12WL
Manufacturer:: Vent-Axia

Technical data sheets

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: GB

Product Details

Vent-Axia Fan

The Vent-Axia extractor square fan has an airflow of 1745m³/h and supply voltage of 230VAC. It is a high-performance, ventilating unit designed to fit through most wall thickness using telescope liners supplied. It features a unique speed control pack that enables high, medium, or low speed to be pre-set to suit room size or required duty.
This fan is made of weather-resistant polymeric material. It is available with a face height of 467mm, face width of 470mm and depth of 315mm.

Features and Benefits

Wall mount
Noise level of 49dB (A)

Patented electronic shutter system ensures quiet, trouble free operation
Easy fit connector top socket
Can be mounted at any angle
Low density 5 blade impeller

Applications

Bathrooms
Kitchens

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Specifications

Attribute	Value
Function	Extraction, Intake
Fan Type	Extractor
Air Flow	1745m³/h
Noise Level	49dB(A)
Mounting	Wall Mounted
Face Dimensions	467 x 470mm
Depth	315mm
Face Height	467mm
Face Width	470mm
Supply Voltage	230 V ac
Duct Size	315mm
Series	T-Series
Configuration	Square
