- RS Stock No.:
- 821-2936
- Mfr. Part No.:
- MH3101-CAT6
- Manufacturer:
- MH Connectors
51 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
1129 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
Was MYR71.91
You pay
MYR46.74
Units | Per Unit |
1 - 49 | MYR46.74 |
50 - 99 | MYR45.81 |
100 - 249 | MYR44.91 |
250 - 1249 | MYR44.02 |
1250 + | MYR36.23 |
- RS Stock No.:
- 821-2936
- Mfr. Part No.:
- MH3101-CAT6
- Manufacturer:
- MH Connectors
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

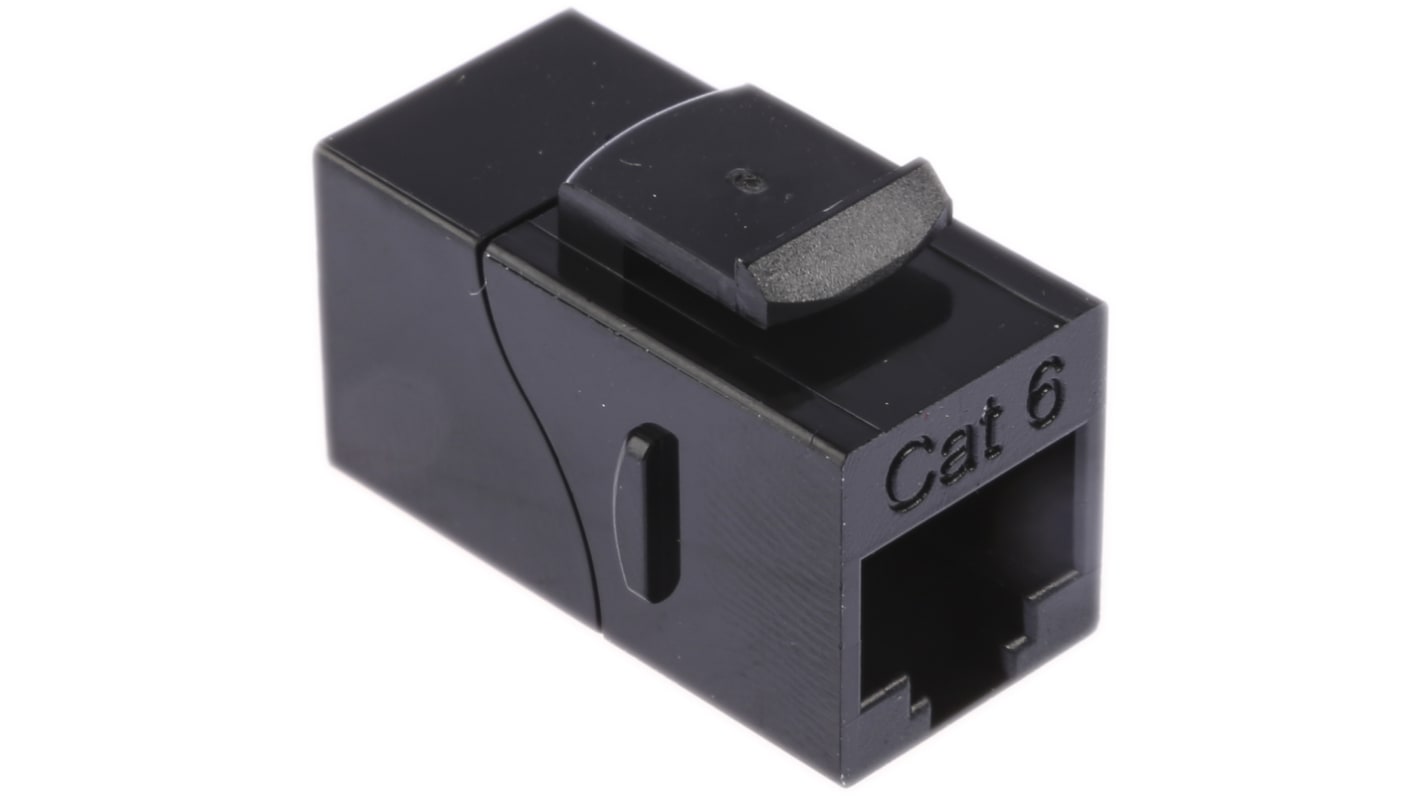

MH Connectors RJ45 Coupler
The MH Connectors MH3101 series Cat6 RJ45 coupler connector is an unshielded, socket adapter. This adapter has an 8p8c pin configuration with one port. Its contact is made from phosphor bronze with gold over nickel plating.
Features and Benefits
Dielectric voltage is 1000VAC
Insulation resistance is 500Mohm
Operating temperature ranging between -10°C and 60°C
Panel mount
Contact resistance is 20mohm
Insulation resistance is 500Mohm
Operating temperature ranging between -10°C and 60°C
Panel mount
Contact resistance is 20mohm
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
UL94 V-0
BS EN 61340-5-1:2007
UL94 V-0
Specifications
Attribute | Value |
---|---|
Type | Coupler |
Interface Type | RJ45 |
LAN Category | Cat6 |
Number of Ports | 1 |
Shield Type | UTP |
Length | 16.6mm |
Width | 16.2mm |
Depth | 29.8mm |
Series | MH3101 |
Series Number | MH3101-CAT6 |
