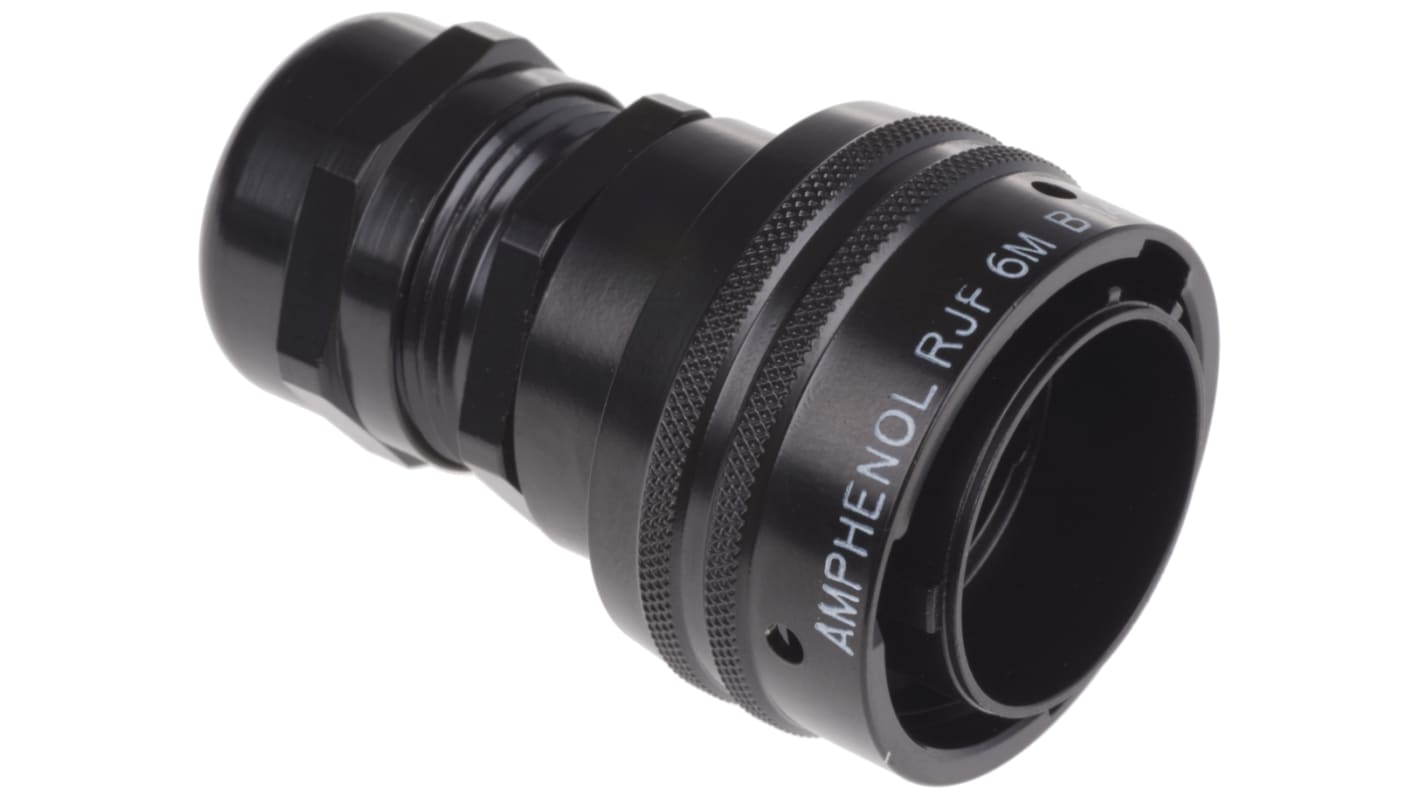

Amphenol, RJF, Male RJ45 Connector

  • RS Stock No. 695-0260
  • Mfr. Part No. RJF6MB
  • Manufacturer Amphenol
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Amphenol RJ45 Connector

The Amphenol RJF series Cat5e female RJ45 connector has a plug shell with a metal gland black coating finish. This RJField allows you to use an Ethernet Cat.5e connection for 10 BaseT, 100 BaseTX or 1000 BaseT networks in harsh environments. This connector is suitable for networking in harsh environments and uses industry-standard RJ45 connectors, protecting them in a rugged metal shell against shock, dust and fluids.

Features and Benefits

Bayonet coupling RJ45 cordset
Excellent quality
Mechanical Coding/Polarization (4 positions)
Sealed against fluids and dust
Mating cycles is 500 minute
Highly reliable
No cabling and tooling required
Compatible cable diameters ranging between 5.5mm and 13mm

Applications

CNC machines
Industrial process control
Oil and gas
Robotics
Tele-maintenance

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP68 rated

Specifications
Attribute Value
Gender Male
Number of Ports 1
Mounting Type Cable Mount
Orientation Straight
Length 57.8mm
Depth 34.9mm
Series RJF
32 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR168.72
MYR 144.39
units
Per unit
1 - 9
MYR144.39
10 - 24
MYR144.08
25 - 49
MYR136.75
50 - 99
MYR136.47
100 +
MYR136.16
