- RS Stock No.:
- 452-6922
- Mfr. Part No.:
- RJF54421
- Manufacturer:
- Amphenol Socapex
16 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
98 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR157.97
Units | Per Unit |
1 - 14 | MYR157.97 |
15 - 24 | MYR154.64 |
25 + | MYR149.99 |
- RS Stock No.:
- 452-6922
- Mfr. Part No.:
- RJF54421
- Manufacturer:
- Amphenol Socapex
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Product Details

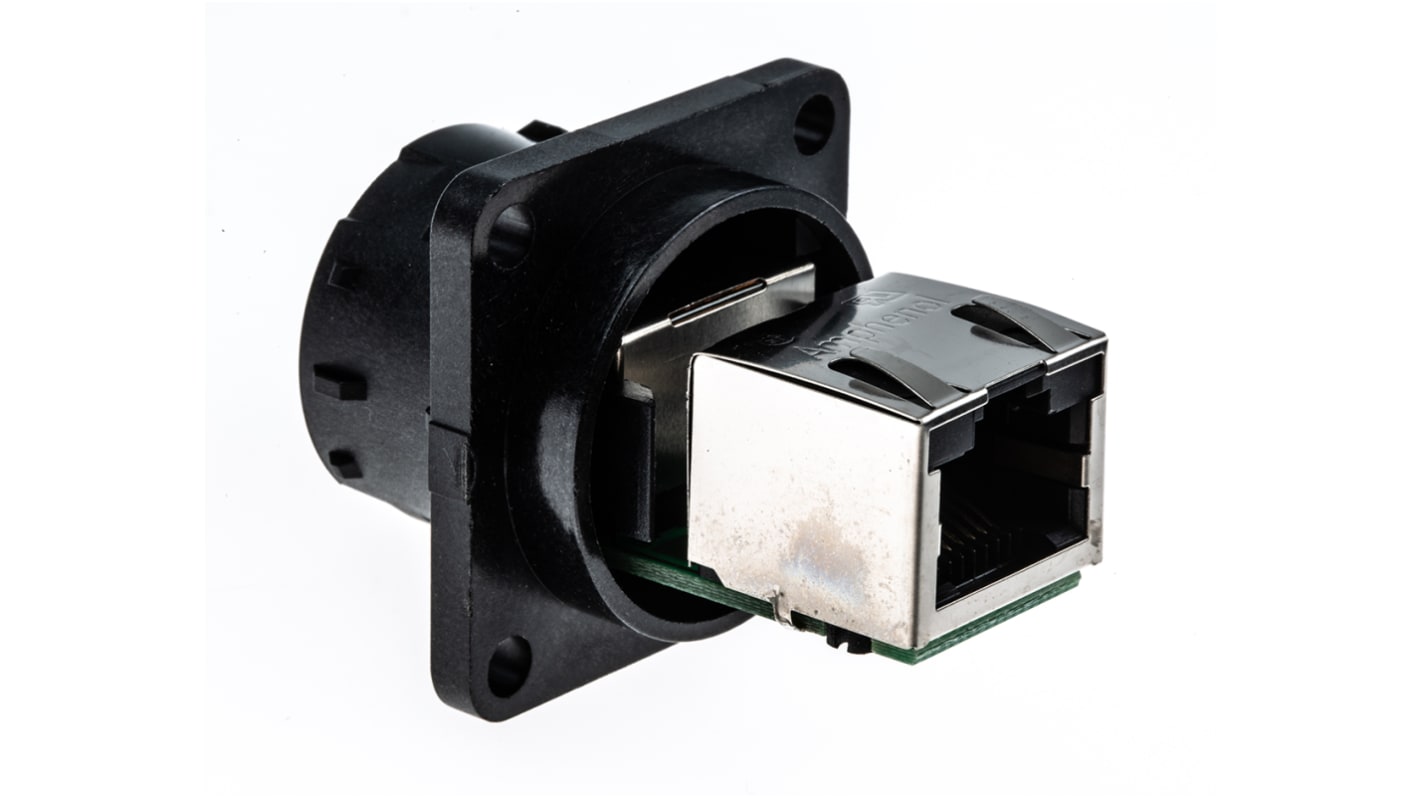

Amphenol RJ45 Connector
The Amphenol RJF 544 series Cat5e female RJ45 connector is a panel-mount unshielded plug. This square flange receptacle has a quick user-friendly push-pull coupling mechanism. This RJField allows you to use an Ethernet Class D/Cat.5e connection for 10 BaseT, 100 BaseTX or 1000 BaseT networks in harsh environments. This RJ45 plug protector can be installed without any tools or wiring operations.
Features and Benefits
Operating temperature ranging between -40°C and 85°C
Orientation is straight
Sealed against fluids and dust
Shock, vibration and traction resistant
Orientation is straight
Sealed against fluids and dust
Shock, vibration and traction resistant
Applications
CNC machines
Industrial process control
Robotics
Special machines
Video control/CCTV
Wireless base stations and access points
Industrial process control
Robotics
Special machines
Video control/CCTV
Wireless base stations and access points
Certifications
DIN 5510-2
IP48 rated
NF F 16-102
UL94 V0
IP48 rated
NF F 16-102
UL94 V0
Specifications
Attribute | Value |
---|---|
Gender | Female |
Ethernet Connector Type | RJ45 Connector |
LAN Category | Cat5e |
Mounting Type | Panel Mount |
Number of Ports | 1 |
Number of Ways | 8 |
Shield Type | Unshielded |
Orientation | Straight |
IP Rating | IP68 |
Length | 42mm |
Depth | 31mm |
Series Number | RJF544 |
Series | RJF544 |
Contact Material | Copper Alloy |
Contact Plating | Gold |
